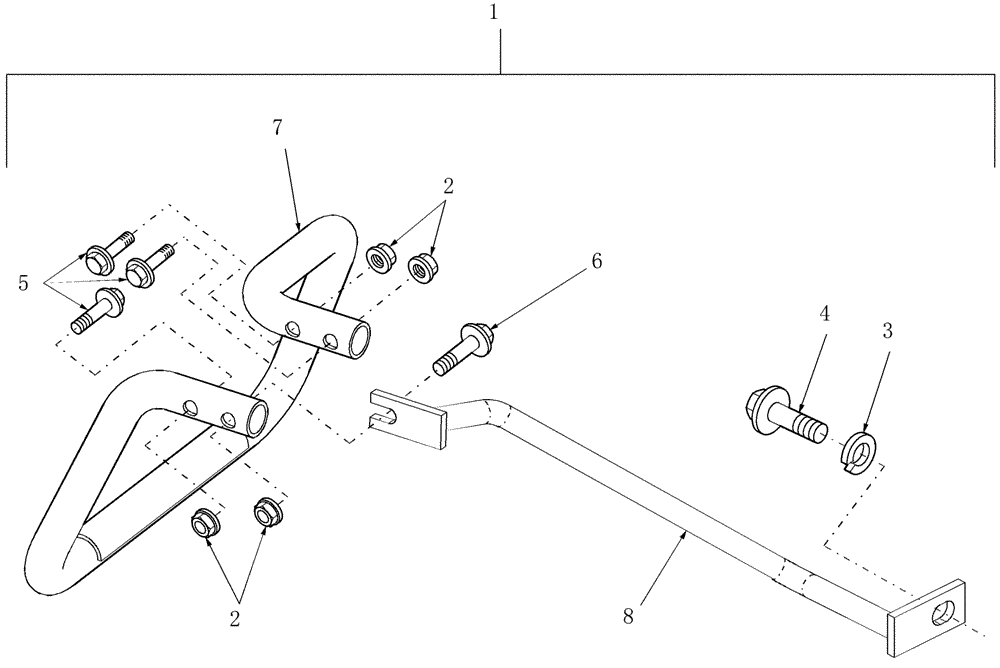

Запчасти Case IH DX25 (07N01) - KIT, STEP, RIGHT & LEFT (03) - TRANSMISSION

1

718709056

DIA KIT, ADD PROD

Kit, Right Side Step Includes: Ref. 2 thru 8

1шт.

OW - Order Thru Wholegoods

1шт.

1

710709026

DIA KIT, ADD PROD

Kit, Left Side Step Includes: Ref. 2 thru 8

1шт.

OW - Order Thru Wholegoods

1шт.

2

832-46410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

3

492-11056

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

4

9516470

BOLT,Hex, M14 x 1.5 x 30mm, Cl 8.8

Screw, Cap, HH, CL 8.8, M14 x 1.5 x 30

1шт.

5

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

6

844-10050

BOLT,Hvy Hex, M10 x 50mm, Cl 8.8

HH, CL 8.8, M10 x 1.5 x 50

1шт.

7

NSS

NOT SOLD SEPARAT

Step, R.H.

1шт.

7

NSS

NOT SOLD SEPARAT

Step, L.H.

1шт.

8

NSS

NOT SOLD SEPARAT

Support, R.H. Step

1шт.

8

NSS

NOT SOLD SEPARAT

Support, L.H. Step

1шт.
