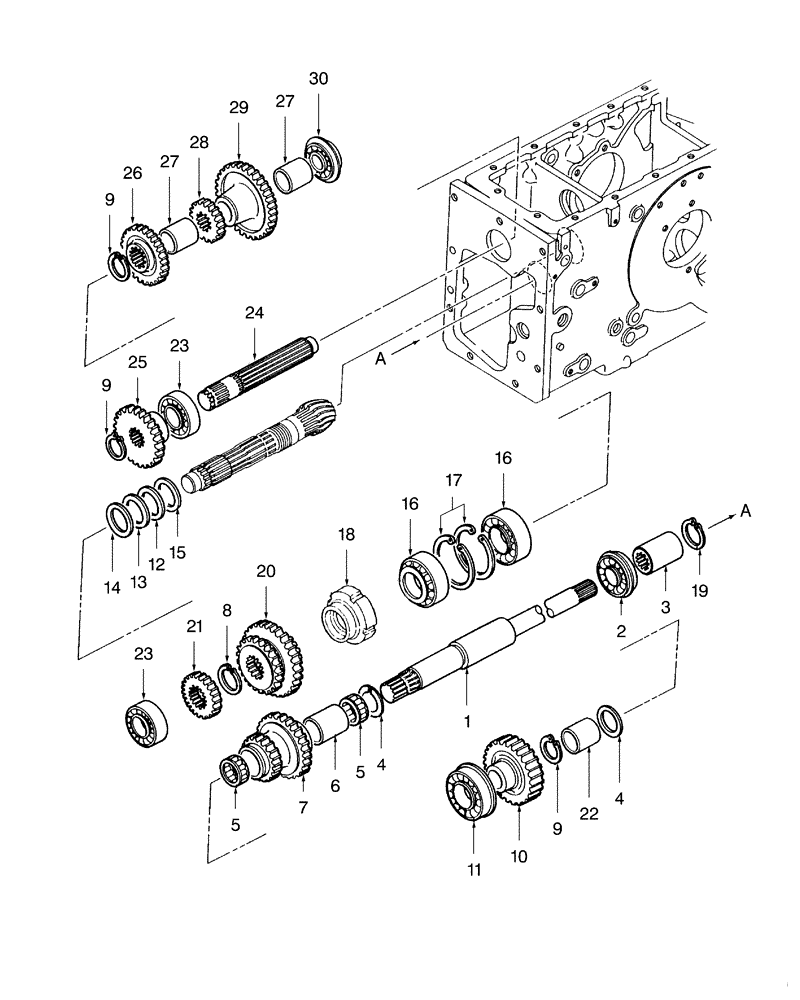

Запчасти Case IH DX25 (07F02) - REAR TRANSMISSION GEARS, W/HST (03) - TRANSMISSION

1

SBA322570822

COUNTERSHAFT

PTO

1шт.

2

SBA040109051

BALL BEARING

Bearing, Ball

1шт.

3

SBA322611090

COUPLING

16 Spline

1шт.

4

SBA399260861

THRUST WASHER

Washer, Thrust, W/FWD

2шт.

5

SBA042209028

NEEDLE BEARING

BEARING, NEEDLE, W/FWD

2шт.

6

SBA399233711

COLLAR

W/4WD

1шт.

7

SBA322381361

GEAR

Counter B, W/FWD

1шт.

8

SBA036100028

SNAP RING

Ring, Snap

2шт.

9

370002

CIRCLIP,M25, External

Ring, Snap, Ext, M25, CS025

3шт.

10

SBA322323731

GEAR

Fixing A

1шт.

11

SBA040156007

BALL BEARING,35mm ID x 62mm OD x 14mm W

Bearing, Ball

1шт.

12

SBA199280490

SHIM,0.5mm Thk

(.020") 0.5mm Thk

1шт.

13

SBA199281220

SHIM,0.2mm Thk

1шт.

14

SBA199281210

SHIM,0.1mm Thk

1шт.

15

SBA199260040

THRUST WASHER

Washer, Thrust

1шт.

16

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

BEARING, ROLLER, TAPERED

2шт.

17

370012

RING,M62, Internal

Snap, Int, M62

2шт.

17

370012

RING,M62, Internal

Snap, Int, M62

1шт.

Used With SBA322017562 Casing Assy

1шт.

18

SBA399370760

NUT

1шт.

19

505712

SNAP RING,M20, Int

Ring, Retaining, M20 D

1шт.

20

SBA322360880

GEAR

Slide B

1шт.

21

SBA322323550

GEAR

Fixing A, W/FWD

1шт.

22

SBA399235050

COLLAR

1шт.

23

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

Bearing, Ball

2шт.

24

SBA322520570

MAIN SHAFT

Shaft, Main

1шт.

25

SBA322323720

GEAR

Fixing A

1шт.

26

SBA322323690

GEAR

Fixing A

1шт.

27

SBA399235000

COLLAR

2шт.

28

SBA322323670

GEAR

Fixing A

1шт.

29

SBA322323680

GEAR

Fixing A

1шт.

30

SBA040156204

BALL BEARING,20mm ID x 47mm OD x 14mm W

BEARING, BALL, #6204NR

1шт.
