Запчасти Case IH DX25 (09C02) - THROTTLE CONTROLS, FOOT (02) - FUEL SYSTEM

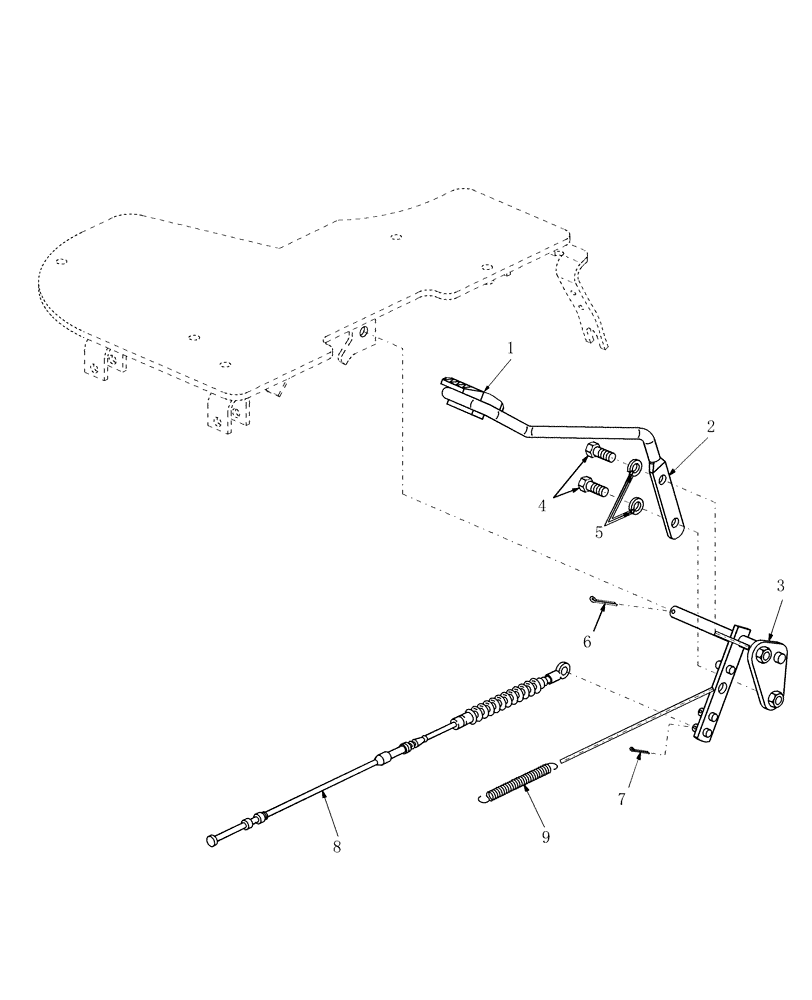

Схема запчастей Case IH DX25 - (09C02) - THROTTLE CONTROLS, FOOT (02) - FUEL SYSTEM
2
6
7
5
9
4
3
8
1

Артикул

Название

Примечание

Количество

1

9821941

RUBBER PEDAL PAD

Pad, Pedal

1шт.

2

86530717

ROD

Foot Accelerator

1шт.

3

86530820

PIVOTING ARM

Assy

1шт.

4

43233

BOLT,Hex, M8 x 1.25 x 20mm, Full Thd, Cl 10.9

HH, CL 10.9, M8 x 1.25 x 20

2шт.

5

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

WASHER, BELLEVILLE, M8

2шт.

6

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

7

280250

COTTER PIN,3/32" OD x 3/4" L

PIN, SPLIT (COTTER), 3/32" x 3/4"

1шт.

8

SBA312070230

CABLE

Foot Throttle

1шт.

9

18

SPRING

Safety Hook

1шт.

Выбрано товаров: 9
