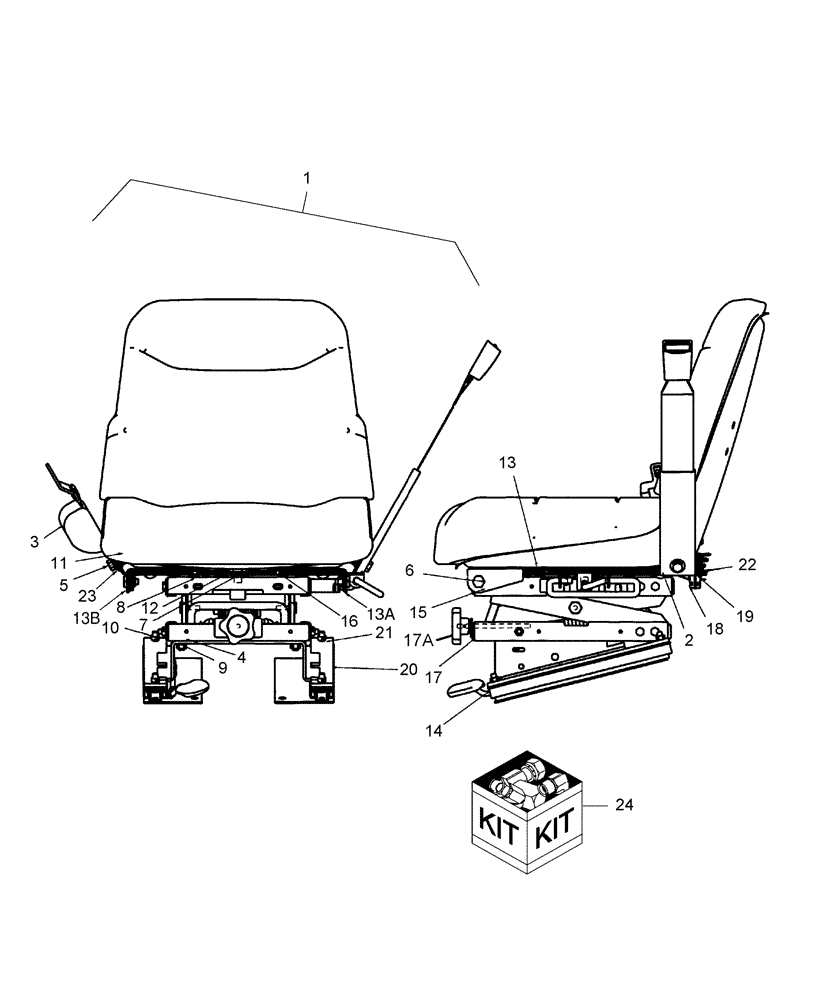

Запчасти Case IH DX25 (13A02) - SEAT, ON & ASN HBA0001480 (16) - SEATS

1

86404609

DRIVER SEAT

Seat, Includes: Ref. 2 thru 23

1шт.

2

86402508

LEAF SPRING ASSY

Includes: Bracket, Pop Rivet & Leaf Spring (Not Illustrated)

1шт.

3

86403923

SAFETY BELT ,48.00 mm W

w/clip 48.00 mm W

1шт.

4

433-612

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

4шт.

5

426-716

BOLT,Hex, 7/16" - 14 x 1", Gr 8

Screw, HH, G8, 7/16"-14 x 1"

2шт.

6

86560540

BOLT

Shoulder, 3/8"-16 x 3/4"

2шт.

7

86560560

BOLT

1шт.

8

86403925

BUTTON

swivel

8шт.

9

232-4146

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

6шт.

10

231-4145

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

4шт.

11

280980

NUT,7/16"-14, GC

NUT, LOCK, 7/16"-14, GC

2шт.

12

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

1шт.

13

86400544

DRIVER SEAT

Seat, Driver

1шт.

14

86403924

SLIDE

package

1шт.

13a

87365968

BRACKET

Tilt, LH

1шт.

15

86560539

SPACER

Plastic

2шт.

13b

87365969

BRACKET

Tilt, RH

1шт.

16

86401230

SPRING

Conical

2шт.

17

86530935

SUSPENSION

1шт.

17a

87301458

KNOB

and Shaft

1шт.

18

86400227

SWITCH,Two Connectors, 90° Terminals

ASSY, Plunger SPST

1шт.

19

86530934

SWIVEL CONNECTION

CONNECTION, SWIVEL, Latch

1шт.

20

86403926

SLIDE

upper, w/mount

1шт.

21

495-21044

WASHER,3/8"

4шт.

22

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

4шт.

23

87363

WASHER,0.47" ID x 0.92" OD x 0.07" Thk

SAE, 7/16"

4шт.

24

718852026

ARMREST

KIT, Includes:

1шт.

(1) ARMREST ASSY, LH

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.
