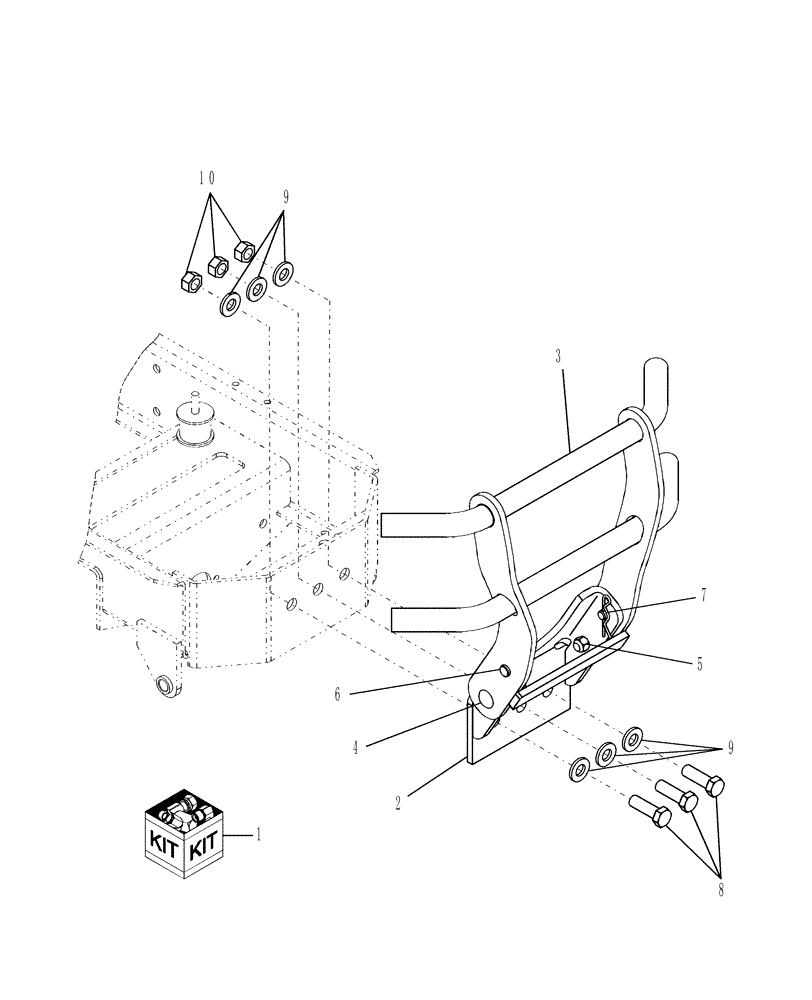

Запчасти Case IH DX24E (08.03) - GRILLE GUARD KIT - 719849076 (08) - SHEET METAL

1

719849076

DIA KIT, TRACTOR

Kit, Grill Guard

1шт.

2

NS

NOT SERVICED

Base Bracket

1шт.

3

NS

NOT SERVICED

Grill Guard

1шт.

4

280420

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5, Full Thd

2шт.

5

86992215

LOCK NUT,1/2"-13, GC

2шт.

6

427-8114

CLEVIS PIN,12.7mm OD x 28.98mm L

2шт.

7

87421748

HAIR PIN COTTER

2шт.

8

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

9

87365

WASHER,0.66" ID x 1.31" OD x 0.1" Thk

3шт.

10

231-41410

NUT,5/8"-11, GB

3шт.
