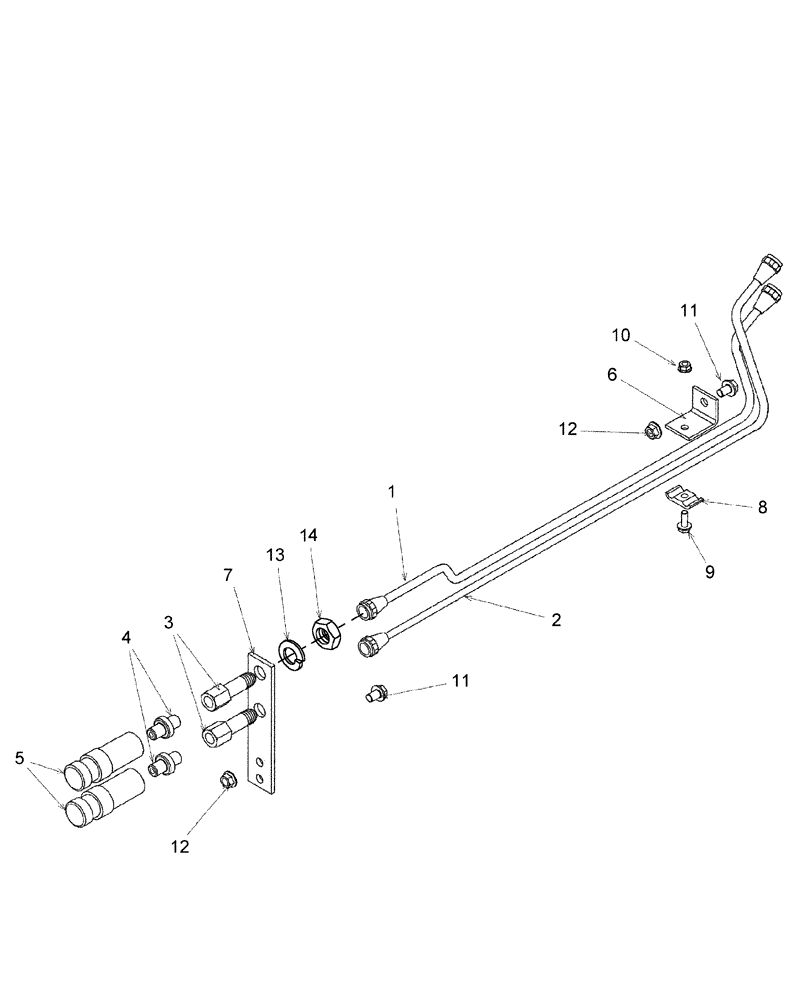

Запчасти Case IH DX24E (07.07) - HYDRAULIC TUBING FOR FRONT MOUNTED COUPLERS - 718447006 (07) - HYDRAULIC SYSTEM

1

SBA340709881

RIGID TUBE

Oil

1шт.

2

SBA340709891

RIGID TUBE

PIPE Oil

1шт.

3

SBA340671381

ADAPTER

2шт.

4

SBA340671970

ADAPTER

2шт.

5

SBA340631590

FITTING

2шт.

6

SBA340820550

PLATE

1шт.

7

SBA340820561

PLATE

Bracket

1шт.

8

SBA399100630

CLAMP

1шт.

9

SBA010800630

BOLT

M6 x 30

1шт.

10

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

1шт.

11

SBA010800820

BOLT

M8 x 20

2шт.

12

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

13

SBA027100014

SPRING

M14

2шт.

14

SBA020800014

NUT,M14 x 1.5

2шт.
