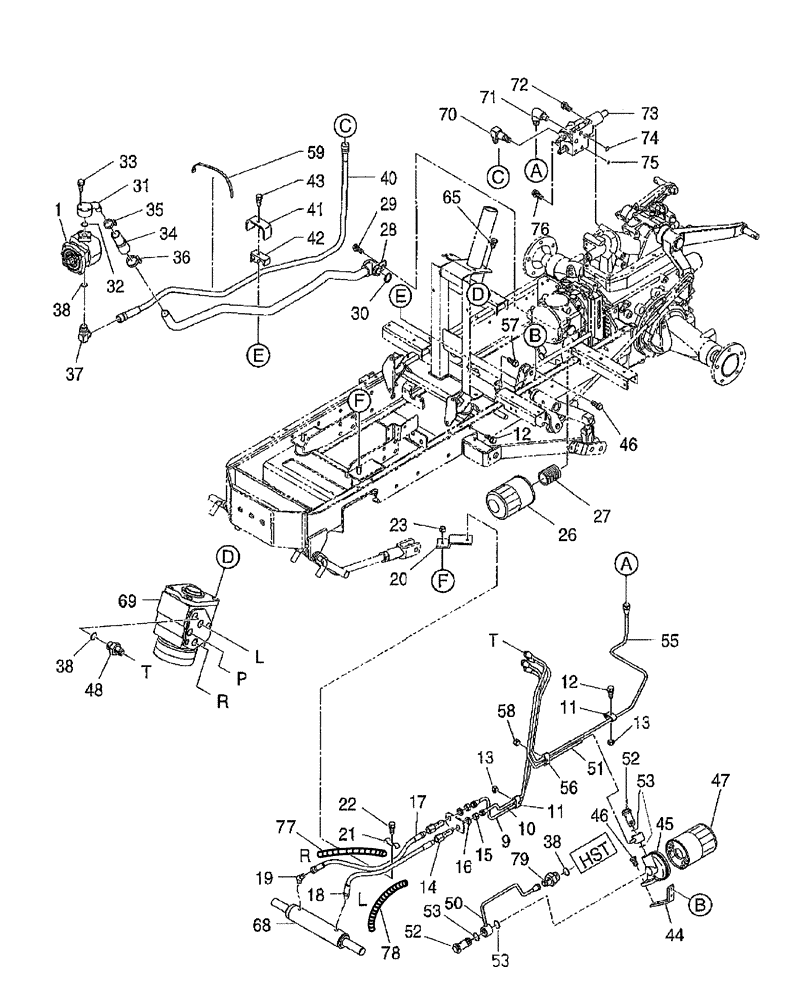

Запчасти Case IH DX24E (07.04) - HYDRAULIC PUMP & PIPING (07) - HYDRAULIC SYSTEM

1

SBA340451150

HYDRAULIC PUMP

1шт.

9

SBA340709830

PIPE

Oil

1шт.

10

SBA340709840

PIPE

Oil

1шт.

11

SBA399100630

CLAMP

6шт.

12

SBA010800630

BOLT

M6 x 30

3шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

3шт.

14

SBA340671381

ADAPTER

2шт.

15

SBA020800014

NUT,M14 x 1.5

2шт.

16

SBA027100014

SPRING

2шт.

17

SBA340693120

HOSE

Oil

1шт.

18

SBA340693020

HOSE

1шт.

19

SBA340670290

ADAPTER

1шт.

20

SBA399569190

PLATE

1шт.

20

SBA399569191

PLATE

1шт.

ON & ABOVE P.I.N. HDG100075 DX18E & HDG200247 DX24E

1шт.

21

SBA399113400

CLAMP

1шт.

22

SBA010800625

BOLT

1шт.

23

SBA023100010

NUT

1шт.

26

87585172

HYDRAULIC OIL FILTER

1шт.

27

SBA340673520

ADAPTER

1шт.

28

SBA340709862

PIPE

Oil

1шт.

29

SBA010800816

BOLT

M8 x 16

1шт.

30

SBA052100250

O-RING,3.5mm Thk x 24.7mm ID, 90 Duro

1шт.

31

SBA340709820

PIPE

Oil

1шт.

32

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

1шт.

33

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

1шт.

34

SBA398121090

TUBE

Rubber

1шт.

35

SBA398750420

HOSE CLAMP

1шт.

36

SBA398750260

HOSE CLAMP

1шт.

37

SBA340673640

ADAPTER

1шт.

38

SBA052100140

O-RING

6шт.

40

SBA340693010

HOSE

Oil

1шт.

41

SBA399112270

CLAMP

1шт.

42

SBA398115860

SPACER

1шт.

43

SBA011310650

BOLT

M6 x 50

1шт.

44

SBA340793260

BRACKET

1шт.

45

SBA340560340

FLANGE

1шт.

46

SBA010800820

BOLT

M8 x 20

4шт.

47

SBA340501030

FILTER

HST, Std, W/Internal Bypass

1шт.

47

SBA340500980

HYDRAULIC OIL FILTER

Cold Weather

1шт.

48

SBA340671220

ADAPTER

Straight, 3/8", M14

4шт.

50

SBA340709850

PIPE

Oil

1шт.

51

SBA340709870

PIPE

Oil

1шт.

52

SBA398480240

BANJO BOLT,3/8"

2шт.

53

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

4шт.

55

SBA340709810

PIPE

Oil

1шт.

55

SBA340709811

PIPE

Oil

1шт.

USED ON & ABOVE PIN HDG100188 DX18E & HDG200557 DX24E

1шт.

59

SBA399100630

CLAMP

4шт.

65

SBA011611020

BOLT

M10 x 20

3шт.

68

SBA344953170

CYLINDER

1шт.

69

SBA334011262

STEERING BOX

Case

1шт.

70

SBA340671870

ADAPTER

1шт.

71

SBA340671580

ADAPTER

1шт.

72

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

73

SBA340016502

CONTROL VALVE

Refer to Fig. 07.04.01 for Components

1шт.

74

SBA052110120

O-RING

3шт.

75

SBA052110070

O-RING

1шт.

76

SBA011510860

CAPTIVE WASHER SCREW,Hex, M8 x 60, G5

1шт.

77

SBA385891114

PLASTIC-RUBBER TUBE

Corrugated Tube

1шт.

78

SBA385891118

PLASTIC-RUBBER TUBE

Corrugated Tube

1шт.

79

SBA340671710

ADAPTER

Straight, 3/8", M16

1шт.
