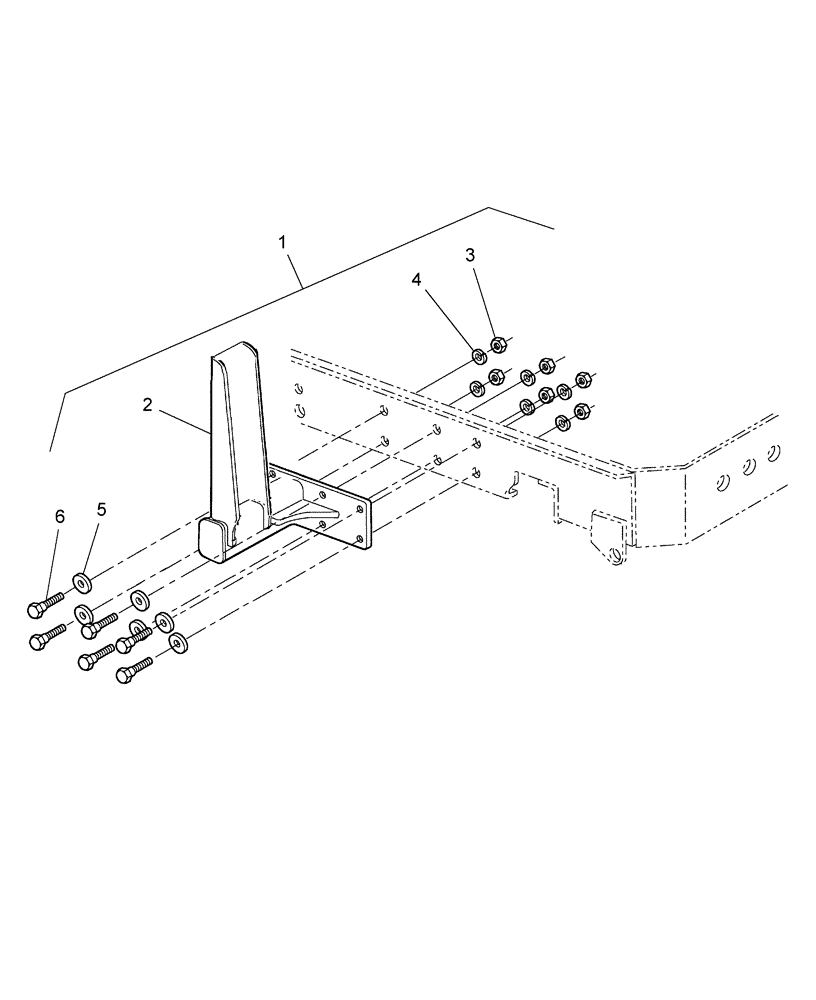

Запчасти Case IH DX24E (07.02.02) - MOUNTING KIT FOR 2 SPOOL VALVE WHEN NOT USING LOADER - 710330026 (07) - HYDRAULIC SYSTEM

1

710330026

DIA KIT, ADD PROD

Mounting Kit (710330026) Includes: Ref. 2-7

1шт.

2

NSS

NOT SOLD SEPARAT

Mount, Valve

1шт.

3

337475

NUT,M12, Cl 10

6шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

5

394630

WASHER,13mm ID x 28mm OD x 4mm Thk

6шт.

6

9706702

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

6шт.
