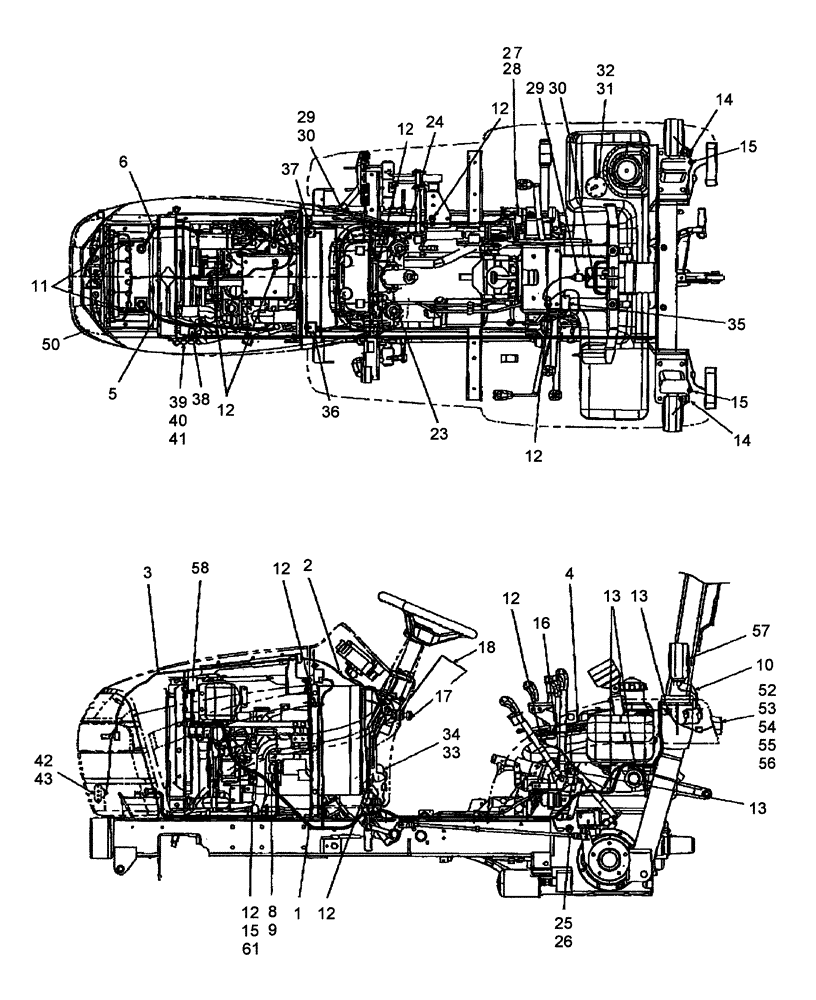

Запчасти Case IH DX24E (06.01) - WIRING HARNESS (06) - ELECTRICAL SYSTEMS

1

SBA385612033

WIRE HARNESS

Main

1шт.

2

SBA385612040

WIRE HARNESS

Instrument Panel

1шт.

3

SBA385612060

WIRE HARNESS

Headlight

1шт.

4

SBA385612071

HARNESS

Auxiliary Power Socket & Seat Switch

1шт.

5

SBA385650670

CABLE

Battery, Positive

1шт.

6

SBA385650680

CABLE

Battery, Negative

1шт.

8

SBA398119870

RUBBER PAD

1шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

10

SBA385611860

WIRE HARNESS

Rear, Hazard Lights

2шт.

11

SBA399111960

CLAMP

2шт.

12

SBA399113200

CLAMP

8шт.

13

SBA399113340

WIRE CLAMP

5шт.

14

SBA399112140

CLAMP

2шт.

15

SBA398110240

GROMMET

Rubber

2шт.

16

SBA398110100

GROMMET

Rubber

1шт.

17

SBA385210360

IGNITION KEY

1шт.

18

SBA385202590

SWITCH

Ignition Includes: Ref. 18A & 18B

1шт.

18a

SBA385240290

RING NUT

Nut, Ring

1шт.

Not Illustrated

1шт.

18b

SBA385240300

WASHER

Washer

1шт.

Not Illustrated

1шт.

20

SBA385612360

WIRE HARNESS

10A

1шт.

Not Illustrated

1шт.

22

SBA385202591

SWITCH

Engine Start

1шт.

22a

SBA385240290

RING NUT

1шт.

Not Illustrated

1шт.

22b

SBA385240300

WASHER

1шт.

Not Illustrated

1шт.

22c

SBA385210360

IGNITION KEY

2шт.

Not Illustrated

1шт.

23

SBA385202570

SWITCH ASSY

1шт.

24

SBA385202560

SWITCH ASSY

1шт.

24

SBA385202561

SWITCH ASSY

Combination Switch for Head Lamps, Front Work Lamps & Tail LIghts

1шт.

USED BEFORE PIN HDG100038 DX18E & HDG200099 DX24E

1шт.

25

SBA385200730

SWITCH

Brake Light

1шт.

26

SBA025100014

SEALING WASHER,14.4mm ID x 21mm OD x 2mm Thk

1шт.

27

SBA385200891

SWITCH

HST, PTO Safety

1шт.

28

SBA385240038

NUT

M20 x 1.5

1шт.

29

SBA485220180

SWITCH

Brake Safety

2шт.

30

SBA398211880

SPRING

2шт.

31

SBA385280230

GAUGE

Fuel

1шт.

32

SBA015140512

SCREW

M15 x 12

5шт.

33

SBA360800040

FUEL PUMP

1шт.

34

SBA010800612

BOLT

M6 x 12

2шт.

35

SBA385750390

POWER SOCKET

1шт.

36

SBA385870301

TIMER,12V

1шт.

37

SBA385870640

CONTROL UNIT

1шт.

38

SBA385230320

FLASHER UNIT

1шт.

39

SBA385230300

RELAY

PTO, Brake, Engine, Cruise Latch & (2) 4 Pin Hazard Lamp

3шт.

40

SBA010800612

BOLT

M6 x 12

6шт.

41

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

6шт.

42

SBA385250050

HORN

1шт.

43

SBA010800612

BOLT

M6 x 12

2шт.

45

SBA385250190

HORN

1шт.

USED ON & ABOVE PIN HDG100094 DX18E & HDG200344 DX24E

1шт.

50

86522921

HEADLAMP

1шт.

52

SBA385102150

TAIL LAMP

2шт.

53

SBA385170030

HOUSING

2шт.

54

SBA015600408

SCREW

2шт.

55

SBA026100004

WASHER

2шт.

56

SBA020100004

NUT

2шт.

57

SBA385100961

LAMP

Hazard, Includes: (2) SBA385110430 Lens, (1) 529068 Bulb & (1) SBA020610012 Nut

2шт.

58

SBA385410090

FUSE

15AMP

1шт.

58

SBA385410130

FUSE

20AMP

1шт.

58

SBA385410210

FUSE

25AMP

1шт.

59

SBA385620220

DIODE

Single Diode

1шт.

Not Illustrated

1шт.

60

SBA385620380

DIODE

Double Diode, Gray

1шт.

Not Illustrated

1шт.

61

SBA385410230

FUSE

40 AMP, Located near Starter

1шт.

Not Illustrated

1шт.
