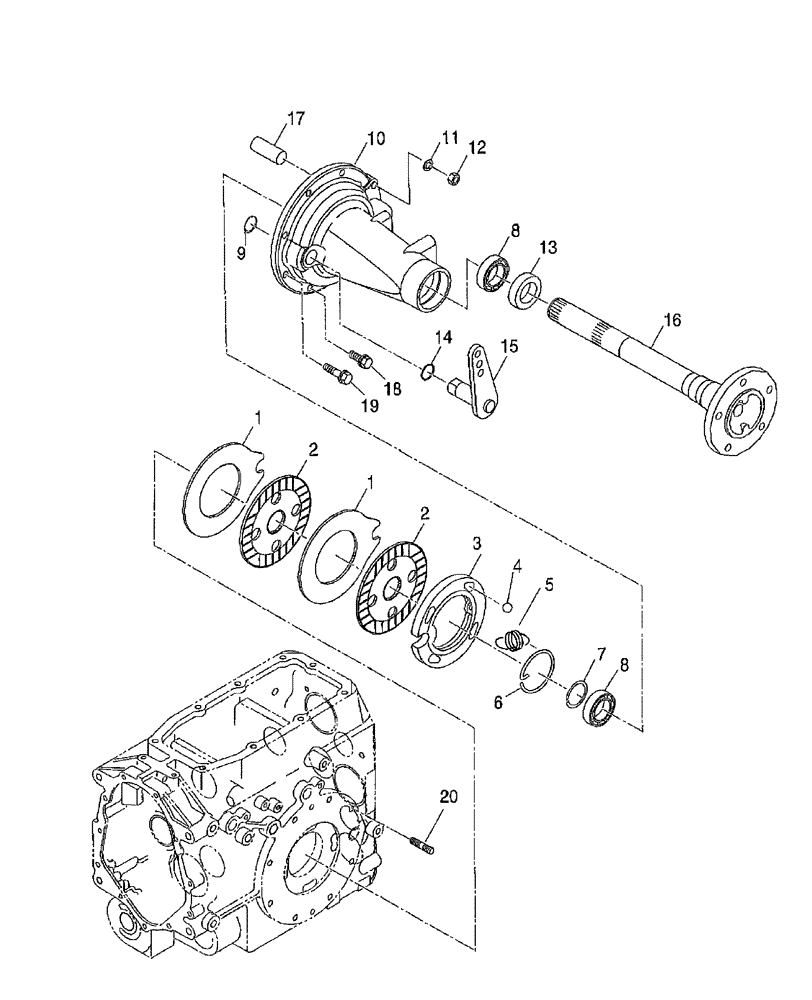

Запчасти Case IH DX24E (05.01.01) - BRAKE & WHEEL SHAFT CASE, LH (05) - REAR AXLE

1

SBA328560450

BRAKE DISC

2шт.

2

SBA328110250

BRAKE DISC

Lining

2шт.

3

SBA328560430

BRAKE DISC

1шт.

4

SBA048109041

BALL

Steel

4шт.

5

SBA398215650

SPRING

2шт.

6

SBA398340610

CLIP

1шт.

7

SBA036100035

SNAP RING

2шт.

8

SBA040106007

BEARING ASSY

4шт.

9

SBA036100025

SNAP RING

1шт.

10

SBA326345400

CASE

Wheel Shaft

1шт.

11

892-11010

LOCK WASHER,M10

4шт.

12

SBA021010010

NUT,M10 x 1.25

4шт.

13

SBA050609045

SEAL

Oil

2шт.

14

SBA052100210

O-RING

1шт.

15

SBA328300610

BRACKET

Brake Cam

1шт.

16

SBA326312530

WHEEL SHAFT

1шт.

17

SBA328260180

ANCHOR

Pin

2шт.

18

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

8шт.

19

SBA011511040

BOLT,M10 x 40

4шт.

20

SBA012111040

SCREW

Stud, M10 x 40

2шт.
