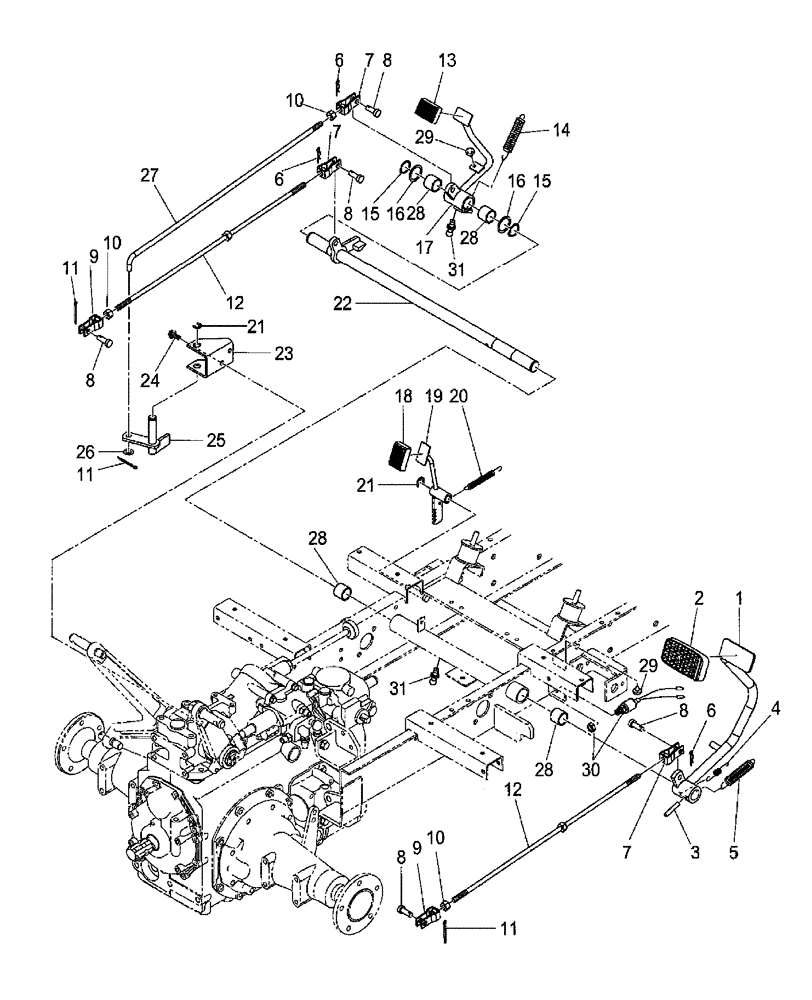

Запчасти Case IH DX24E (03.12) - BRAKE PEDALS (03) - TRANSMISSION

1

SBA358105241

PEDAL

1шт.

2

SBA358120830

PLATE

Step

1шт.

3

SBA030300840

ROLL PIN

Spring 8 x 40

1шт.

4

SBA398211880

SPRING

1шт.

5

SBA398210290

SPRING

1шт.

6

SBA031100010

PIN

2шт.

7

SBA358550020

CLEVIS

Fork, LH, M10

2шт.

8

SBA031311020

PIN

4шт.

9

SBA358550010

CLEVIS

Joint, Fork, RH

1шт.

10

825-11410

NUT,M10 x 1.25, Cl 8

2шт.

11

SBA030103225

COTTER PIN,M3 x 25 L

3шт.

12

SBA358500290

ROD

2шт.

13

SBA398114050

COVER

Rubber

1шт.

14

SBA398210290

SPRING

1шт.

15

SBA036100025

SNAP RING

2шт.

16

SBA399211550

SPACER

2шт.

17

SBA326501341

PEDAL

Difflock

1шт.

18

SBA398119901

RUBBER PEDAL PAD

Replaced by SBA398119902 Rubber Pedal & SBA398122990 Rubber

1шт.

18

SBA398119902

RUBBER PEDAL PAD

Rubber, Pedal

1шт.

18a

SBA398122990

RUBBER PAD

Rubber

1шт.

Not Illustrated

1шт.

Fits Between Ref. 18 & 19

1шт.

19

SBA358300750

BRACKET

Lock, Brake

1шт.

20

SBA398211830

SPRING

1шт.

21

SBA036800012

SNAP RING

2шт.

22

SBA358200970

SHAFT

1шт.

23

SBA358250950

BRACKET, SUPPORTING

1шт.

24

SBA010800820

BOLT

M8 x 20

2шт.

25

SBA326550220

LEVER

Difflock

1шт.

26

SBA026100010

WASHER

M10

1шт.

27

SBA358511380

ROD

1шт.

28

SBA398510070

BUSHING

4шт.

29

SBA398110110

BUMPER

Rubber

2шт.

30

SBA485220180

SWITCH

Brake Safety

1шт.

31

SBA060610000

LUBE NIPPLE,M6 x .075

2шт.
