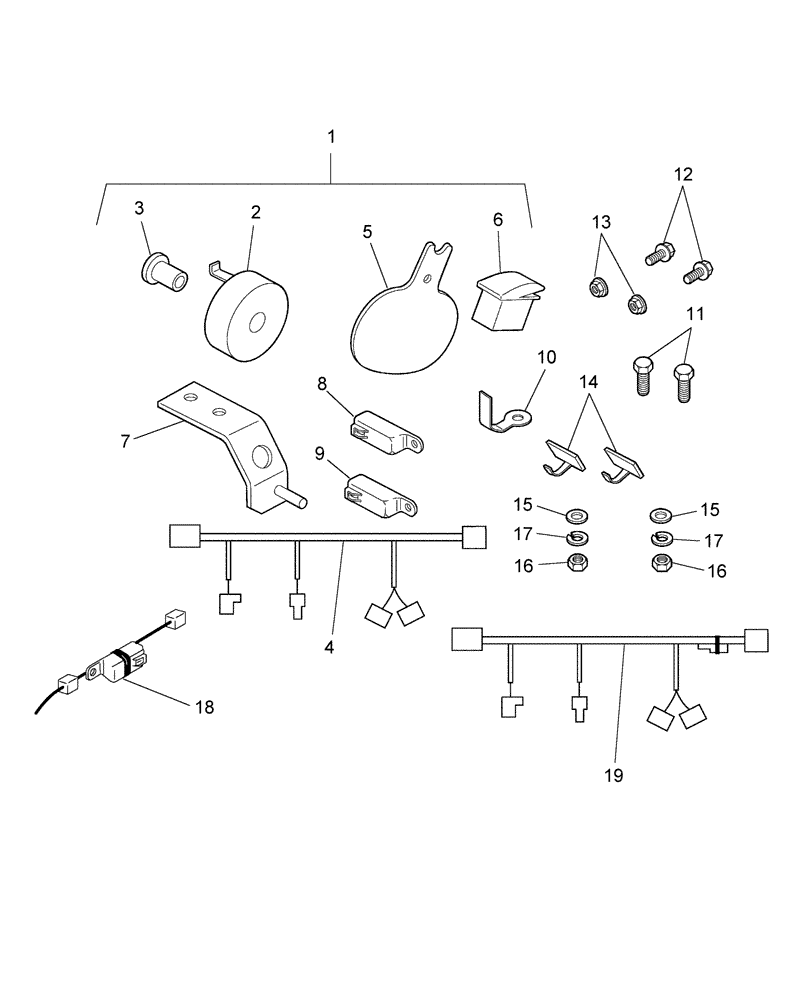

Запчасти Case IH DX24E (03.10) - CRUISE CONTROL KIT - 718270026 & 718270036 (03) - TRANSMISSION

1

718270026

Cruise Control Kit Includes: Ref. 1-16

1шт.

Order thru Wholegoods

1шт.

1

718270036

DIA KIT, ADD PROD

Cruise Control Kit Incldues: Ref.

1шт.

2

87316542

ELECTROMAGNET

6" Wire Lead

1шт.

3

SBA398511990

BUSHING

1шт.

4

SBA385612050

WIRE HARNESS

1шт.

USED IN 718270026 CRUISE CONTROL KIT

1шт.

5

SBA399569230

PLATE

HST

1шт.

6

SBA385202610

SWITCH ASSY

1шт.

7

SBA385953330

BRACKET

Cruise Control

1шт.

8

SBA385230300

RELAY

1A, Black

2шт.

9

SBA385230290

RELAY

1B, Blue

1шт.

10

SBA399113200

CLAMP

1шт.

11

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

12

SBA010800616

BOLT

M6 x 16

2шт.

13

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

2шт.

14

SBA399112851

CLAMP

2шт.

15

SBA026100008

WASHER

M8

2шт.

16

43362

NUT,M8 x 1.25, Cl 10

2шт.

17

SBA027100008

WASHER

Spring, M8

2шт.

18

SBA385612370

WIRE HARNESS

Includes: (1) Ref. 13

1шт.

USED IN 718270026 CRUISE CONTROL KIT

1шт.

USED IN PRODUCT UPDATE PROGRAM A1604 718270026 CRUISE CONTROL KIT

1шт.

19

SBA385612051

WIRE HARNESS

Includes: Ref. 18

1шт.
