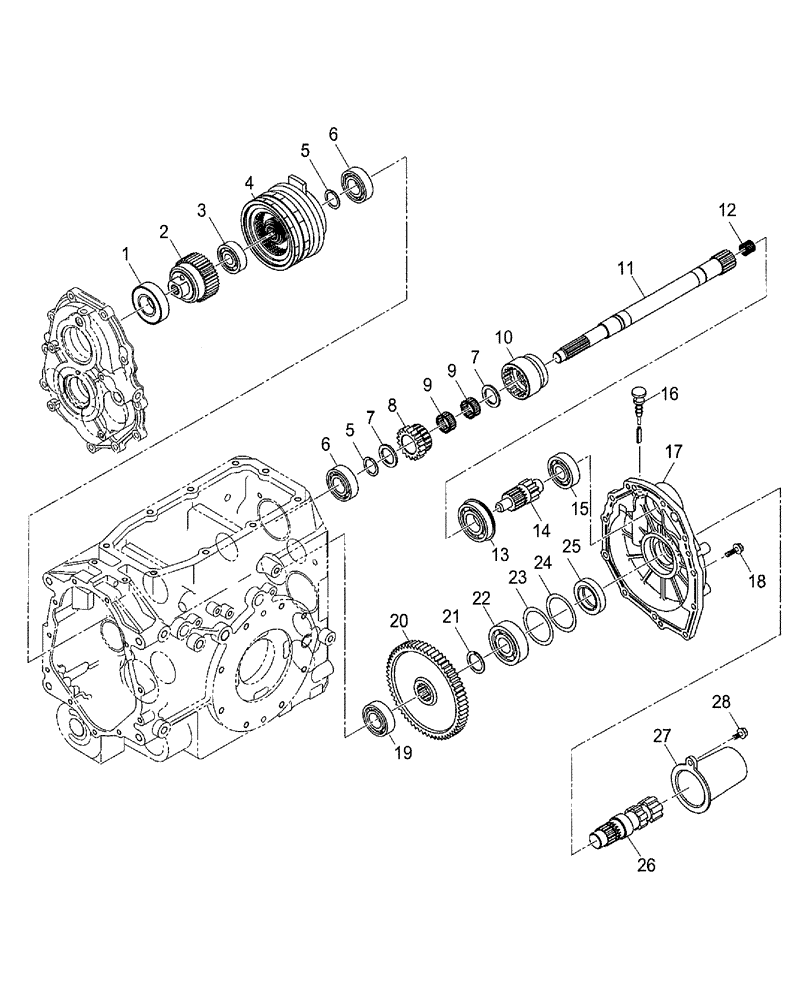

Запчасти Case IH DX24E (03.06) - PTO GEARS (03) - TRANSMISSION

1

SBA040116206

BEARING ASSY,30mm ID x 62mm OD x 16mm W

1шт.

2

SBA322590970

PTO SHAFT

1шт.

3

SBA040106303

BALL BEARING

1шт.

4

SBA320041040

CLUTCH ASSEMBLY

1шт.

5

SBA036100025

SNAP RING

2шт.

6

SBA040106205

RING

3шт.

7

SBA399260650

THRUST WASHER

2шт.

8

SBA322372220

GEAR

Counter

1шт.

9

SBA042200325

NEEDLE

Bearing

2шт.

10

SBA322342221

GEAR

Slide A

1шт.

11

SBA322514281

DRIVE SHAFT

1шт.

12

SBA042200315

NEEDLE

Bearing

1шт.

13

SBA040156206

BEARING ASSY,60mm ID x 62mm OD x 16mm W

1шт.

14

SBA322531911

DRIVE SHAFT

Counter

1шт.

15

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

16

SBA398400400

GAUGE

1шт.

17

SBA322213911

COVER

1шт.

18

SBA010810825

BOLT

11шт.

19

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

20

SBA322326600

GEAR

Fixing

1шт.

21

SBA036100030

SNAP RING

1шт.

22

SBA040106206

RING

1шт.

23

SBA199280630

SHIM,0.1mm Thk

1шт.

24

SBA199280640

SHIM,0.2mm Thk

1шт.

25

SBA050609043

SEAL

Oil

1шт.

26

SBA322590951

PTO SHAFT

1шт.

27

SBA378116250

GUARD

1шт.

28

SBA010800814

BOLT

M8 x 14

1шт.
