(DX24E) - COMPACT TRACTOR - PIN # HDG200000 & ABOVE (1/04-12/05)
/
(03) - TRANSMISSION
/

(03.05.01) - HST ASSEMBLY

Запчасти Case IH DX24E (03.05.01) - HST ASSEMBLY (03) - TRANSMISSION

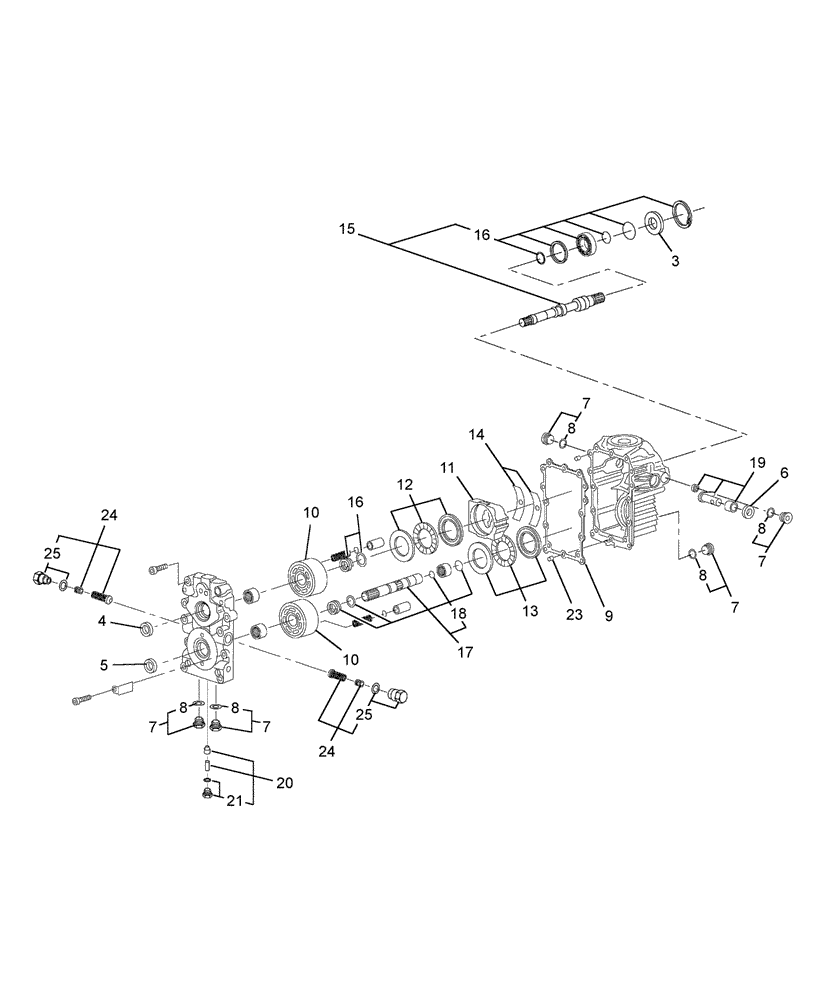

Схема запчастей Case IH DX24E - (03.05.01) - HST ASSEMBLY (03) - TRANSMISSION
16
12
3
4
25
7
24
7
7
15
10
8
11
8
6
7
24
23
21
18
5
20
8
7
13
16
19
9
14
25
8
10
8
17

№

Артикул

Название

Примечание

Количество

1

SBA322800201

TRANSMISSION, HYDROS

HST ASSEMBLY Includes: Ref. 2-25

1шт.

No Longer Serviced. Seal Kit SBA322840907 Still Available

1шт.

SBA322800202R

REMAN-HYDROSTAT PUMP

DX18E PIN # HDG100000 & ABOVE (12/04 - 4/05), DX24E PIN # HDG200000 & ABOVE (12/04), Reman for new P/N SBA322800201

1шт.

SBA322800202C

CORE-HYDROSTAT PUMP

Return Number

1шт.

1

SBA322800200

TRANSMISSION, HYDROS

HST ASSEMBLY Includes: Ref. 2-9

1шт.

SBA322800202R

REMAN-HYDROSTAT PUMP

DX18E PIN # HDG100000 & ABOVE (12/04 - 4/05), DX24E PIN # HDG200000 & ABOVE (12/04), Reman for new P/N SBA322800200

1шт.

SBA322800202C

CORE-HYDROSTAT PUMP

Return Number

1шт.

2

SBA322840921

SEAL KIT

Includes: Ref. 3-6 & 9

1шт.

3

SBA322840901

OIL SEAL

Seal, Oil Not included in Ref. 16

1шт.

4

SBA322840902

OIL SEAL

1шт.

5

SBA322840903

OIL SEAL

1шт.

6

SBA322840904

OIL SEAL

1шт.

7

SBA322840905

PLUG

Includes: Ref. 8

4шт.

8

SBA322840906

O-RING

9шт.

9

SBA322840900

GASKET

1шт.

10

SBA322840908

KIT

Cylinder Block

2шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

11

SBA322840922

PLATE

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

12

SBA322840923

THRUST BEARING

Bronze Color

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

13

SBA322840924

THRUST BEARING

Silver Color

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

14

SBA322840925

BEARING

Cradle

2шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

15

SBA322840909

KIT

Pump Shaft Includes: Ref. 16

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

16

SBA322840910

KIT

Pump Shaft Repair Does not include Ref. 3

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

17

SBA322840911

KIT

Motor Shaft Includes: Ref. 18

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

18

SBA322840912

KIT

Motor Shaft Repair

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

19

SBA322840913

KIT

Trunnion Arm

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

20

SBA322840914

KIT

Relief Valve Includes: Ref. 21

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

21

SBA322840915

PLUG

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

22

SBA322840916

BOLT

8шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

23

SBA322840917

PIN

2шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

24

SBA322840919

KIT

Check Valve Includes: Ref. 25 Relief Valve Marked 25 is for Forward Travel of HST & Relief Valve Marked 25A is for Reverse Travel

1шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

25

SBA322840920

PLUG

2шт.

USED WITH SBA322800201 HST ASSEMBLY

1шт.

Выбрано товаров: 47
