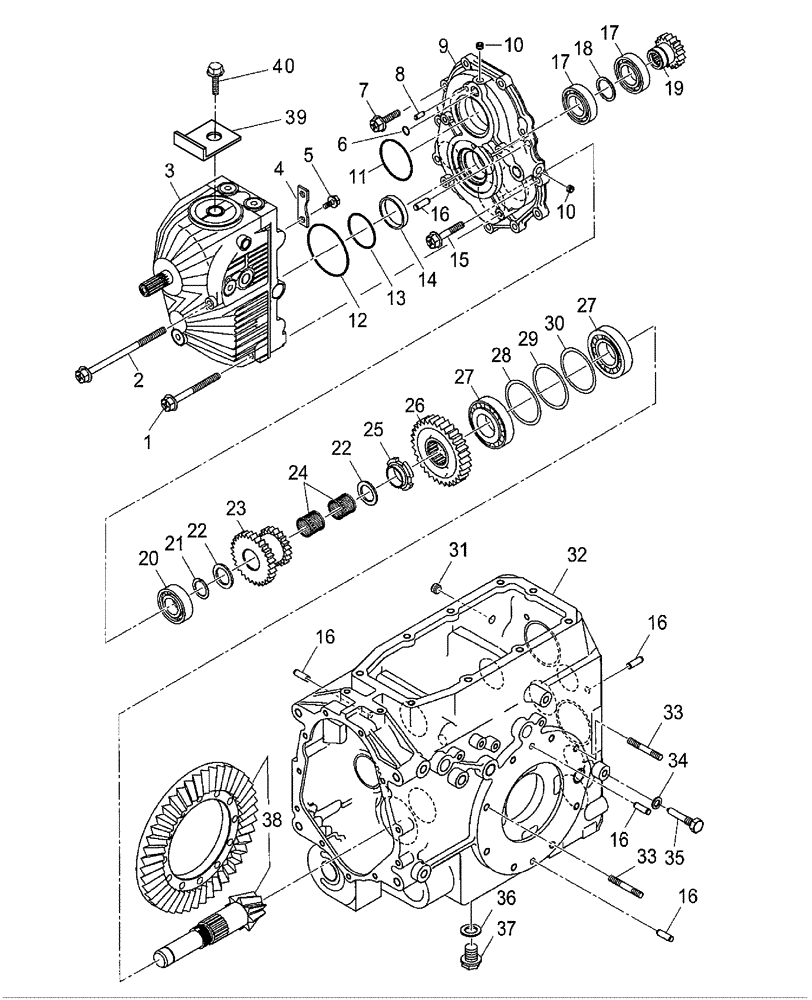

Запчасти Case IH DX24E (03.05) - HST DRIVE (03) - TRANSMISSION

1

SBA010810875

BOLT

2шт.

2

SBA010819002

BOLT

2шт.

3

SBA322800201

TRANSMISSION, HYDROS

HST Ref. to Fig. 03.05.01 for Details

1шт.

USED ON & ABOVE PIN HDG100003 DX18E & HDG200011 DX24E

1шт.

SBA322800202R

REMAN-HYDROSTAT PUMP

DX18E PIN # HDG100000 & ABOVE (12/04 - 4/05), DX24E PIN # HDG200000 & ABOVE (12/04), Reman for new P/N SBA322800201

1шт.

SBA322800202C

CORE-HYDROSTAT PUMP

Return Number

1шт.

4

SBA322280250

WASHER

1шт.

5

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

6

SBA052100110

O-RING,2.4mm Thk x 10.8mm ID

P11

1шт.

7

SBA010810825

BOLT

9шт.

8

SBA030500616

DOWEL,M6 x 16

1шт.

9

SBA322213890

COVER

1шт.

10

SBA064400010

PLUG

2шт.

11

SBA052300600

O-RING,G60

1шт.

12

SBA052300750

O-RING

1шт.

13

SBA052400500

O-RING

1шт.

14

SBA399235840

SEALING RING COLLAR

1шт.

15

SBA010810835

BOLT

2шт.

16

SBA030500825

PIN

Dowel, M8 x 25

8шт.

17

SBA040106006

BEARING ASSY

Ball

2шт.

18

SBA036100030

SNAP RING

1шт.

19

SBA322326560

GEAR

Fixing

1шт.

20

SBA040106205

RING

1шт.

21

SBA036100025

SNAP RING

1шт.

22

SBA399260650

THRUST WASHER

2шт.

23

SBA322382960

GEAR

Counter

1шт.

24

SBA042209024

NEEDLE

Bearing

2шт.

25

SBA399370620

NUT

Lock

1шт.

26

SBA322326570

GEAR

Fixing

1шт.

27

SBA042530207

BEARING ASSY

Taper, M35 x 72 x 18.25

2шт.

28

SBA199280690

SHIM,0.1mm Thk

1шт.

29

SBA199280700

SHIM,0.2mm Thk

1шт.

30

SBA199280710

SHIM,0.5mm Thk

1шт.

31

SBA064500020

PLUG

1/4"

1шт.

32

SBA322118500

CASING

1шт.

33

SBA012111040

SCREW

Stud, M10 x 40

2шт.

34

SBA025100010

SEALING WASHER,9.2mm ID x 17mm OD x 1.8mm Thk

M10

1шт.

35

SBA399430190

BOLT

M10

1шт.

36

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal, #16

1шт.

37

SBA064600016

PLUG

M16

1шт.

38

SBA322051380

DRIVE

Pinion

1шт.

39

SBA355520880

PLATE

1шт.

40

SBA010109611

BOLT

1шт.
