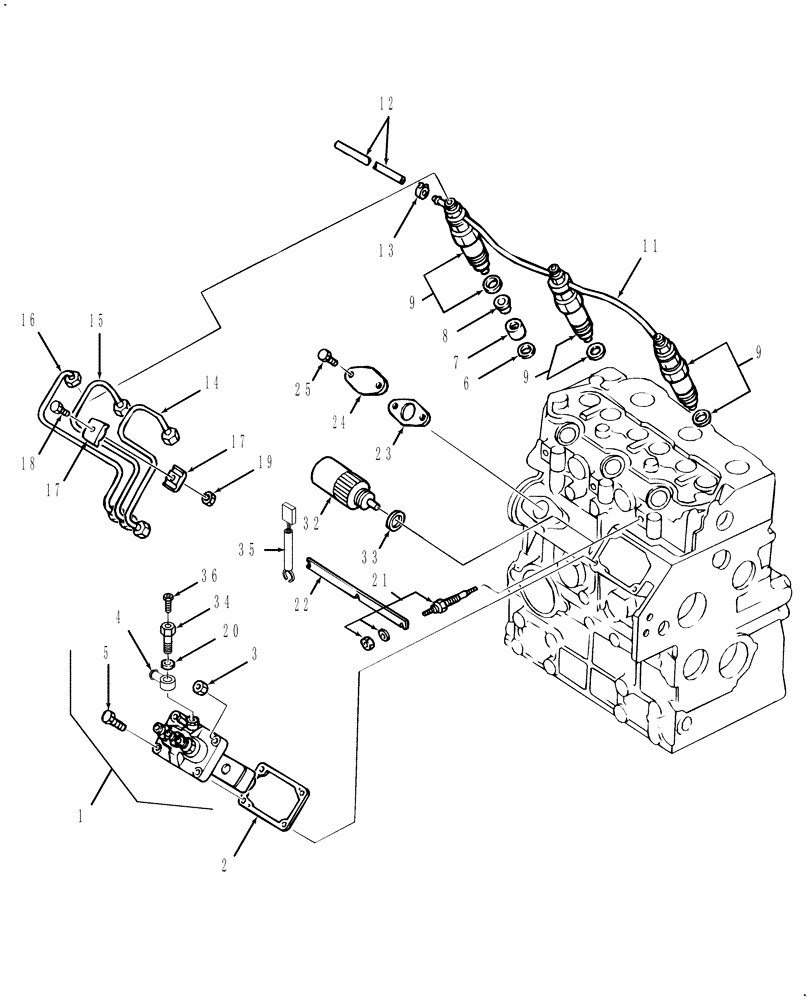

Запчасти Case IH DX24E (01.09) - INJECTION PUMP & LINES (01) - ENGINE

1

SBA131017711

FUEL INJECTION PUMP

ASSY.

1шт.

SBA131017711R

REMAN-FUEL INJ PUMP

DX18E, PIN # HDG100000 & ABOVE (12/04-4/05), DX24E PIN # HDG200000 & ABOVE (12/04-)

1шт.

SBA131017711C

CORE-FUEL INJ PUMP

Return Number

1шт.

2

SBA131426300

SHIM KIT

Shim

1шт.

3

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

4

SBA131246130

HYD CONNECTOR

Nipple

1шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.

6

SBA198996050

GASKET

3шт.

7

SBA111316230

SPACER

Insert

3шт.

8

SBA111346020

SHIELD

Cap

3шт.

9

SBA131406330

FUEL SYSTEM INJECTOR

3шт.

SBA131406330R

REMAN-INJECT NOZZLE

DX18E PIN HDG100000 & Above(12/04-4/05), DX24E PIN HDG200000 & Above (12/04),

3шт.

SBA131406330C

CORE-NOZZLE, INJECT

Return Number

1шт.

11

SBA131606140

INJECTION PIPE

1шт.

12

SBA068209041

INJECTION PIPE

1шт.

13

SBA067200078

HOSE CLAMP

1шт.

14

SBA131506921

INJECTION PIPE

1шт.

15

SBA131506931

INJECTION PIPE

1шт.

16

SBA131506941

INJECTION PIPE

1шт.

17

SBA199106020

CLAMP

4шт.

18

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

2шт.

19

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

20

SBA131426180

WASHER

2шт.

21

SBA185366190

GLOW PLUG

3шт.

22

SBA185376110

CONTACT PLATE

1шт.

23

SBA130996130

GASKET

1шт.

24

SBA165206640

COVER

1шт.

25

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

32

SBA185206083

SOLENOID

1шт.

33

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

1шт.

34

SBA131236190

BOLT

1шт.

35

SBA185606170

WIRE HARNESS

1шт.

36

SBA198487460

BANJO BOLT

M6x16, Fits into Ref. 34 Refer to Fig. 01.09.01

1шт.
