(08.06) - DECALS

Запчасти Case IH DX24 (08.06) - DECALS (08) - SHEET METAL

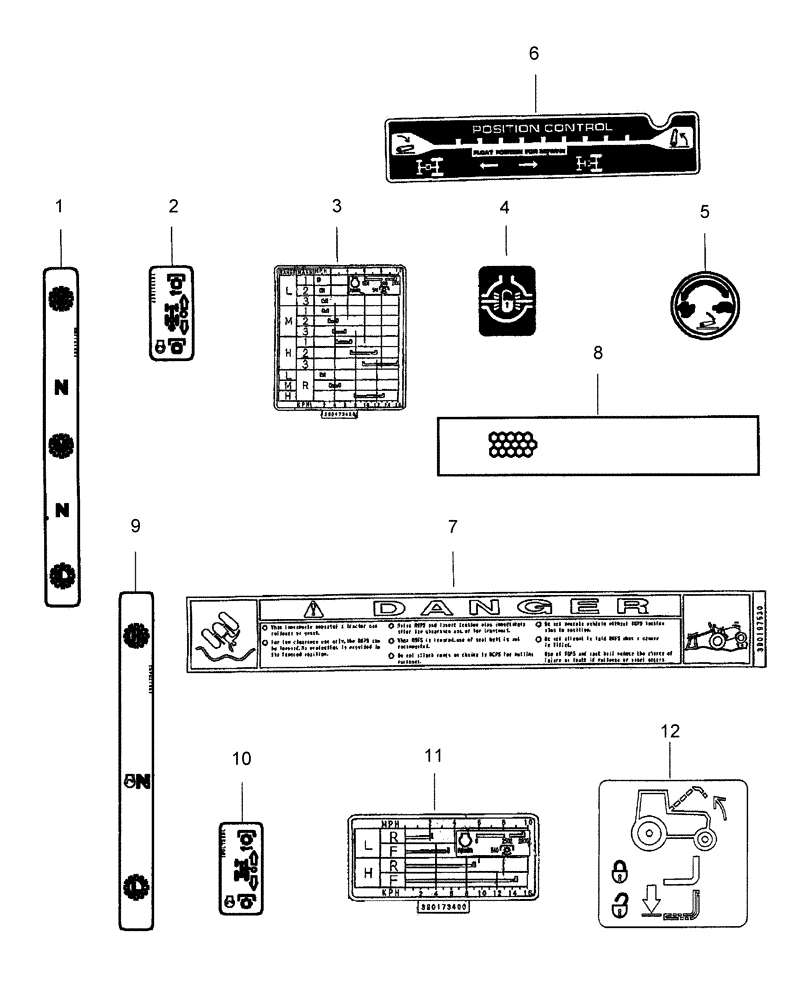

Схема запчастей Case IH DX24 - (08.06) - DECALS (08) - SHEET METAL
5
7
3
9
1
8
11
12
10
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA390171892

DECAL

RANGE SELECTOR, 9 x 3

1шт.

2

SBA390174161

DECAL

INDICATING PLATE, PTO

1шт.

3

SBA390173421

DECAL

Ground Speed, 9 x 3

1шт.

4

SBA390198300

DECAL

Caution Plate

1шт.

4

SBA390198301

DECAL

Caution Plate

1шт.

Used On & ASN or PIN # HDG300075 DX21 & HDG400287 DX24

1шт.

5

SBA390372470

DECAL

Flow Control Valve

1шт.

5

SBA390372471

DECAL

Flow Control Valve

1шт.

Used On & ASN or PIN # HDG300075 DX21 & HDG400287 DX24

1шт.

6

SBA390372342

DECAL

Float Position Control for Mowing, FWD Lever

1шт.

7

SBA390197531

DECAL

DANGER, TOP OF ROPS

1шт.

8

SBA385150260

DECAL

REFLECTOR TAPE

1шт.

9

SBA390173492

DECAL

RANGE SELECTOR, HST

1шт.

10

SBA390173891

DECAL

MID PTO

1шт.

11

SBA390173401

DECAL

Ground Speed, HST

1шт.

12

SBA390198960

DECAL

HOOD LOCK

1шт.
