/ / / / / / / / (07.12) - MANIFOLD DIVERTER BLOCK

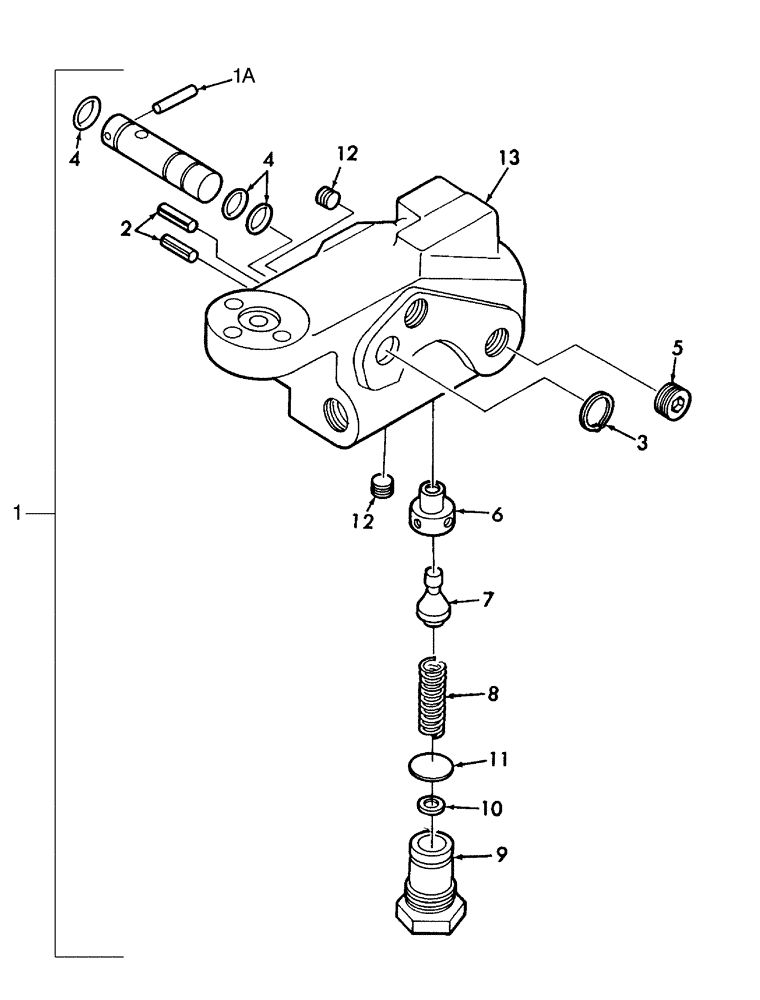

Запчасти Case IH DX24 (07.12) - MANIFOLD DIVERTER BLOCK (07) - HYDRAULIC SYSTEM
11
10
1a
3
6
9
2
4
13
7
5
4
12
12
8
1
1
SBA340016290
BLOCK
Manifold Diverter
1шт.
1a
SBA030300220
ROLL PIN
1шт.
2
SBA030300310
ROLL PIN
2шт.
3
SBA036100013
SNAP RING
1шт.
4
SBA052100100
O-RING
3шт.
5
SBA064409005
PLUG,3/8"-18 NPTF
2шт.
6
SBA340293225
HOUSING
Relief
1шт.
7
SBA340293226
HYDRAULIC VALVE
Poppet
1шт.
8
SBA340293330
SPRING
1шт.
9
SBA340293367
PLUG
1шт.
10
SBA340293230
KIT
Shim
1шт.
11
SBA052400180
O-RING
1шт.
12
SBA064409006
PLUG,1/8" NPT
2шт.
13
NSS
NOT SOLD SEPARAT
Housing
1шт.
