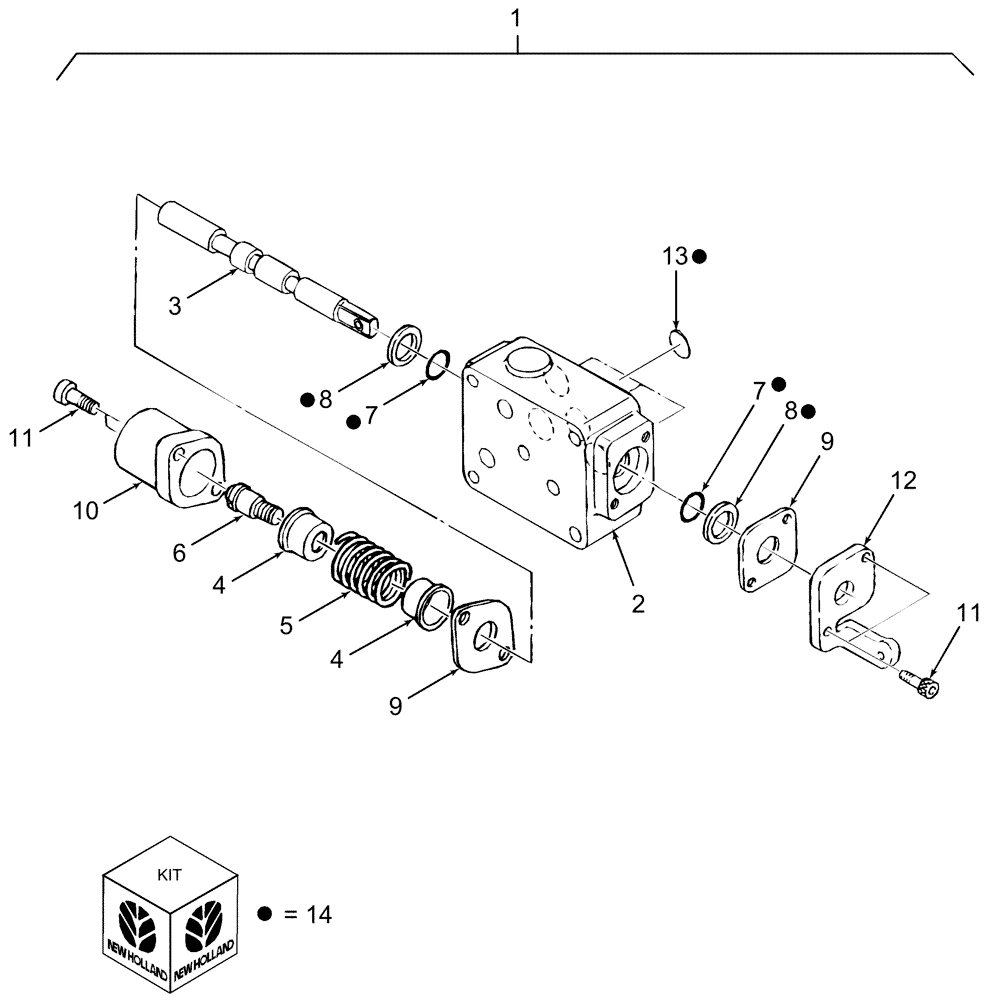

Запчасти Case IH DX24 (07.03.01) - REMOTE CONTROL VALVE ASSEMBLY (07) - HYDRAULIC SYSTEM

1

SBA340015230

HYDRAULIC VALVE

Remote Control Rear

1шт.

2

NS

NOT SERVICED

Housing

1шт.

3

NS

NOT SERVICED

Spool

1шт.

4

SBA340292020

PLUG

Seat, Spring

2шт.

5

SBA340293583

SPRING

1шт.

6

SBA340293582

BOLT

1шт.

7

NSS

NOT SOLD SEPARAT

2шт.

8

NSS

NOT SOLD SEPARAT

Wiper, Ring

2шт.

9

SBA340291980

GASKET

Plate

2шт.

10

SBA340292010

CAP COVER

1шт.

11

86512134

HEX SOC SCREW,M6 x 16mm, Cl 12.9

Cap, HS, CL 10.9, M6 x 1 x 16

4шт.

12

SBA340293584

BRACKET

1шт.

13

SBA052110160

O-RING

4шт.

14

SBA340293585

SEAL KIT

1шт.
