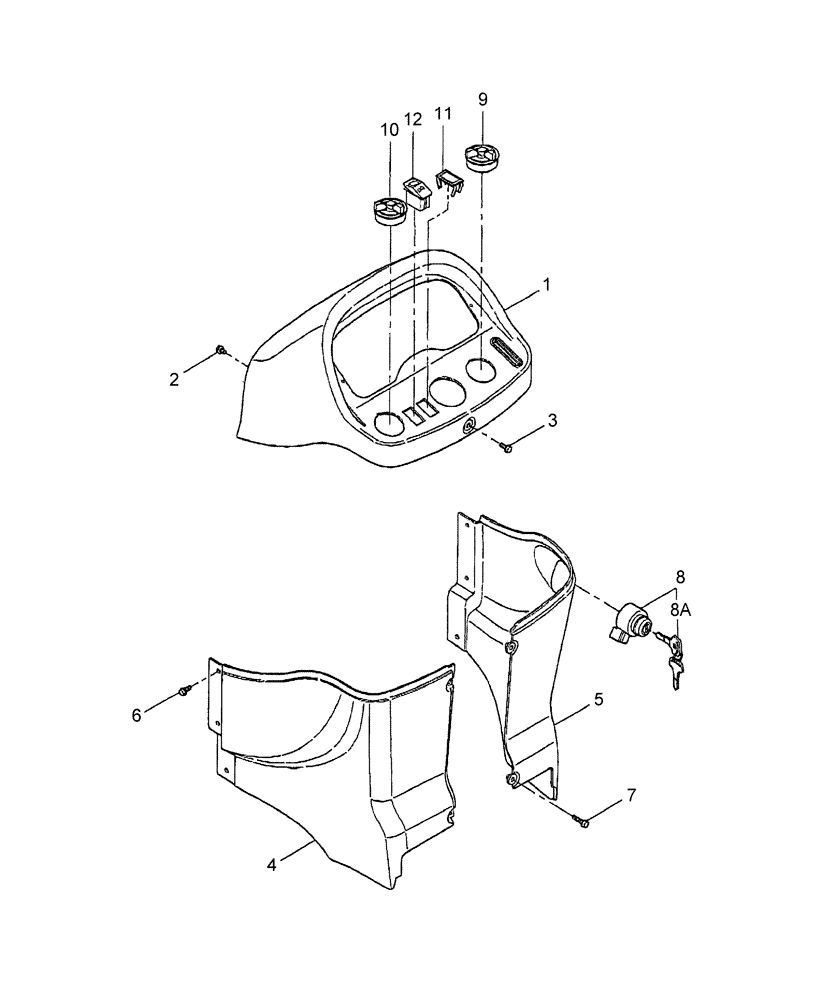

Запчасти Case IH DX24 (06.04) - DASHBOARD (06) - ELECTRICAL SYSTEMS

1

SBA350711940

COVER

1шт.

2

SBA010800610

SCREW

2шт.

3

SBA010800616

BOLT

1шт.

4

SBA350711960

COVER

L

1шт.

5

SBA350711980

COVER

R

1шт.

6

SBA010800616

BOLT

5шт.

7

SBA010800625

BOLT

1шт.

8

SBA385202590

SWITCH

Ignition Includes: Ref. 8A-8C

1шт.

8

SBA385202591

SWITCH

Ignition Includes: Ref. 8A-8C

1шт.

On & ASN or PIN # HDG400007 DX24

1шт.

On & ASN or PIN # HDG300004 DX21

1шт.

8a

SBA385210280

LOCK KEY

1шт.

8a

SBA385210360

IGNITION KEY

1шт.

On & ASN or PIN # HDG400007 DX24

1шт.

On & ASN or PIN # HDG300004 DX21

1шт.

8b

SBA385240290

RING NUT

Ring, Nut

1шт.

Not Illustrated

1шт.

8c

SBA385240300

WASHER

Washer

1шт.

Not Illustrated

1шт.

9

SBA385202560

SWITCH ASSY

1шт.

9

SBA385202561

SWITCH ASSY

Combination Switch for Head Lamps, Front Work Lamps & Tail LIghts

1шт.

Used On & ASN or PIN # HDG300074 DX21 & HDG400168 DX24

1шт.

10

SBA385202420

SWITCH ASSY

1шт.

10

SBA385202421

SWITCH ASSY

Hazard Turn Signal Combination

1шт.

Used On & ASN or PIN # HDG300074 DX21 & HDG400168 DX24

1шт.

11

SBA385830090

CAP

1 HST, 2 9 x 3

1/2шт.

12

SBA385202610

SWITCH ASSY

HST

21шт.

13

SBA390199000

PLATE

Black Color, added to right & left side of dashboard

2шт.

Not Illustrated

1шт.
