Запчасти Case IH DX24 (01.08) - CRANKSHAFT & PISTON (01) - ENGINE

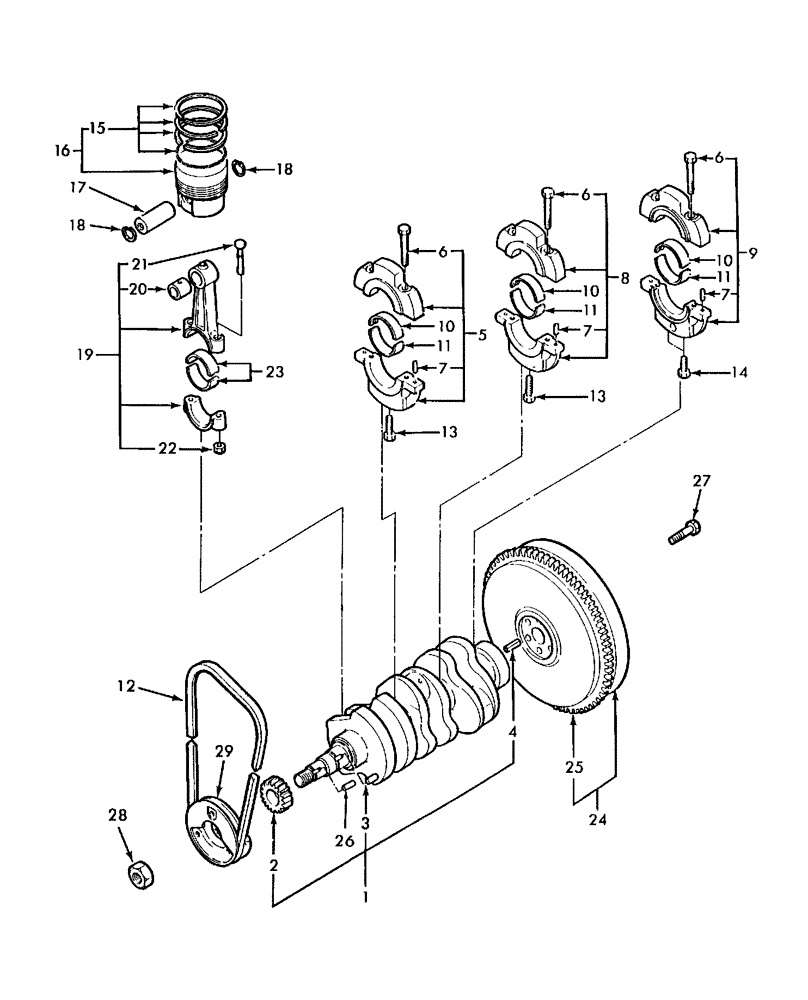

Схема запчастей Case IH DX24 - (01.08) - CRANKSHAFT & PISTON (01) - ENGINE
7
16
12
10
27
25
23
4
22
6
6
3
29
19
28
20
11
2
9
5
7
24
18
14
13
7
10
13
1
10
11
21
18
6
15
17
11
8
26

Артикул

Название

Примечание

Количество

1

SBA115256830

CRANKSHAFT

1шт.

2

SBA115276180

GEAR

1шт.

3

SBA030509020

PIN

Dowel

1шт.

4

SBA030300816

PIN

Spring

1шт.

5

SBA110156400

HOLDER

Bearing

1шт.

6

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

6шт.

7

SBA030500612

DOWEL

6шт.

8

SBA110156410

HOLDER

Bearing

1шт.

9

SBA110156420

HOLDER

Bearing

1шт.

10

SBA198517571

BUSHING

3шт.

11

SBA198517581

CRANKSHAFT BEARING

3шт.

12

SBA080109049

BELT

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

13

SBA011510850

BOLT,M8 x 50mm

2шт.

14

SBA010700845

BOLT

M8 x 45

2шт.

15

SBA115107900

PISTON RINGS KIT

3шт.

16

SBA115017460

PISTON ASSY

3шт.

17

SBA115326231

PISTON PIN

3шт.

18

SBA036500021

SNAP RING

6шт.

19

SBA115026340

CONNECTING ROD

3шт.

20

SBA198517120

BUSHING

3шт.

21

SBA115176150

BOLT

Connecting Rod

6шт.

22

SBA020109075

NUT

6шт.

23

SBA198517601

BEARING LINER

6шт.

24

SBA115356990

ENGINE FLYWHEEL

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

25

SBA115376130

RING GEAR

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

26

SBA034100508

KEY

1шт.

27

SBA010109340

BOLT

6шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

28

SBA020800018

NUT

1шт.

29

SBA115397910

PULLEY

1шт.

Выбрано товаров: 33
