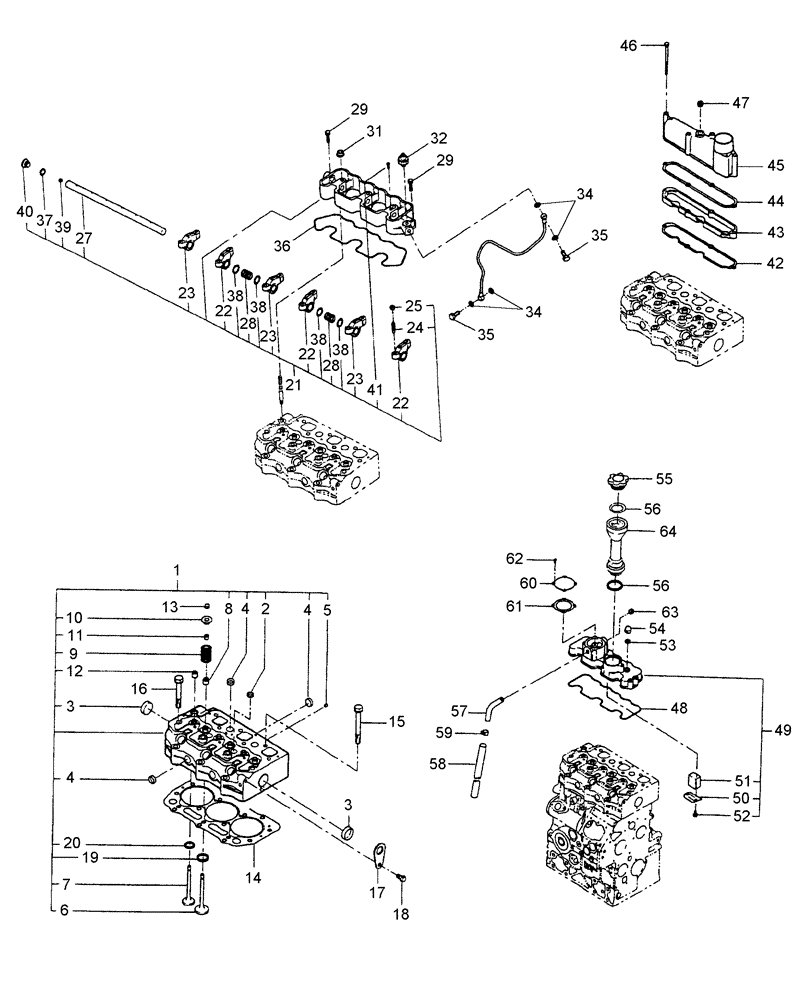

Запчасти Case IH DX24 (01.06) - CYLINDER HEAD, ROCKER ARM, HEAD COVER & INTAKE MANIFOLD (01) - ENGINE

1

SBA111010320

CYLINDER HEAD

1шт.

2

SBA064210015

CAP

Sealing

2шт.

3

SBA064210030

PLUG,30mm

2шт.

4

SBA064210018

PLUG

Sealing

6шт.

5

SBA198466030

PLUG

6.5 x 7mm

2шт.

6

SBA120166360

STD INLET VALVE

STD ENGINE INLET VALVE

3шт.

7

SBA120176250

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

3шт.

8

SBA120406070

SEAL

Intake

3шт.

9

SBA198216700

SPRING

6шт.

10

SBA120186080

RETAINER

6шт.

11

SBA120226070

RETAINER

Keeper, Valve

12шт.

12

SBA120406050

SEAL

Exhaust

3шт.

13

SBA120216040

CAP

6шт.

14

SBA111147560

CYLINDER HEAD GASKET

T=1.2

1шт.

14

SBA111147570

CYLINDER HEAD GASKET

T=1.3

1шт.

15

SBA111136440

BOLT

Head

11шт.

16

SBA111136450

BOLT

Head

3шт.

17

SBA195816520

BRACKET

Hanger

2шт.

18

SBA011510816

BOLT

M8 x 16

2шт.

19

NS

NOT SERVICED

Valve Seat

3шт.

20

NS

NOT SERVICED

Valve Seat

3шт.

21

SBA120036890

ROCKER ARM

1шт.

22

SBA120356200

ROCKER ARM

Intake

3шт.

23

SBA120356210

ROCKER ARM

Exhaust

3шт.

24

SBA199486220

ADJUSTMENT SCREW

6шт.

25

SBA020109076

NUT

6шт.

27

SBA120316171

SHAFT

Rocker

1шт.

28

SBA198216780

SPRING

2шт.

29

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

2шт.

30

SBA012109177

STUD

3шт.

31

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

32

SBA185246060

SENDER UNIT

Engine Oil Pressure

1шт.

33

SBA140607270

PIPE

Oil

1шт.

34

SBA140996260

SEAL

4шт.

35

SBA198486780

BANJO BOLT

Eye

2шт.

36

SBA052109101

SEAL

1шт.

37

SBA052100120

O-RING

1шт.

38

SBA199280280

CLUTCH

4шт.

39

SBA199486320

SCREW

1шт.

40

SBA198436150

PLUG

1шт.

41

44334

SCREW,Cross Pan Hd, M4 x 12

1шт.

42

SBA135996940

GASKET

1шт.

43

SBA135597750

SPACER

1шт.

44

SBA135996930

GASKET

1шт.

45

SBA135597740

INLET MANIFOLD

1шт.

46

SBA011310680

BOLT

4шт.

47

SBA064400020

PLUG

1шт.

48

SBA052109099

GASKET

1шт.

49

SBA111217480

COVER

Head

1шт.

50

SBA110666050

DEFLECTOR

1шт.

51

SBA110666060

FILTER SCREEN

1шт.

52

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

53

SBA140996260

SEAL

3шт.

54

SBA024600008

NUT

Cap

3шт.

55

SBA198436010

FILLER CAP

1шт.

56

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

2шт.

57

SBA110986350

RIGID TUBE

1шт.

58

SBA068122560

TUBE

1шт.

59

SBA067200150

CLIP

1шт.

60

SBA110566120

COVER

Breather

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

61

SBA110998330

GASKET

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

62

SBA011100408

BOLT

4шт.

63

SBA064400020

PLUG

1шт.

64

SBA110466031

TUBE

Filler

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.
