(01.02) - CYLINDER BLOCK

Запчасти Case IH DX24 (01.02) - CYLINDER BLOCK (01) - ENGINE

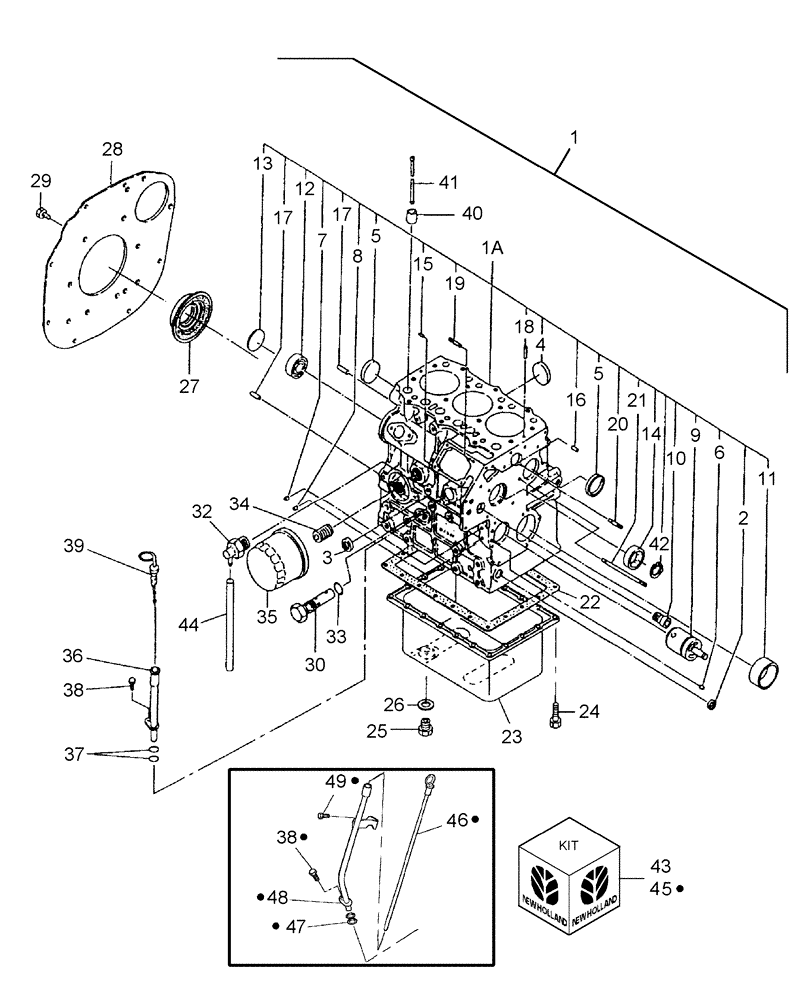

Схема запчастей Case IH DX24 - (01.02) - CYLINDER BLOCK (01) - ENGINE
4
23
48
47
38
17
5
41
21
3
45
42
11
49
13
34
5
6
40
8
26
30
17
1
7
9
38
35
37
33
19
44
28
46
39
16
22
29
32
18
15
10
24
12
43
1a
36
14
27
2
20
25
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA138633

ENGINE

1шт.

1

SBA138633ER

REMAN-REPLACEMENT EN

DX24 (12/03-)

1шт.

1

SBA138633EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

SBA138633R

REMAN-REPLACEMENT EN

DX24 (12/03-)

1шт.

1

SBA138633C

CORE-REPLACEMENT ENG

Return Number

1шт.

2

SBA064210015

CAP

Sealing

1шт.

3

SBA064210025

PLUG,25mm

1шт.

4

SBA064210035

SEALING ELEMENT

Sealing

2шт.

5

SBA064210040

CAP

Sealing

2шт.

6

SBA198466050

PLUG

Blank

1шт.

7

SBA198466010

PLUG

Blank 8.4mm

4шт.

8

SBA198466030

PLUG

Blank 6.5 x 7mm

4шт.

9

SBA165296142

GEAR

1шт.

10

SBA198517090

BUSHING

1шт.

11

SBA198517591

BUSHING

Standard

1шт.

12

SBA040106203

BALL BEARING,17mm ID x 40mm OD x 12mm W

1шт.

13

SBA064100045

PLUG

Expansion

1шт.

14

SBA042303015

NEEDLE BEARING

1шт.

15

SBA030500512

PIN

Dowel

2шт.

16

SBA030500616

DOWEL,M6 x 16

2шт.

17

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

18

SBA030309005

PIN

Spring

2шт.

19

SBA012110620

STUD

2шт.

20

SBA012110635

STUD

1шт.

21

SBA012110660

STUD

1шт.

22

SBA110996800

GASKET

1шт.

23

SBA110708340

ENGINE OIL PAN

1шт.

24

SBA010109235

BOLT

20шт.

25

SBA010411212

DRAIN PLUG,M12 x 1.25

1шт.

26

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Sealing

2шт.

27

SBA050209107

SEAL

Oil

1шт.

28

SBA110367710

PLATE

Rear

1шт.

29

SBA011511020

BOLT,M10 x 20

8шт.

30

SBA140036220

VALVE PRESSURE RELIE

1шт.

32

SBA198736270

DRAINCOCK/TAP SUPPLY

1шт.

33

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

34

SBA140546020

ADAPTER

1шт.

35

87409203

ENGINE OIL FILTER

1шт.

36

SBA110756630

GUIDE

Gauge, Used Without Loader

1шт.

37

SBA052100100

O-RING

1шт.

38

SBA011510816

BOLT

M8 x 16

2шт.

39

SBA198416590

LEVEL GAUGE

Used Without Loader

1шт.

40

SBA120116160

TAPPET

6шт.

41

SBA120456222

ROD

Push

6шт.

42

SBA036509005

SNAP RING

1шт.

43

86590273

HEATER

Kit, Engine Heater Coolant Includes: Heater Assy., NSS & Cord Assy., 86539137

1шт.

44

SBA068118250

PLASTIC-RUBBER TUBE

Vinyl

1шт.

NOT INCLUDED IN ENGINE LONG BLOCK

1шт.

45

87024506

KIT

Oil Level Dipstick, With Loader Includes: Ref. 45 thru 48

1шт.

46

87025356

GAUGE

Dipstick

1шт.

47

SBA052100100

O-RING

2шт.

48

SBA110756201

GUIDE

Dipstick

1шт.

49

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

Выбрано товаров: 53
