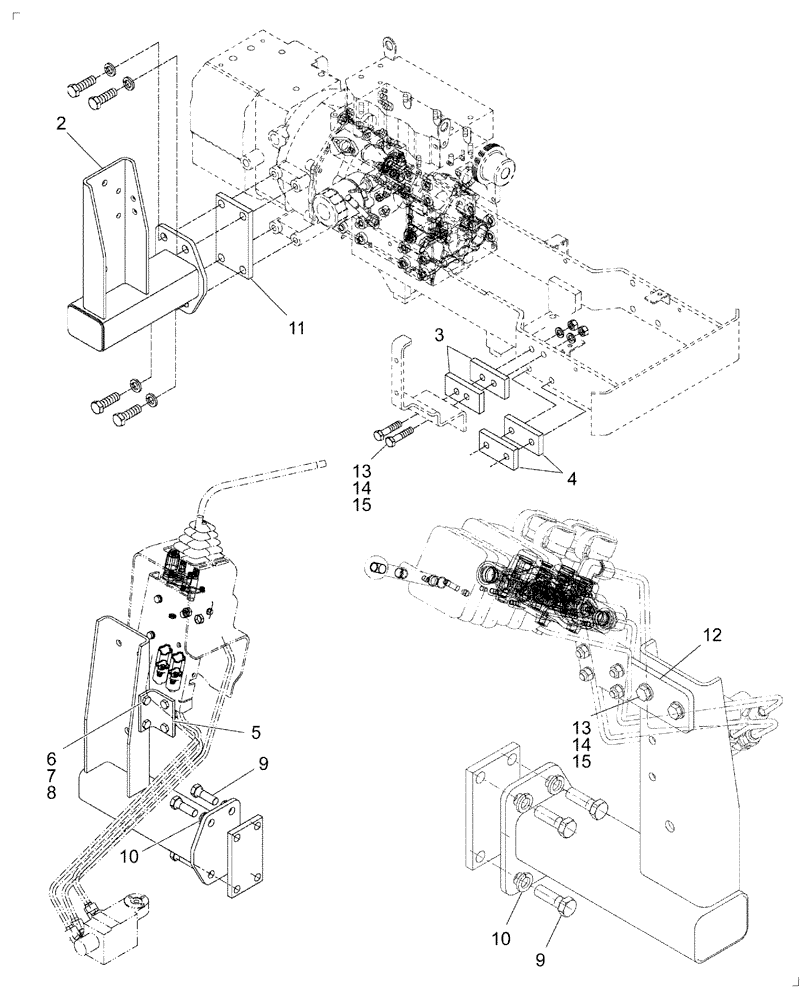

Запчасти Case IH DX23 (07.07.02) - 2-SPOOL VALVE MOUNT, NON- LOADER 710330036 (07) - HYDRAULIC SYSTEM

1

710330036

DIA KIT, ADD PROD

Remote Control Valve Mount, Non-Loader Includes: Ref. 2-15

1шт.

2

87618029

SUPPORT

Tower

1шт.

3

87042268

SPACER

Front, 70mm holes

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

4

86403587

SPACER

Front, 56mm holes

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

5

87618033

BRACKET

Angle

1шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

6

86500689

NUT,M10 x 1.5, Cl 10

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

7

140028

WASHER,10.2mm ID x 18.1mm OD x 2.2mm Thk

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

8

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

9

120090

BOLT,Hex, M16 x 50mm, Cl 8.8

4шт.

10

86729275

LOCK WASHER,5/8 0.634 CST ZND

Washer, Lock, 5/8"

4шт.

11

86982746

PLATE

Plate, Spacer-Rear

1шт.

12

87618026

MOUNTING PARTS

1шт.

Current Style - For Front Two Spool Valve Kit 715429056

1шт.

13

300512

BOLT,Hex, M12 x 55mm, Cl 8.8

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

13

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2шт.

Current Style - For Front Two Spool Valve Kit 715429056

1шт.

14

337475

NUT,M12, Cl 10

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

14

829-1412

NUT,M12, Cl 10.9

2шт.

Current Style - For Front Two Spool Valve Kit 715429056

1шт.

15

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

2шт.

Earlier Style - For Front Two Spool Valve Kits 715429016 & 715429026

1шт.

15

896-12012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

Current Style - For Front Two Spool Valve Kit 715429056

1шт.
