Запчасти Case IH DX23 (07.05) - HYDRAULIC PUMP & PIPING (07) - HYDRAULIC SYSTEM

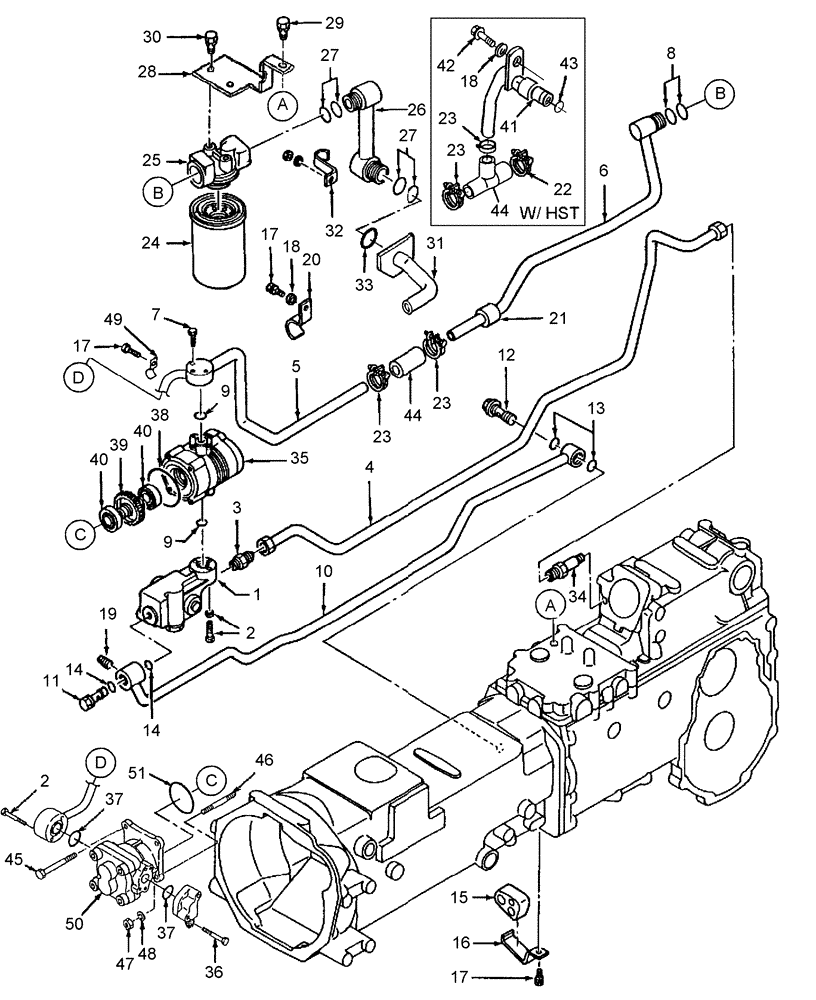

Схема запчастей Case IH DX23 - (07.05) - HYDRAULIC PUMP & PIPING (07) - HYDRAULIC SYSTEM
26
21
14
20
4
17
2
14
24
37
13
33
10
22
31
37
43
47
23
17
44
23
16
25
44
12
18
23
30
23
35
49
40
51
34
27
46
41
5
7
11
15
29
8
1
38
32
45
9
50
27
36
19
48
17
40
2
39
42
6
9
3
28
18

Артикул

Название

Примечание

Количество

1

SBA340016290

BLOCK

Manifold Diverter Refer to Fig. 07.11 For Breakdown

1шт.

2

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

W/HST

5шт.

2

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

W/9 x 3

3шт.

3

SBA340671290

ADAPTER

HST

1шт.

4

SBA340707320

RIGID TUBE

Oil

1шт.

5

SBA340708550

PIPE

Oil

1шт.

6

SBA340707370

RIGID TUBE

Oil, W/HST

1шт.

7

SBA011310635

CAPTIVE WASHER SCREW,Hex, M6 x 35, Cl 8.8

3шт.

8

SBA052100250

O-RING,3.5mm Thk x 24.7mm ID, 90 Duro

2шт.

9

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

10

SBA340707350

RIGID TUBE

Oil

1шт.

11

SBA398481300

BOLT

Eye

1шт.

12

SBA398480240

BANJO BOLT,3/8"

1шт.

13

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

14

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

2шт.

15

SBA398115460

INSULATOR BLOCK

Rubber

1шт.

16

SBA399112090

CLAMP

1шт.

17

SBA011510816

BOLT

M8 x 16

3шт.

18

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

19

SBA064500030

PLUG,3/8"

W/HST

1шт.

19

SBA064510030

PLUG

W/9 x 3

1шт.

20

SBA399112071

CLAMP

1шт.

21

SBA398115470

RUBBER BUSHING

W/HST

1шт.

21

SBA398115480

RUBBER BUSHING

W/9 x 3

1шт.

22

SBA398750260

HOSE CLAMP

W/HST

1шт.

22

SBA398750420

HOSE CLAMP

1шт.

23

SBA398750420

HOSE CLAMP

2шт.

24

87300044

HYDRAULIC OIL FILTER

1шт.

25

SBA340750310

BODY

Oil Filter

1шт.

26

SBA340707360

RIGID TUBE

Oil

1шт.

27

SBA052100250

O-RING,3.5mm Thk x 24.7mm ID, 90 Duro

1шт.

28

SBA360560250

SUPPORT

Filter

1шт.

29

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

1шт.

30

SBA011511020

BOLT,M10 x 20

2шт.

31

SBA340702490

RIGID TUBE

Oil

1шт.

32

SBA399112080

CLAMP

1шт.

33

SBA052100250

O-RING,3.5mm Thk x 24.7mm ID, 90 Duro

1шт.

34

SBA340673250

ADAPTER

1шт.

35

SBA340451060

HYDRAULIC PUMP

1шт.

36

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

2шт.

37

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

38

SBA052310700

O-RING

1шт.

39

SBA340460180

GEAR

Drive

1шт.

40

SBA040106004

BALL BEARING

2шт.

41

SBA340709190

PIPE

Oil, HST

1шт.

42

SBA398480240

BANJO BOLT,3/8"

1шт.

43

SBA052300250

O-RING

HST

2шт.

44

SBA398115440

HYD CONNECTOR

Hose, W/HST

1шт.

44

SBA398115831

RUBBER BUSHING

Hose, W/9 x 3

1шт.

45

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

2шт.

46

SBA012110865

STUD

2шт.

47

SBA021500008

NUT,M8

2шт.

48

E630153S71

LOCK WASHER,M8

Spring

2шт.

49

SBA399112550

CLAMP

1шт.

50

SBA340450970

PUMP

Hydraulic System, Refer to Fig. 07.05.01 For Breakdown

1шт.

51

SBA052300600

O-RING,G60

1шт.

52

SBA340622130

FLANGE

1шт.

Выбрано товаров: 57
