Запчасти Case IH DX23 (07.04) - SELF CENTERING REAR REMOTE CONTROL VALVE - 710366146 (07) - HYDRAULIC SYSTEM

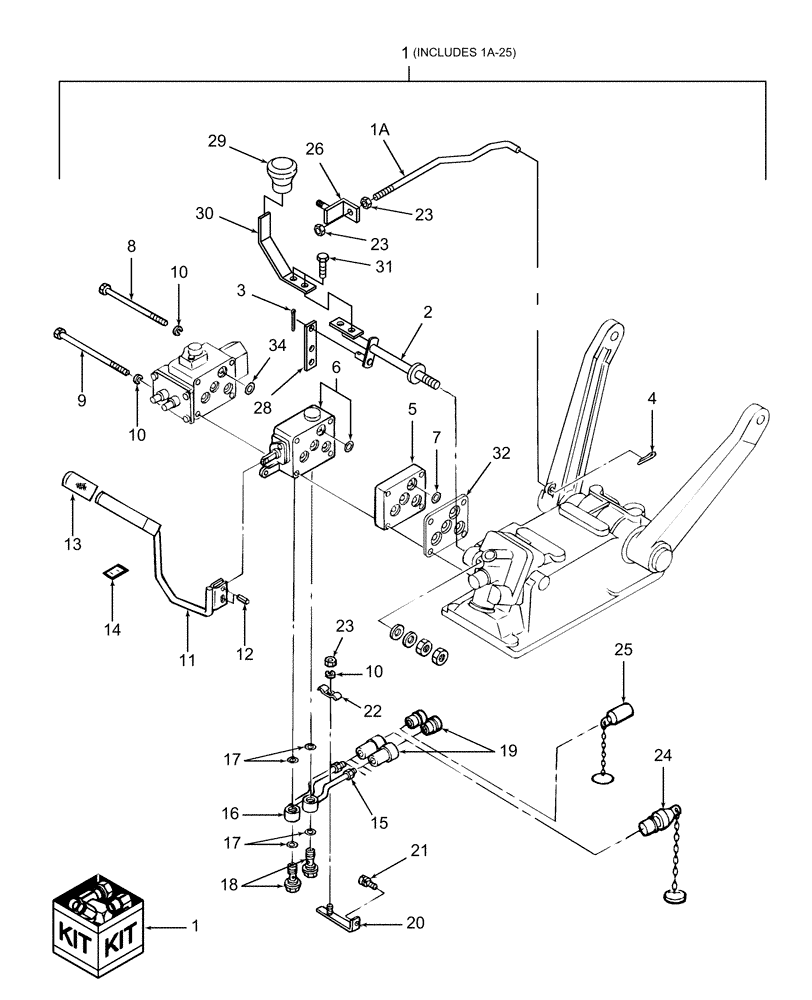

Схема запчастей Case IH DX23 - (07.04) - SELF CENTERING REAR REMOTE CONTROL VALVE - 710366146 (07) - HYDRAULIC SYSTEM
1a
13
31
21
34
9
8
12
14
3
23
16
10
17
22
10
17
29
23
5
28
11
4
1
10
26
15
2
7
19
1
25
30
32
6
18
23
20
24

Артикул

Название

Примечание

Количество

1

710366146

REAR REMOTE KIT

Valve, Self Centering Rear Remote

1шт.

Order thru Wholegoods

1шт.

1a

SBA344210681

ROD

1шт.

2

SBA340106290

LEVER

Control

1шт.

3

SBA030102020

COTTER PIN

1шт.

4

SBA030102516

COTTER PIN

1шт.

5

SBA340160600

SPACER

1шт.

6

SBA340015230

HYDRAULIC VALVE

Remote Control, Refer to Fig. 07.04.01 For Breakdown

1шт.

Remote W/2 Couplers for Rear Implement Hook-Ups

1шт.

7

SBA052110160

O-RING

4шт.

8

SBA010109398

BOLT

M8 x 130

2шт.

9

SBA010109399

BOLT

M8 x 150

2шт.

10

E630153S71

LOCK WASHER,M8

Spring

5шт.

11

SBA340106230

LEVER

Control

1шт.

12

130045

PIN,5mm OD x 26mm L, Slotted

2шт.

13

SBA398181300

HANDLE GRIP

1шт.

14

SBA390372590

DECAL

1шт.

15

SBA340707470

RIGID TUBE

Oil

1шт.

16

SBA340707460

RIGID TUBE

Oil

1шт.

17

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

4шт.

18

SBA398480240

BANJO BOLT,3/8"

2шт.

19

SBA340631580

FITTING

2шт.

O-Ring, 3/32" Wide, 11/16" I.D., 7/8" O.D., in Coupler. Procure Locally

1шт.

20

SBA340801520

BRACKET

1шт.

21

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

1шт.

22

SBA399113150

CLAMP

1шт.

23

9706690

NUT,M8 x 1.25, Cl 8

3шт.

24

SBA340490249

DUST CAP

Female

2шт.

25

SBA340490250

DUST CAP

Male

2шт.

26

SBA340300090

STOP

Lever

1шт.

28

SBA340121130

LEVER

1шт.

29

SBA398180610

HANDLE GRIP

1шт.

30

SBA340122250

LEVER

Control

1шт.

31

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

1шт.

32

SBA344990320

GASKET

1шт.

33

SBA390372600

DECAL

1шт.

Not Illustrated

1шт.

34

SBA052110140

O-RING

ID .538" X OD .744" X .092" thick

4шт.

Выбрано товаров: 38
