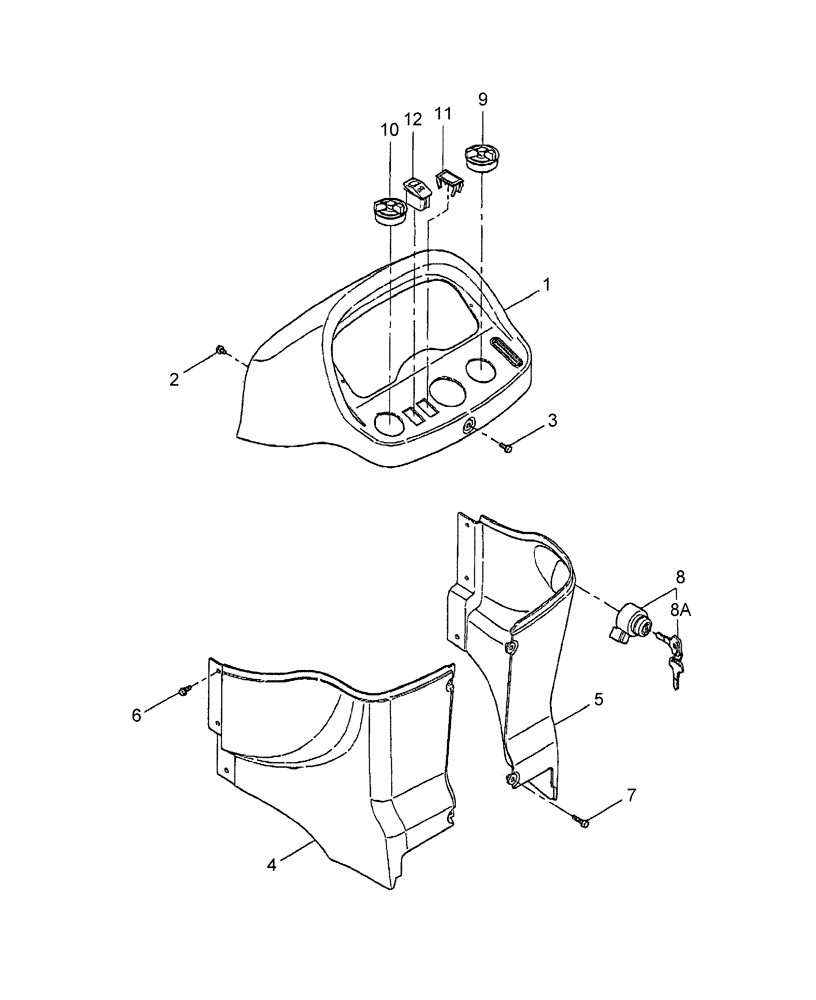

Запчасти Case IH DX23 (06.04) - DASHBOARD (06) - ELECTRICAL SYSTEMS

1

SBA350711940

COVER

1шт.

2

SBA010800610

SCREW

2шт.

3

SBA010800616

BOLT

1шт.

4

SBA350711960

COVER

L

1шт.

5

SBA350711980

COVER

R

1шт.

6

SBA010800616

BOLT

5шт.

7

SBA010800625

BOLT

1шт.

8

SBA385202591

SWITCH

Ignition Includes: Ref. 8A-8C

1шт.

8a

SBA385210360

IGNITION KEY

1шт.

8b

SBA385240290

RING NUT

Ring, Nut

1шт.

Not Illustrated

1шт.

8c

SBA385240300

WASHER

Washer

1шт.

Not Illustrated

1шт.

9

SBA385202561

SWITCH ASSY

Combination Switch for Head Lamps, Front Work Lamps & Tail LIghts

1шт.

10

SBA385202421

SWITCH ASSY

Hazard Turn Signal Combination

1шт.

11

SBA385830090

CAP

1 HST, 2 9 x 3

1/2шт.

11

86539709

PLUG

1/2шт.

USED ON & ABOVE PIN #HDG310005 DX23 & HDG410010 DX26

1шт.

12

SBA385202610

SWITCH ASSY

HST

1шт.

13

SBA015209013

SCREW

Screw

2шт.

14

SBA390199000

PLATE

Black Color, added to right & left side of dashboard

2шт.

Not Illustrated

1шт.
