(04.03) - STEERING COLUMN, GEARBOX & PIPING, W/POWER STEERING

Запчасти Case IH DX23 (04.03) - STEERING COLUMN, GEARBOX & PIPING, W/POWER STEERING (04) - FRONT AXLE & STEERING

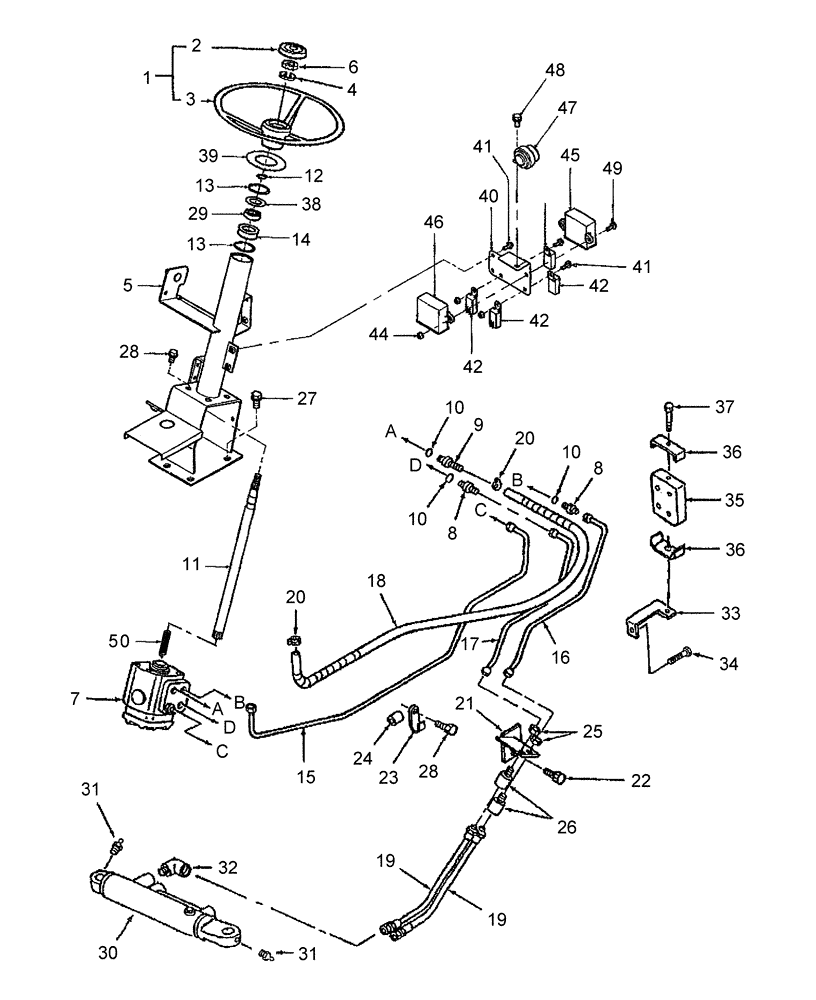

Схема запчастей Case IH DX23 - (04.03) - STEERING COLUMN, GEARBOX & PIPING, W/POWER STEERING (04) - FRONT AXLE & STEERING
12
28
26
23
25
2
38
16
10
34
39
20
13
22
10
30
41
42
27
13
29
18
40
9
46
37
33
24
3
7
36
36
8
32
14
8
20
11
48
45
42
19
42
35
28
44
10
15
19
41
4
50
21
31
31
5
47
49
17
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA334300150

STEERING WHEEL

Includes: Ref. 2 thru 3

1шт.

2

SBA334320160

CAP

1шт.

3

SBA334310200

STEERING WHEEL

1шт.

4

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

1шт.

5

SBA334451120

STEERING COLUMN

PLATE, SET

1шт.

6

SBA020800012

NUT

M12

1шт.

7

SBA334011082

STEERING ASSY

1шт.

8

SBA340671220

ADAPTER

2шт.

9

SBA340671500

ADAPTER

1шт.

10

SBA052100140

O-RING

3шт.

11

SBA334110621

SHAFT

Steering

1шт.

12

370016

SNAP RING,M17, Ext

1шт.

13

300645

SNAP RING,M42, Int

2шт.

14

SBA398115510

RUBBER RING

1шт.

15

SBA340707310

RIGID TUBE

Pressure Line

1шт.

16

SBA340707300

RIGID TUBE

Right Turn Line

1шт.

17

SBA340707290

RIGID TUBE

Left Turn Line

1шт.

18

SBA340690380

HOSE

Tank, Return, Serial Range: Line-Tank

1шт.

19

SBA340690390

HOSE

Oil

2шт.

20

SBA398750430

BAND

Hose

2шт.

21

SBA340800970

BRACKET

1шт.

22

SBA011611220

BOLT

M12 x 20

1шт.

23

SBA399110210

CLAMP

1шт.

24

SBA198516390

RUBBER BUSHING

1шт.

25

SBA020800014

NUT,M14 x 1.5

2шт.

26

SBA340671381

ADAPTER

2шт.

27

SBA011511225

BOLT

M12 x 25

2шт.

28

SBA011611020

BOLT

M10 x 20

4шт.

29

SBA040146003

BALL BEARING

Ball

1шт.

30

SBA344951990

CYLINDER

Cylinder

1шт.

31

SBA060620000

LUBE NIPPLE

2шт.

32

SBA340670280

ADAPTER

2шт.

33

SBA340801510

BRACKET

1шт.

34

SBA010800816

BOLT

M8 x 16

1шт.

35

SBA398115630

CLAMP

1шт.

36

SBA399112130

CLAMP

2шт.

37

SBA011310650

BOLT

M6 x 50

1шт.

38

SBA399211550

SPACER

1шт.

39

SBA398122000

SEAL

Rubber

1шт.

40

SBA399569221

PLATE

Plate

1шт.

41

SBA010800616

BOLT

M16 x 16

4шт.

42

SBA385230300

RELAY

Flasher

3шт.

43

SBA385230320

FLASHER UNIT

Flasher

1шт.

44

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

4шт.

45

SBA385871190

CONTROL BLOCK

1шт.

46

SBA385871260

CONTROL UNIT

1шт.

46

SBA385871261

ECU

Safety

1шт.

USED ON & ABOVE PIN Z7NZE1001-DX23 9X3, Z7NZF1001-DX23 HST, Z7NZG1001 DX26 HST

1шт.

47

SBA385250180

BUZZER

Horn, Back

1шт.

48

SBA010800816

BOLT

M8 x 16

1шт.

49

SBA010800620

BOLT

M6 x 20

2шт.

50

SBA398214400

SPRING

1шт.
