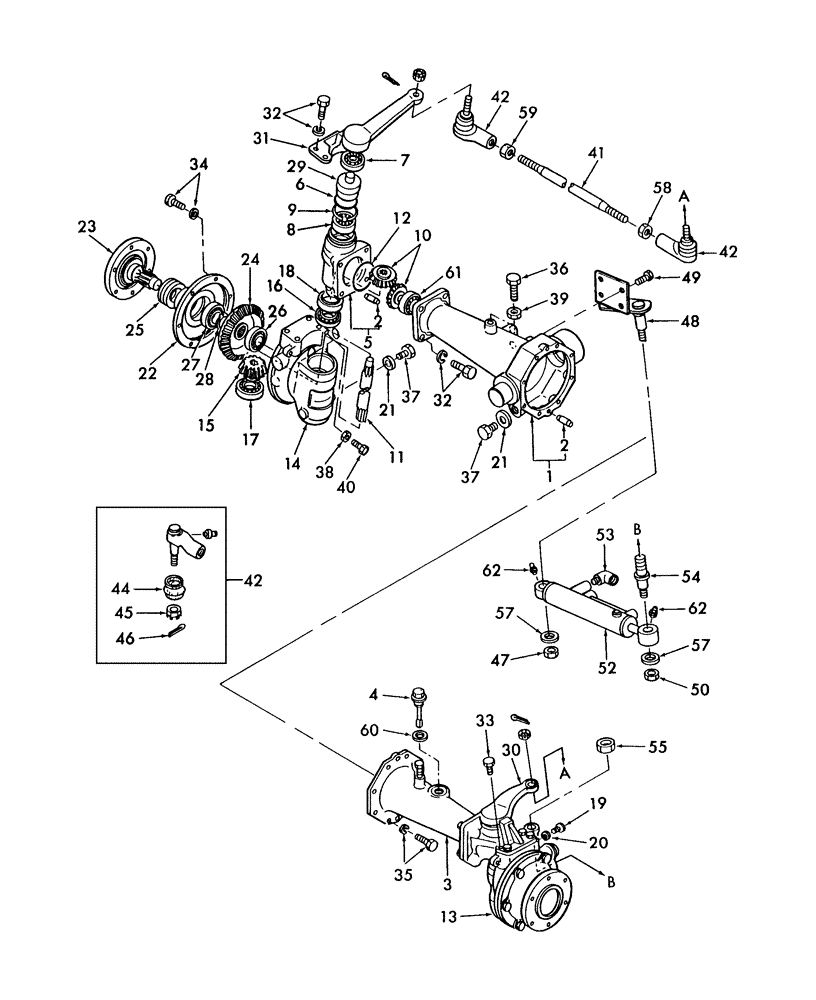

Запчасти Case IH DX23 (04.01) - FRONT AXLE W/POWER STEERING (04) - FRONT AXLE & STEERING

1

SBA326021840

SUMP

Wheel Shaft Case, R.H.

1шт.

2

SBA030500820

PIN

Dowel

4шт.

3

SBA326344620

CASE

Wheel Shaft, L.H.

1шт.

4

SBA398400440

DIPSTICK

Gauge

1шт.

5

SBA322017631

CASING

Idler

2шт.

6

SBA052300400

O-RING

2шт.

7

SBA040136204

BEARING ASSY,20mm ID x 47mm OD x 14mm W

2шт.

8

SBA040106303

BALL BEARING

2шт.

9

300647

SNAP RING,M47, Int

2шт.

10

SBA326240290

IDLER PINION

Final

4шт.

11

SBA322511091

SHAFT

Drive, Idler

2шт.

12

SBA052300650

O-RING,64.4mm ID x 3.1mm Width

2шт.

13

SBA322118241

CASE

Final, L.H.

1шт.

14

SBA322118251

CASE

Final, R.H.

1шт.

15

SBA326240680

BEVEL PINION

Final

2шт.

16

SBA042532006

BEARING ASSY,30mm ID x 55mm OD x 17mm W

2шт.

17

28042460

BALL BEARING,30mm ID x 55mm OD x 13mm W

2шт.

18

SBA050609043

SEAL

Oil, 35 mm x 55 mm x 15 mm

2шт.

19

SBA064600016

PLUG

M16

2шт.

20

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

2шт.

21

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

3шт.

22

SBA322213690

COVER

Case, Final

2шт.

23

SBA326312400

WHEEL SHAFT

2шт.

24

SBA326370830

BEVEL GEAR

Final

2шт.

25

SBA050609043

SEAL

Oil, 35 mm x 55 mm x 15 mm

2шт.

26

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

27

210064

BALL BEARING,30mm ID x 62mm OD x 16mm W

2шт.

28

370003

SNAP RING,M30, External

2шт.

29

SBA330310712

PIN

King

2шт.

30

SBA334525030

ARM

Knuckle, LH

1шт.

31

SBA334525020

ARM

Knuckle, R.H.

1шт.

32

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

12шт.

33

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

4шт.

34

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

12шт.

35

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

8шт.

36

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

37

SBA010301212

BOLT

M12 x 12

3шт.

38

9706690

NUT,M8 x 1.25, Cl 8

2шт.

39

100016

NUT,M10 x 1.5, Cl 8

2шт.

40

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

41

SBA334712040

STEERING TIE-ROD

1шт.

42

SBA334801390

TRACK ROD END ASSY

L.H.

1шт.

42

SBA334801360

TRACK ROD END ASSY

R.H.

1шт.

44

SBA334810207

PROTECTIVE COVER

Dust

2шт.

45

SBA334810209

SLOTTED NUT

M12 x 1.25

2шт.

46

SBA030103025

COTTER PIN

2шт.

47

SBA020800016

NUT

1шт.

48

SBA334650760

SUPPORT

1шт.

49

SBA011511225

BOLT

M12 x 25

4шт.

50

SBA022409003

NUT,U, M16 x 1.5, Cl 8

1шт.

52

SBA344952650

STEERING CYLINDER

1шт.

53

SBA340670280

ADAPTER

2шт.

54

SBA399612071

PIN

1шт.

55

SBA022509001

NUT,U, M20 x 1.5. Cl 8

1шт.

57

SBA399210710

WASHER

46 mm

2шт.

58

SBA020109029

NUT

1шт.

59

SBA020800014

NUT,M14 x 1.5

1шт.

60

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

1шт.

61

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

2шт.

62

SBA060620000

LUBE NIPPLE

2шт.
