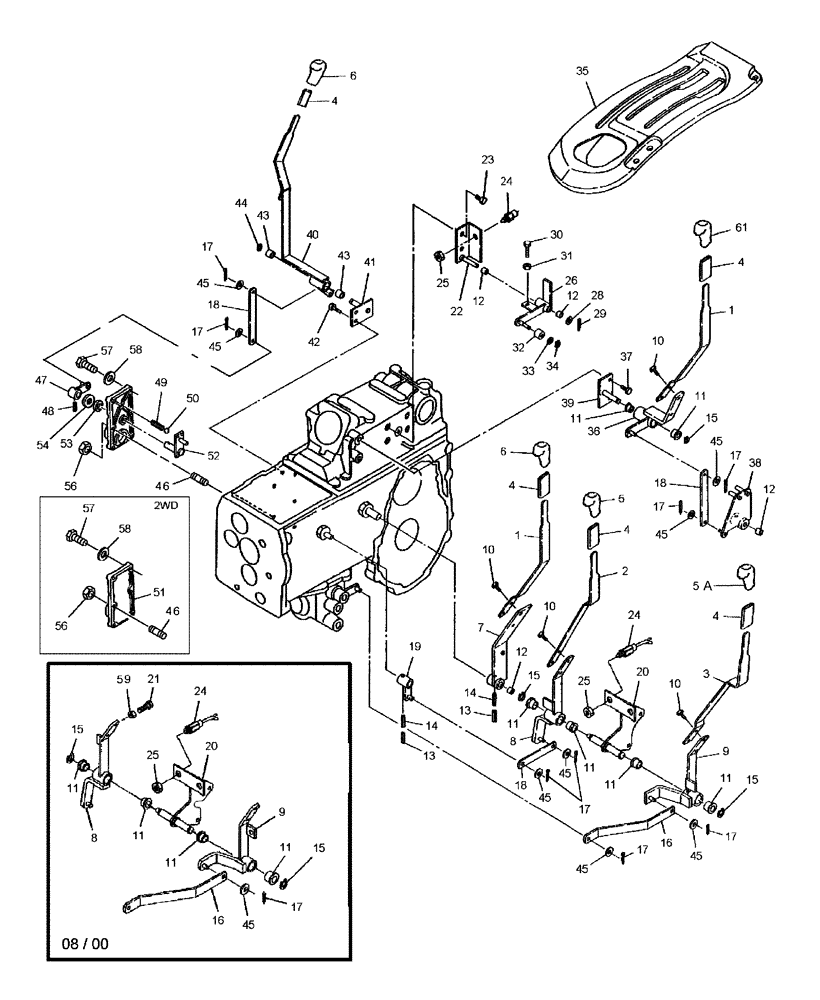

Запчасти Case IH DX23 (03.13) - GEARSHIFT LEVERS (03) - TRANSMISSION

1

SBA324112500

LEVER

Change, Range or 9 x 3

1шт.

2

SBA324112510

LEVER

Change, Rear PTO

1шт.

3

SBA324112520

LEVER

Change, Mid-PTO, HST

1шт.

4

SBA068109085

TUBE

Vinyl

3шт.

5

87301038

KNOB

(1) Used W/9 x 3 (2) Used W/HST, Rear PTO

1шт.

5a

87301033

KNOB

Mid PTO

1шт.

6

SBA398181970

GRIP

Black

2шт.

7

SBA324106440

LEVER

Change, Used W/HST

1шт.

8

SBA324106990

LEVER

Change, Rear PTO

1шт.

9

SBA324107000

LEVER

Change, Mid-PTO, W/HST

1шт.

10

SBA011810816

BOLT

M8 x 16, (4) Used W/9 x 3 & (6) Used W/HST

4/6шт.

11

SBA398511320

BUSHING

4шт.

12

SBA398511640

BUSHING

(1) Used W/9 x 3 & (3) Used W/HST

1/3шт.

13

300868

ROLL PIN,6mm OD x 36mm L, Slotted

M6 x 36

2шт.

14

SBA030303536

PIN

Spring

2шт.

15

SBA036800012

SNAP RING

2шт.

16

SBA324541220

PLATE

Shift, Used W/HST

1шт.

17

SBA030102516

COTTER PIN

6шт.

18

SBA324540460

LINK

Plate, Shift, (2) Used W/HST (3) Used W/9 x 3

2/3шт.

19

SBA324106450

LEVER

Change, PTO Rear

1шт.

20

SBA324501291

GUIDE

Shift

1шт.

21

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

(1) Used W/9 x 3 & (2) Used W/HST

1/2шт.

22

SBA385952530

BRACKET

HST

1шт.

23

SBA010800816

BOLT

HST

2шт.

24

SBA385201260

SWITCH

(1) Used W/9 x 3, (3) Used W/HST

1/3шт.

25

SBA020600014

NUT

M14, (1) Used W/9 x 3, (3) Used W/HST

1/3шт.

26

SBA334350180

LEVER

HST

1шт.

28

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

HST

1шт.

29

SBA030103225

COTTER PIN,M3 x 25 L

HST

1шт.

30

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

HST

1шт.

31

9706690

NUT,M8 x 1.25, Cl 8

HST

1шт.

32

SBA399760041

ROLLER

HST

1шт.

33

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

1шт.

34

SBA036800004

SNAP RING

HST

1шт.

35

SBA324611090

GUIDE

Lever, LH, 9 x 3

1шт.

35

SBA324611100

GUIDE

Lever, LH, HST

1шт.

36

SBA324106420

LEVER

Change, 9 x 3

1шт.

37

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

9 x 3

2шт.

38

SBA324107450

LEVER

Change, 9 x 3

1шт.

39

SBA324500830

GUIDE

Shift, 9 x 3

1шт.

40

SBA324107810

LEVER

Change, FWD, 9 x 3

1шт.

41

SBA324500230

GUIDE

Shift, FWD, 9 x 3

1шт.

42

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

FWD, 9 x 3

2шт.

43

SBA398511390

BUSHING

FWD, 9 x 3

2шт.

44

300625

SNAP RING,M16, Ext

FWD, 9 x 3

1шт.

45

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

6шт.

46

SBA012200825

STUD

Bolt, Stud

1шт.

47

SBA324102770

LEVER

Change, FWD

1шт.

48

300868

ROLL PIN,6mm OD x 36mm L, Slotted

M6 x 36, FWD

1шт.

49

SBA398210280

SPRING

FWD

1шт.

50

SBA048100010

BALL

Steel, FWD

1шт.

51

SBA322213260

COVER

Case, FWD

1шт.

52

SBA324200900

ARM

Shift, FWD

1шт.

53

SBA050203115

SEAL,28mm ID x 40mm OD x 8mm Thk

1шт.

54

SBA399211330

SPACER

1шт.

55

SBA012210825

STUD

Bolt

1шт.

56

SBA021500008

NUT,M8

1шт.

57

SBA010800825

BOLT

M8 x 25

5шт.

58

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal

5шт.

59

100016

NUT,M10 x 1.5, Cl 8

(1) Used w/9 x 3 & (2) Used w/HST

1/2шт.

61

87301029

KNOB

1шт.
