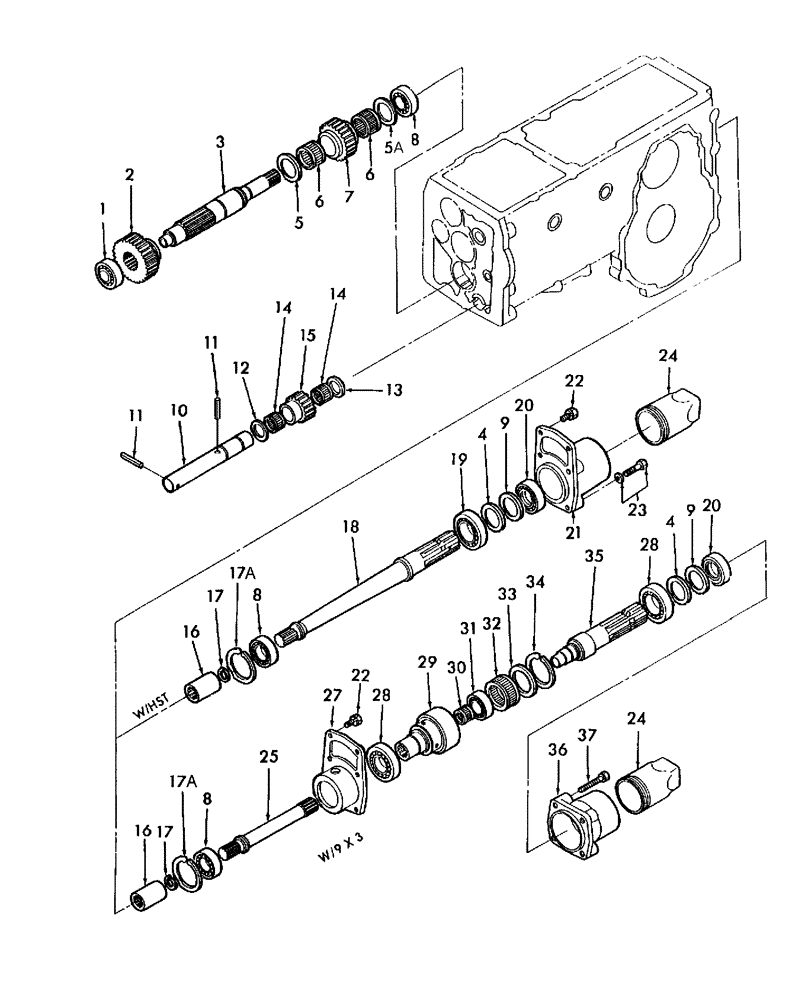

Запчасти Case IH DX23 (03.09) - PTO GEARS (03) - TRANSMISSION

1

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

2

SBA322341350

GEAR

Slide A

1шт.

3

SBA322571320

COUNTERSHAFT

PTO

1шт.

4

SBA199280640

SHIM,0.2mm Thk

1шт.

5

SBA399260890

THRUST WASHER

1шт.

5a

SBA399261760

THRUST WASHER

1шт.

6

SBA042200230

BEARING ASSY

2шт.

7

SBA322371910

GEAR

Counter, A

1шт.

8

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

9

SBA199280650

SHIM,0.5mm Thk

1шт.

10

SBA322560470

SHAFT

1шт.

11

300869

LOCK PIN,6mm OD x 40mm L, Slotted

2шт.

12

SBA399261760

THRUST WASHER

1шт.

13

SBA399260650

THRUST WASHER

1шт.

14

SBA042200525

BEARING ASSY

2шт.

15

SBA322371900

GEAR

Counter A

1шт.

16

SBA322610070

COUPLING

1шт.

17

11058076

SNAP RING,M22, Int

1шт.

17a

SBA036500050

RING

Snap

1шт.

18

SBA322590792

PTO SHAFT

1шт.

19

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

1шт.

20

5116701

SEAL,35mm ID x 55mm OD x 11mm Thk

Oil

1шт.

21

SBA322262550

SUPPORT

Bearing

1шт.

22

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

23

SBA011510845

BOLT

M8 x 45

4шт.

24

SBA378110021

GUARD

Cap, Grey, PTO

1шт.

25

SBA322571330

COUNTERSHAFT

1шт.

27

SBA322262540

SUPPORT

Holder, Bearing

1шт.

28

28042470

BALL BEARING,35mm ID x 62mm OD x 14mm W

2шт.

29

SBA322570730

COUNTERSHAFT

1шт.

29

SBA322570730

COUNTERSHAFT

1шт.

30

SBA042209025

NEEDLE

Bearing

1шт.

31

279593

BALL BEARING,25mm ID x 47mm OD x 12mm W

1шт.

32

SBA398560891

BEARING ASSY

1шт.

33

SBA399211340

SPACER

1шт.

34

SBA036500060

SNAP RING

1шт.

35

SBA322590511

PTO SHAFT

1шт.

36

SBA322262530

SUPPORT

Bearing

1шт.

37

SBA011510855

BOLT

4шт.
