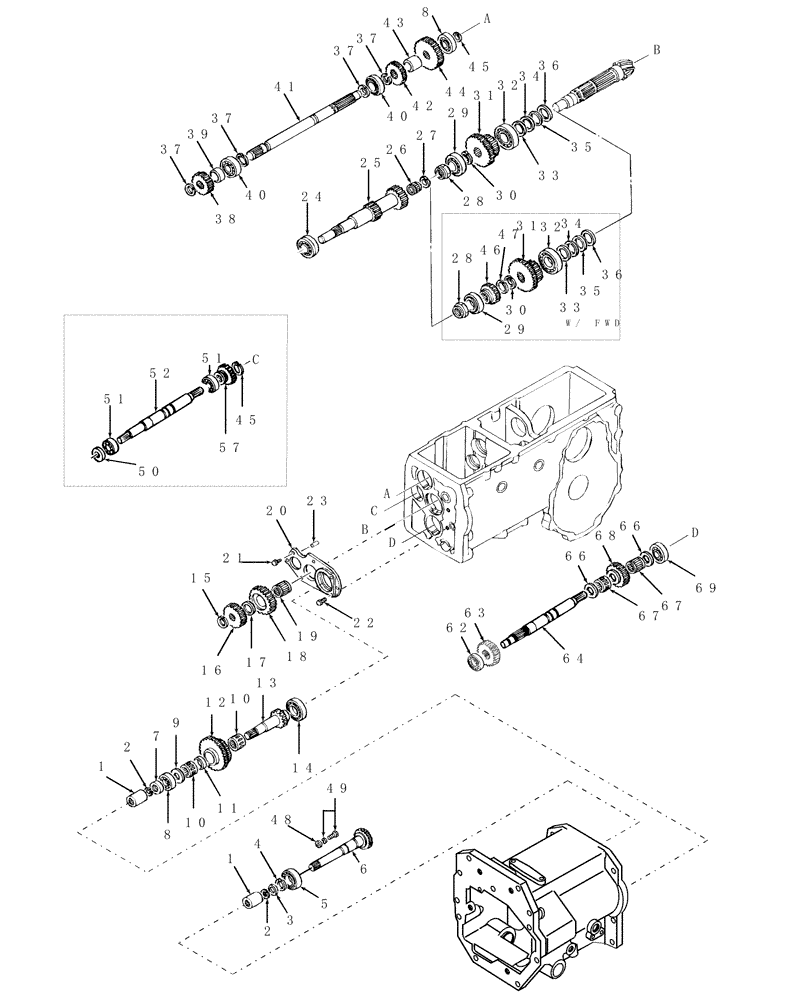

Запчасти Case IH DX23 (03.08) - REAR TRANSMISSION GEARS - W/HST (03) - TRANSMISSION

1

SBA322611130

COUPLING

2шт.

2

SBA036500018

SNAP RING

2шт.

3

SBA050209075

SEAL

1шт.

4

370002

CIRCLIP,M25, External

1шт.

5

SBA042109010

BALL BEARING

Roller

1шт.

6

SBA322513530

DRIVEN SHAFT

1шт.

7

SBA050202220

SEAL

1шт.

8

279592

BALL BEARING,20mm ID x 47mm OD x 14mm W

2шт.

9

SBA399261500

THRUST WASHER

1шт.

10

SBA042200525

BEARING ASSY

2шт.

11

SBA399233740

COLLAR

1шт.

12

SBA322382441

GEAR

Counter B

1шт.

13

SBA322512220

SHAFT

Drive

1шт.

14

SBA040109053

BALL

Bearing

1шт.

15

503275

SNAP RING,M22, Ext

1шт.

16

SBA322323790

GEAR

Fixing A

1шт.

17

SBA399260650

THRUST WASHER

1шт.

18

SBA322370970

GEAR

Counter A

1шт.

19

SBA042209024

NEEDLE

Bearing

1шт.

20

SBA322280151

SUPPORT

Bearing

1шт.

21

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

22

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

3шт.

23

SBA030500616

DOWEL,M6 x 16

6шт.

24

SBA040109029

BALL

Bearing

1шт.

25

SBA322531700

COUNTERSHAFT

1шт.

26

SBA042210422

NEEDLE BEARING

1шт.

27

370001

SNAP RING,M22, External

1шт.

28

SBA020109079

NUT

1шт.

29

SBA042530205

TAPERED BEARING

1шт.

30

SBA036100028

SNAP RING

1шт.

31

SBA322361400

GEAR

Slide

1шт.

32

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

1шт.

33

SBA199281210

SHIM,0.1mm Thk

1шт.

34

SBA199281220

SHIM,0.2mm Thk

1шт.

35

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

36

SBA199260040

THRUST WASHER

1шт.

37

370002

CIRCLIP,M25, External

4шт.

38

SBA322323780

GEAR

Fixing A

1шт.

39

SBA399233780

SPACER

1шт.

40

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

41

SBA322521280

MAIN SHAFT

1шт.

42

SBA322323760

GEAR

Fixing A

1шт.

43

SBA399233760

SPACER

1шт.

43a

SBA399234930

COLLAR

1шт.

44

SBA322323770

GEAR

Fixing A

1шт.

45

370024

CIRCLIP,M20, Ext

2шт.

46

SBA322326350

GEAR

Fixing A, on Shaft B

1шт.

47

SBA036100028

SNAP RING

1шт.

48

SBA026109017

WASHER

1шт.

49

SBA011510816

BOLT

M8 x 16

1шт.

50

SBA050209075

SEAL

1шт.

51

SBA040106004

BALL BEARING

2шт.

52

SBA322512231

DRIVE SHAFT

Drive, FWD

1шт.

57

SBA322342160

GEAR

Slide A

1шт.

62

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

63

SBA322341350

GEAR

Slide A

1шт.

64

SBA322571320

COUNTERSHAFT

1шт.

66

SBA399260890

THRUST WASHER

2шт.

67

SBA042200230

BEARING ASSY

2шт.

68

SBA322371910

GEAR

Counter, A

1шт.

69

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.
