Запчасти Case IH DX23 (03.03) - CLUTCH & CLUTCH CASE, W/HST (03) - TRANSMISSION

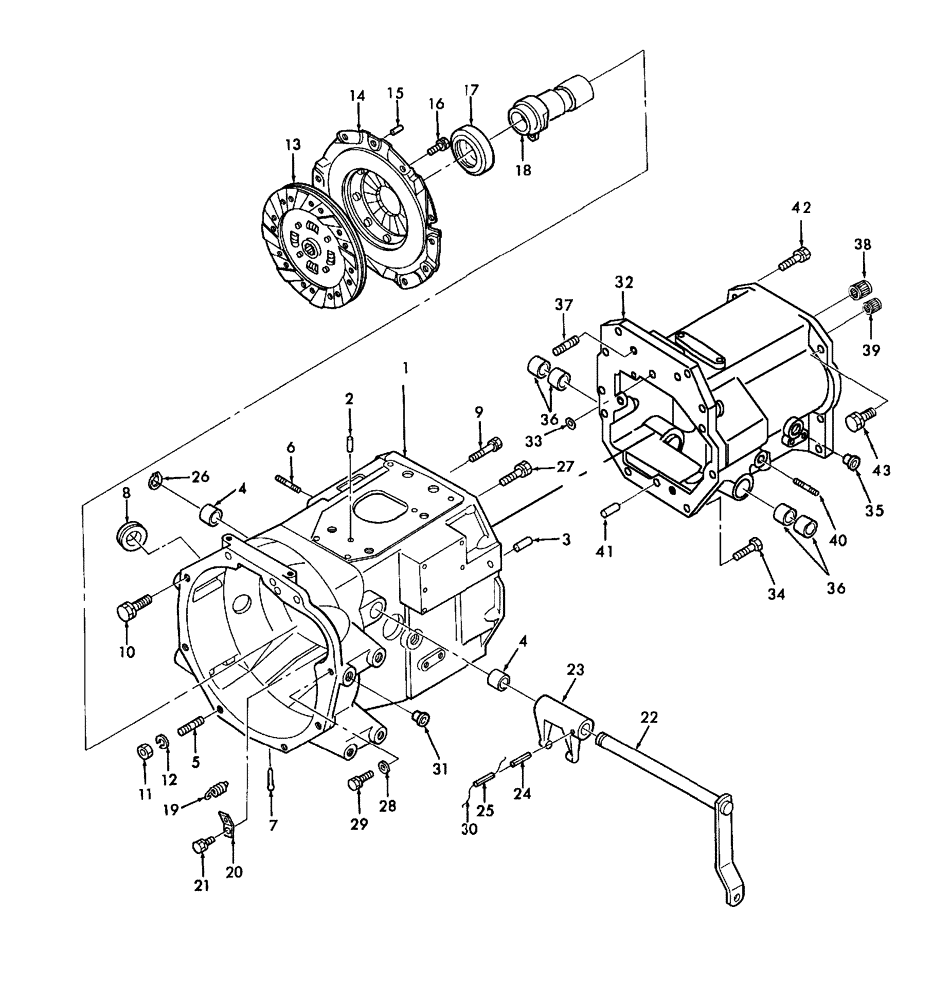

Схема запчастей Case IH DX23 - (03.03) - CLUTCH & CLUTCH CASE, W/HST (03) - TRANSMISSION
2
13
5
19
40
32
16
3
11
6
7
36
18
31
4
14
27
42
24
15
39
25
21
10
41
23
30
20
4
38
35
22
37
9
36
43
1
17
26
34
33
28
8
29
12

Артикул

Название

Примечание

Количество

1

SBA320011641

CASE

ASSY.

1шт.

2

SBA030500820

PIN

Dowel

2шт.

3

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

4

SBA398510010

DRIVE BUSHING

2шт.

5

SBA012111020

BOLT

Stud

2шт.

6

SBA012110635

STUD

1шт.

7

SBA030104020

PIN

Split

1шт.

8

SBA398110760

COVER

Rubber, 33 mm

1шт.

9

SBA011510850

BOLT,M8 x 50mm

2шт.

10

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

3шт.

11

SBA021000010

NUT

2шт.

12

892-11010

LOCK WASHER,M10

2шт.

13

SBA320400242

DISC

Clutch

1шт.

14

SBA320450160

PLATE

Pressure

1шт.

14

SBA320450160R

REMAN-CLUTCH PLATE

DX23

1шт.

14

SBA320450160C

CORE-CLUTCH PLATE

Return Number

1шт.

15

SBA030500820

PIN

Dowel

3шт.

16

SBA011510816

BOLT

M8 x 16

6шт.

17

SBA398560110

BEARING ASSY

Release

1шт.

17

SBA398560111

BEARING ASSY

Release

1шт.

USED ON & ABOVE PIN Z7NZG1001

1шт.

18

SBA320310250

HUB

Release

1шт.

19

SBA398210070

SPRING

1шт.

20

SBA320160120

HOOK

Hanger, Spring

1шт.

21

SBA011510816

BOLT

M8 x 16

1шт.

22

SBA320201070

CLUTCH INPUT SHAFT

1шт.

23

SBA320260131

FORK

Clutch

1шт.

24

SBA030300632

SLOTTED PIN,M6 x 32

1шт.

25

SBA030300532

LOCK PIN

Spring

1шт.

26

84021874

SNAP RING,M18, Ext

1шт.

27

SBA011611035

BOLT

1шт.

28

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

29

SBA011510840

BOLT,M6 x 40mm

1шт.

30

NS

NOT SERVICED

WIRE

1шт.

31

SBA398460050

PLUG

Blank

8шт.

32

SBA322017621

CASING

Mission Includes: Ref. 36 thru 41

1шт.

33

SBA052100120

O-RING

1шт.

34

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

8шт.

35

SBA398460170

PLUG

Blank

1шт.

36

SBA398510070

BUSHING

4шт.

37

SBA012111050

STUD

Bolt

2шт.

38

SBA042302525

BEARING ASSY

Needle

1шт.

39

SBA042309015

NEEDLE

Bearing

1шт.

40

SBA012111235

STUD

Bolt

1шт.

41

SBA030500820

PIN

Dowel

2шт.

42

SBA011511035

BOLT,M10 x 35

1шт.

43

SBA011511240

BOLT,M12 x 40

8шт.

Выбрано товаров: 47
