(02.04) - AIR CLEANER

Запчасти Case IH DX23 (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT

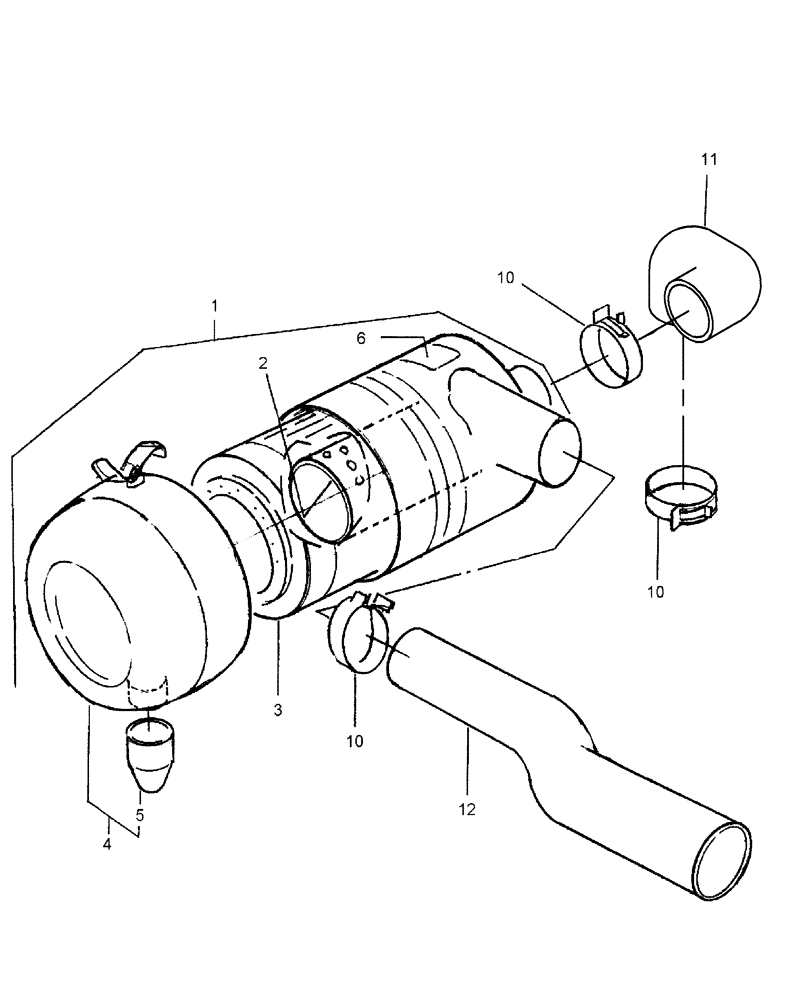

Схема запчастей Case IH DX23 - (02.04) - AIR CLEANER (02) - ENGINE EQUIPMENT
6
3
10
10
12
2
5
1
4
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA314500820

AIR CLEANER

Includes: Ref. 2-5

1шт.

2

SBA314531175

AIR FILTER

In

1шт.

3

SBA314531174

AIR FILTER

Out

1шт.

4

SBA314531170

CAP ASSY.

1шт.

5

SBA314531173

CONTROL VALVE

1шт.

6

SBA314531169

PLATE

Caution

1шт.

10

SBA067100056

CLAMP

Clamp

3шт.

11

SBA314541720

HOSE

Rear

1шт.

12

SBA314541601

HOSE

Front

1шт.
