(02.03) - FUEL TANK & RELATED PARTS

Запчасти Case IH DX23 (02.03) - FUEL TANK & RELATED PARTS (02) - ENGINE EQUIPMENT

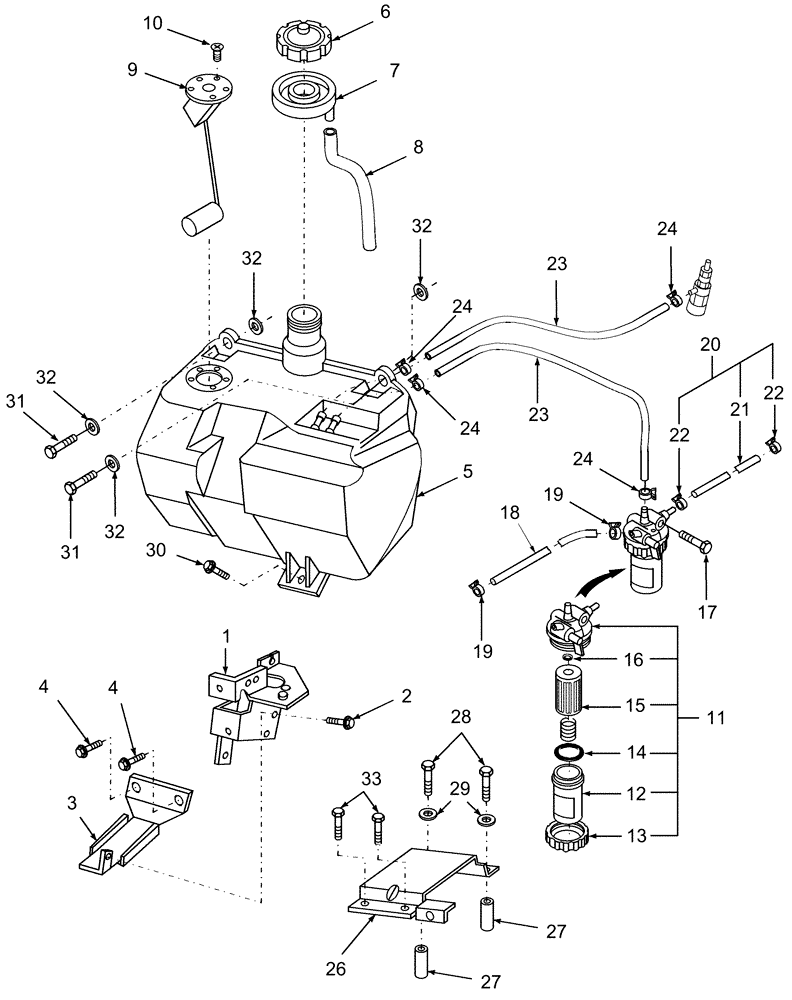

Схема запчастей Case IH DX23 - (02.03) - FUEL TANK & RELATED PARTS (02) - ENGINE EQUIPMENT
20
14
24
5
27
19
24
2
27
33
31
19
13
32
28
31
10
26
30
32
6
1
32
11
12
9
32
21
29
23
16
17
24
24
18
22
23
15
22
3
8
4
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA312500760

BRACKET

1шт.

2

SBA010800816

BOLT

M8 x 16

1шт.

3

SBA310650320

SUPPORT

Tank

1шт.

4

SBA010800612

BOLT

M6 x 12

2шт.

5

SBA360101911

TANK

1шт.

5

SBA360101912

FUEL TANK

1шт.

USED ON & ABOVE PIN #HDG310018 DX23 & HDG410077 DX26

1шт.

6

86532881

CAP

Filler

1шт.

7

SBA360410140

COVER

Tank

1шт.

8

SBA068122560

TUBE

Vinyl

1шт.

9

SBA385280240

GAUGE

Fuel

1шт.

10

SBA015140516

SCREW

5шт.

11

SBA360700060

FILTER ASSY

Includes: Ref. 12 thru 16

1шт.

12

SBA360710011

CUP

1шт.

13

SBA360740010

NUT

M10

1шт.

14

SBA052100400

O-RING,3.5mm Thk x 39.7mm ID, 70 Duro

1шт.

15

87300040

FUEL FILTER

Element

1шт.

16

SBA052100100

O-RING

1шт.

17

SBA011510845

BOLT

M8 x 45

1шт.

18

SBA360771200

PIPE

Fuel

1шт.

19

SBA067200115

CLIP

Hose

2шт.

20

SBA360750660

RIGID TUBE

Fuel, Includes: Ref. 21 & 22

1шт.

21

SBA360770670

FLEXIBLE HOSE

Fuel

1шт.

22

SBA067200130

CLAMP

Hose

2шт.

23

SBA360770730

HOSE

Fuel

2шт.

24

SBA067200078

HOSE CLAMP

4шт.

26

SBA360510910

SUPPORT

Tank

1шт.

27

SBA399235100

SPACER

2шт.

28

SBA011510850

BOLT,M8 x 50mm

2шт.

29

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

2шт.

30

SBA010109445

BOLT

1шт.

31

SBA011310630

BOLT

M6 x 30

2шт.

32

SBA026109128

WASHER

2шт.

33

SBA011510816

BOLT

M8 x 16

2шт.
