(02.02) - RADIATOR & HOOD LATCH

Запчасти Case IH DX23 (02.02) - RADIATOR & HOOD LATCH (02) - ENGINE EQUIPMENT

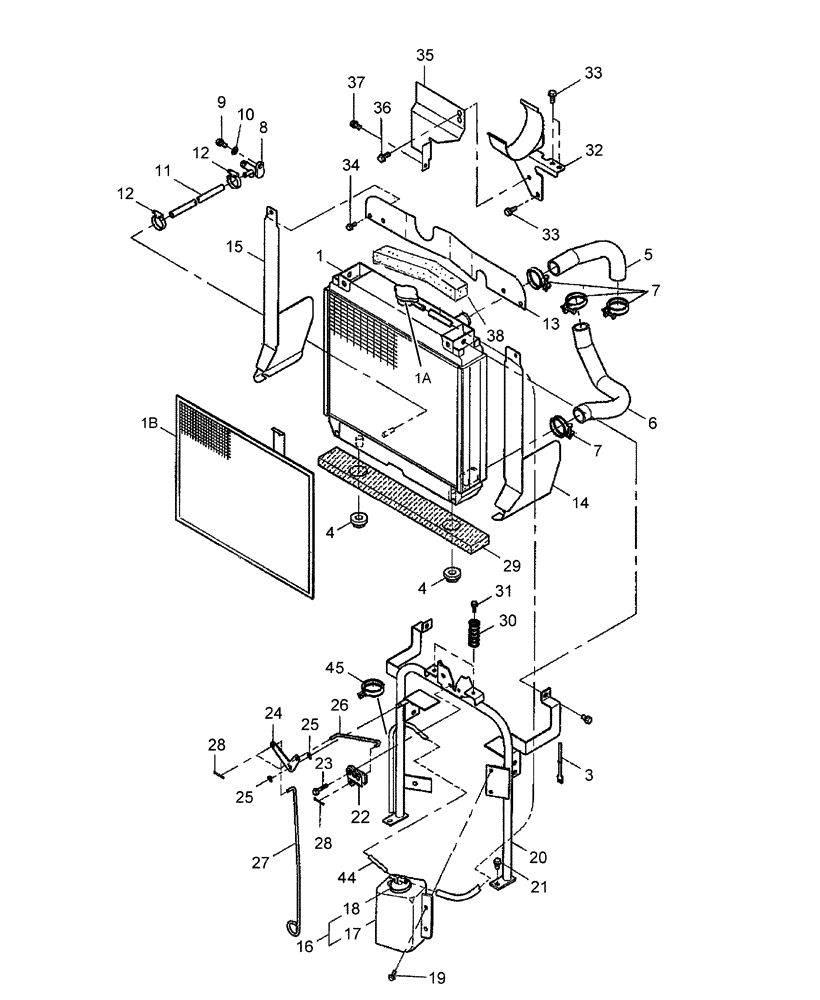

Схема запчастей Case IH DX23 - (02.02) - RADIATOR & HOOD LATCH (02) - ENGINE EQUIPMENT
32
7
16
44
17
45
35
14
4
1a
8
33
38
1b
10
34
19
13
18
31
5
36
15
23
24
28
7
37
12
3
4
21
20
27
12
22
33
29
25
28
9
11
30
1
25
6
26
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

SBA310101110

RADIATOR

Includes: Ref. 1A & 1B

1шт.

1a

SBA310110230

CAP COVER

Radiator Cap

1шт.

1b

SBA310141030

SCREEN

Screen

1шт.

2

SBA310120290

RIGID TUBE

Pipe, Coolant Overflow

1шт.

3

SBA398750220

CABLE TIE

CABLE STRAP

1шт.

4

SBA398119670

RUBBER BUSHING

2шт.

5

SBA310161660

HOSE

Upper

1шт.

6

SBA310161431

HOSE

Lower

1шт.

7

SBA067100038

BAND

4шт.

8

SBA310130250

COCK, DRAIN

Metal

1шт.

8

SBA310130280

DRAINCOCK/TAP SUPPLY

Plastic

1шт.

USED ON & ABOVE PIN #HDG310064 DX23 & HDG410183 DX26

1шт.

9

SBA011510816

BOLT

M8 x 16

1шт.

10

SBA026100008

WASHER

M8

1шт.

11

SBA360771000

PIPE

Fuel

1шт.

12

SBA398750430

BAND

2шт.

13

SBA310361611

PLATE

Plate, Upper Baffle

1шт.

14

SBA310363540

PLATE

Plate

1шт.

15

SBA310353550

PLATE

Plate

1шт.

16

SBA310550110

TANK

Coolant Recovery

1шт.

17

SBA310560050

RESERVOIR

Tank

1шт.

18

SBA310110190

CAP COVER

1шт.

19

SBA010800616

BOLT

M6 x 16

2шт.

20

SBA310301081

BRACKET

Stay

1шт.

21

SBA011510816

BOLT

M8 x 16

2шт.

22

SBA350200180

HANGER

Latch Mechanism

1шт.

23

SBA010800630

BOLT

M6 x 30

2шт.

24

SBA350210250

HANGER

1шт.

25

SBA036800006

SNAP RING

2шт.

26

SBA350210280

HANGER

1шт.

27

SBA350210270

HANGER

1шт.

28

SBA030102020

COTTER PIN

3шт.

29

SBA398135860

FOAM INSULATION

1шт.

30

SBA398214941

SPRING

2шт.

31

SBA010800616

BOLT

M6 x 16

2шт.

32

SBA314601730

SUPPORT

Bracket

1шт.

33

SBA010800816

BOLT

M8 x 16

3шт.

34

SBA010800612

BOLT

M6 x 12

2шт.

35

SBA378107521

GUARD

Guard, Fan

1шт.

36

SBA010800816

BOLT

M8 x 16

1шт.

37

SBA010800610

SCREW

M6 x 10

1шт.

38

SBA398130130

FOAM INSULATION

Sponge

1шт.

42

SBA399111960

CLAMP

1шт.

43

SBA068128071

PLASTIC-RUBBER TUBE

vinyl tube

1шт.

44

SBA068105710

HOSE

1шт.

USED ON & ABOVE PIN #HDG310059 DX23 & HDG410163 DX26

1шт.

45

SBA398750220

CABLE TIE

CABLE STRAP

2шт.

USED ON & ABOVE PIN #HDG310059 DX23 & HDG410163 DX26

1шт.
