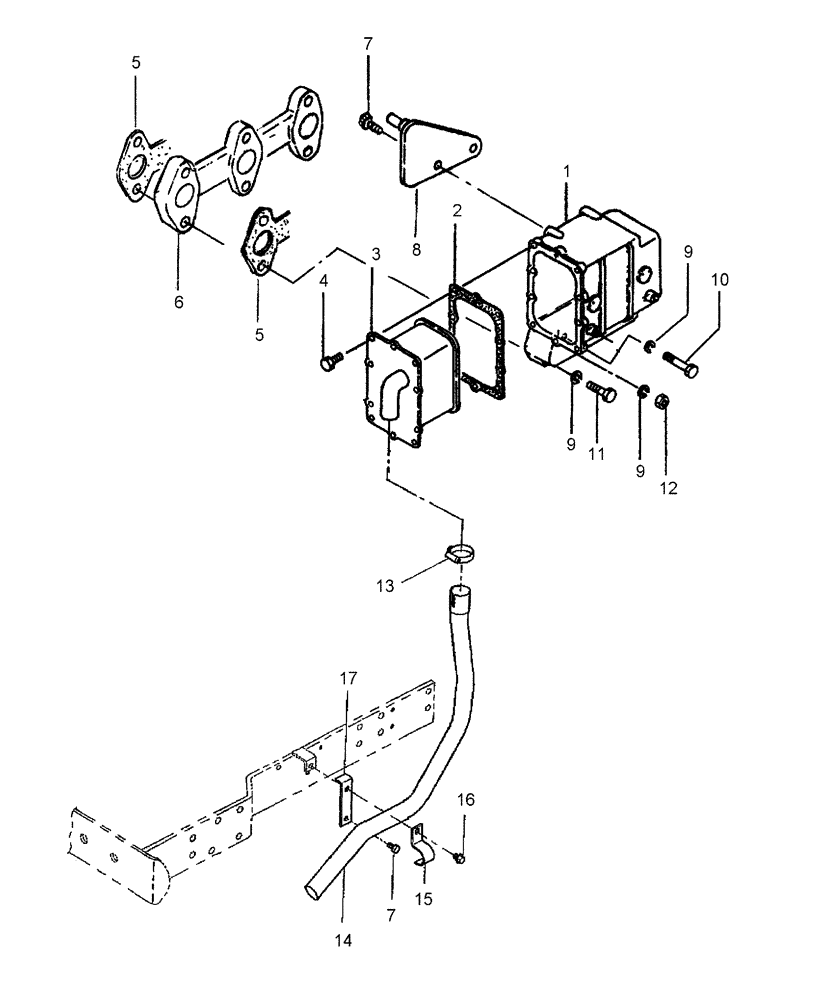

Запчасти Case IH DX23 (02.01) - MUFFLER (02) - ENGINE EQUIPMENT

1

SBA135046530

MUFFLER

Muffler Includes: Ref. 2 thru 4

1шт.

2

SBA135996900

GASKET

1шт.

3

SBA135406410

MUFFLER

Muffler

1шт.

4

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

10шт.

5

SBA135996541

GASKET

2шт.

6

SBA135617340

SPACER

1шт.

7

SBA011510816

BOLT

M8 x 16

3шт.

8

SBA350512890

COVER PLATE

Set

1шт.

10

SBA010109510

BOLT

1шт.

11

SBA010109511

BOLT

3шт.

12

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

13

SBA398750260

HOSE CLAMP

1шт.

14

SBA314110540

MUFFLER

Tail Pipe, DX23

1шт.

14

SBA314110530

MUFFLER

Tail Pipe, DX26

1шт.

15

SBA399112120

CLAMP

1шт.

16

SBA011510816

BOLT

M8 x 16

1шт.

17

SBA314400590

SUPPORT

Muffler

1шт.

9

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

6шт.
