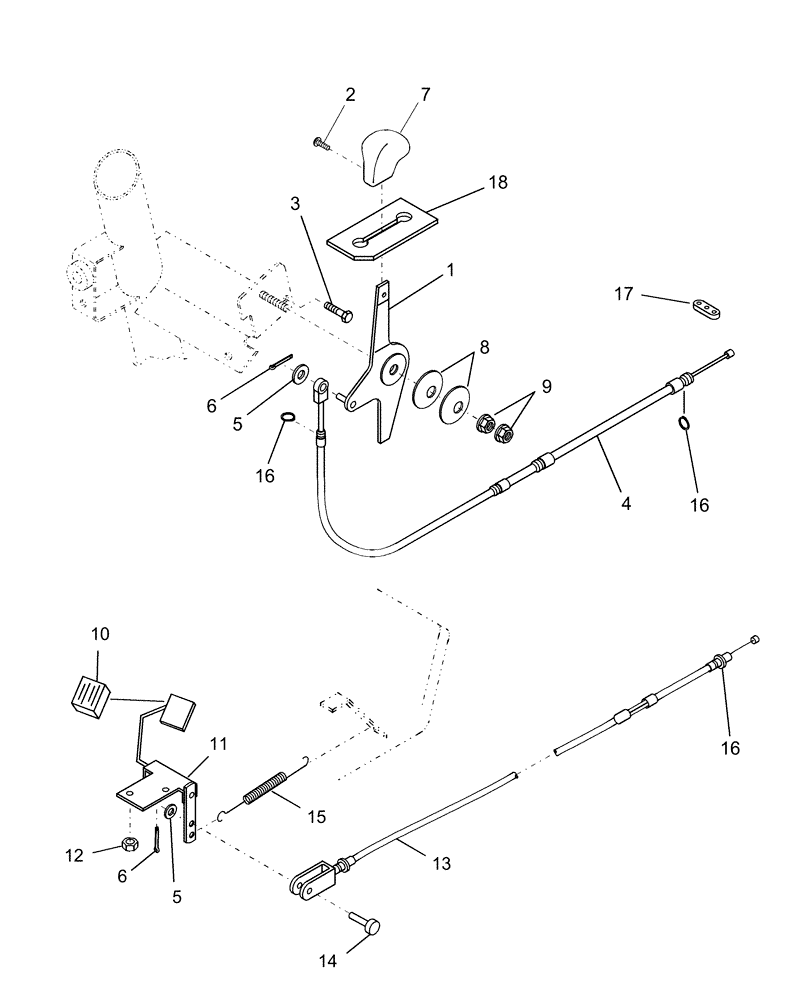

Запчасти Case IH DX23 (01.16) - THROTTLE CONTROLS - HAND & FOOT (01) - ENGINE

1

SBA312501121

LEVER

Throttle

1шт.

2

SBA015200408

SCREW

1шт.

3

SBA010800612

BOLT

1шт.

4

SBA312700750

CABLE

Hand Throttle

1шт.

5

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

6

SBA030102020

COTTER PIN

2шт.

7

SBA398181900

GRIP

1шт.

8

SBA398212210

SPRING-DISC

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

10

SBA398119901

RUBBER PEDAL PAD

Replaced by SBA398119902 Rubber Pedal & SBA398122990 Rubber

1шт.

10

SBA398119902

RUBBER PEDAL PAD

1шт.

10a

SBA398122990

RUBBER PAD

1шт.

Not Illustrated

1шт.

Fits Between Ref. 10 & 11

1шт.

11

SBA312600520

PEDAL

Foot

1шт.

12

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

M8

2шт.

13

SBA312070170

WIRE HARNESS

Foot

1шт.

14

SBA031310620

PIN

1шт.

15

SBA398211830

SPRING

1шт.

16

SBA036800004

SNAP RING

1шт.

17

SBA398114451

RUBBER BUSHING

1шт.

18

SBA398122010

SEAL

Rubber

1шт.

19

SBA378460840

COVER PLATE

Dust Control & Water Proof of Wire for Accelerator Lever

1шт.

Not Illustrated

1шт.
