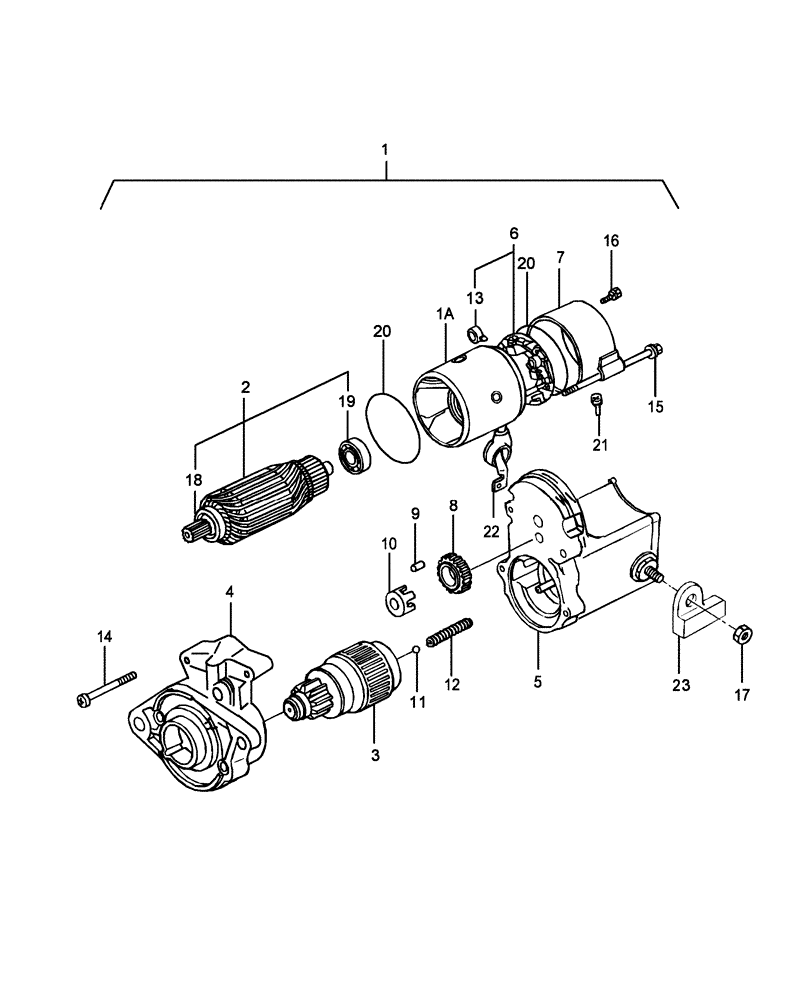

Запчасти Case IH DX23 (01.13) - STARTING MOTOR (01) - ENGINE

1

SBA185086670

STARTER MOTOR,12V, 12kW

Requires SBA011511050 Bolt, SBA021500010 Nut & SBA026200010 to Mount Starter

1шт.

1

SBA185086670R

REMAN-STARTER,12V, 12kW

Remanufactured Starter

1шт.

1

SBA185086670C

CORE-STARTER,12V, 12kW

Return Number

1шт.

1a

SBA185846677

YOKE

1шт.

2

SBA185846676

CLUTCH ASSEMBLY

Armature

1шт.

3

SBA185846675

CLUTCH ASSEMBLY

1шт.

4

SBA185846674

HOUSING

1шт.

5

SBA185846673

HOUSING

Switch

1шт.

6

SBA185846672

HOUSING

1шт.

7

SBA185846671

HOUSING

Frame, Starter End

1шт.

8

SBA185846552

PINION

Gear

1шт.

9

SBA185846371

ROLLER

Clutch

5шт.

10

SBA185846551

RETAINER

1шт.

11

SBA185846286

BALL

Steel

1шт.

12

SBA185846560

SPRING

Return

1шт.

13

SBA185846670

SPRING

4шт.

14

SBA185846558

BOLT

W/Washer

2шт.

15

SBA185846669

BOLT

2шт.

16

SBA185846668

SCREW

2шт.

17

SBA185846378

NUT

1шт.

18

SBA185846549

BALL BEARING

1шт.

19

SBA185846548

BEARING ASSY

1шт.

20

SBA185846561

O-RING

2шт.

21

SBA185846667

BUSHING

Drain

1шт.

22

SBA185846401

COVER

1шт.

23

SBA185736260

COVER

1шт.
