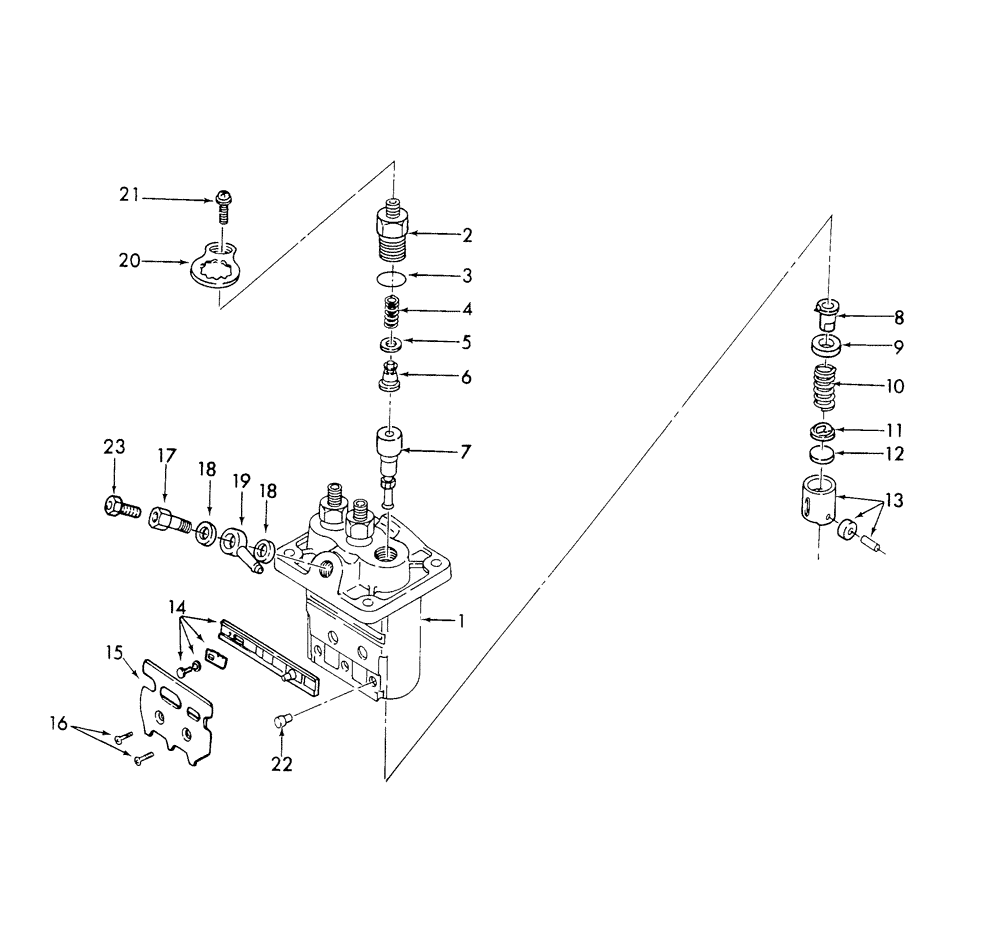

Запчасти Case IH DX23 (01.09.01) - INJECTION PUMP ASSEMBLY (01) - ENGINE

1

SBA131017711

FUEL INJECTION PUMP

1шт.

SBA131017711R

REMAN-FUEL INJ PUMP

DX23, DX26, BOTH (1/05-)

1шт.

SBA131017711C

CORE-FUEL INJ PUMP

Return Number

1шт.

2

SBA131196210

SUPPORT

DELIVERY VALVE HOLDER

3шт.

3

SBA131227330

O-RING

O-Ring

3шт.

4

SBA131176430

SPRING

DELIVERY VALVE

3шт.

5

SBA131186050

GASKET

3шт.

6

SBA131156160

HYDRAULIC VALVE

3шт.

7

SBA131116600

ELEMENT

ELEMENT ASSEMBLY

3шт.

8

SBA131296950

LINER

SLEEVE

3шт.

9

SBA131296620

SEAT/SLOT

Upper Spring

3шт.

10

SBA131176440

SPRING

Plunger

3шт.

11

SBA131296621

SEAT/SLOT

Lower Spring

3шт.

12

SBA131296622

PLATE

1.85

1шт.

12

SBA131296623

PLATE

1.90

1шт.

12

SBA131296624

PLATE

1.95

1шт.

12

SBA131296625

PLATE

2.00

1шт.

12

SBA131296626

PLATE

2.05

1шт.

12

SBA131296627

PLATE

2.10

1шт.

12

SBA131296628

PLATE

2.15

1шт.

12

SBA131296629

PLATE

2.20

1шт.

12

SBA131296630

PLATE

2.25

1шт.

12

SBA131296631

PLATE

2.30

1шт.

12

SBA131296632

PLATE

2.35

1шт.

12

SBA131296633

PLATE

2.40

1шт.

12

SBA131296635

PLATE

2.50

1шт.

13

SBA131256120

TAPPET

3шт.

14

SBA131296636

RACK

1шт.

15

SBA131296651

PIN

BRACKET

1шт.

16

SBA131136320

SCREW

2шт.

17

SBA131236190

BOLT

1шт.

18

SBA131426180

WASHER

2шт.

19

SBA131246130

HYD CONNECTOR

NIPPLE

1шт.

20

SBA131296662

PLATE

3шт.

21

SBA131136330

SCREW

3шт.

22

SBA131296651

PIN

3шт.

23

SBA131236280

SCREW

Bleeder, M6x10

1шт.
