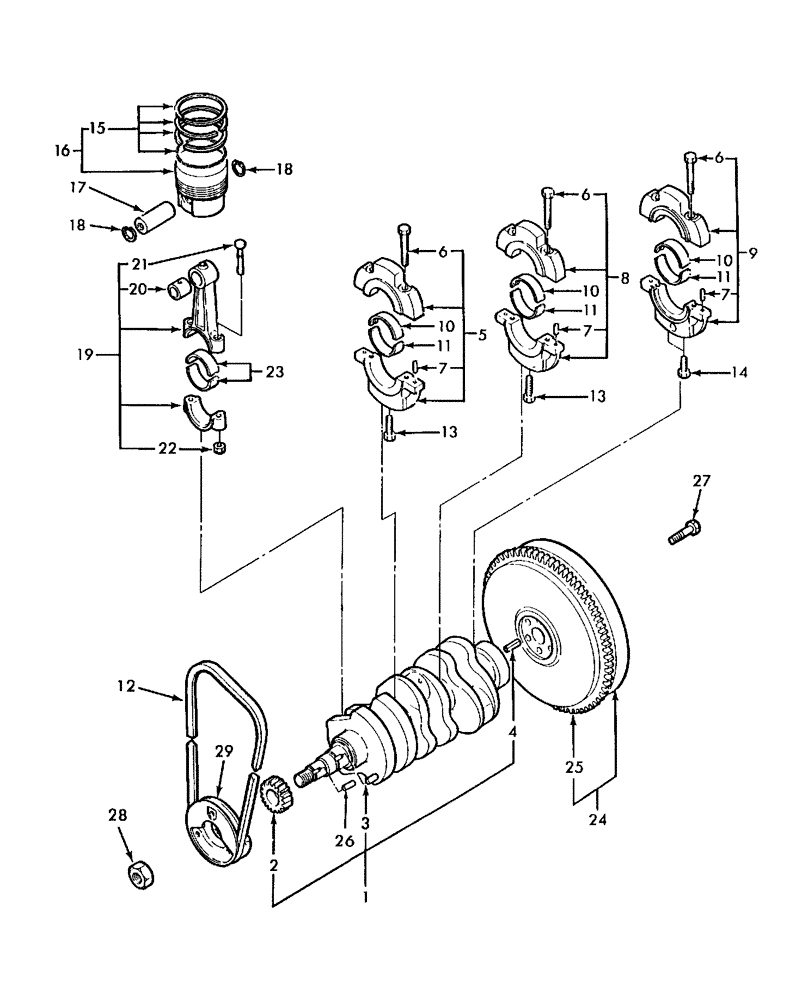

Запчасти Case IH DX23 (01.07) - CRANKSHAFT & PISTON (01) - ENGINE

1

SBA115256600

CRANKSHAFT

Tapered, W/Keyway Includes: Ref. 2 thru 4 & 26, DX23

1шт.

1

SBA115256830

CRANKSHAFT

Tapered, W/Keyway Includes: Ref. 2 thru 4 & 26, DX26

1шт.

2

SBA115276180

GEAR

1шт.

3

SBA030509020

PIN

Dowel

1шт.

4

SBA030300816

PIN

Spring

1шт.

5

SBA110156111

HOLDER

Bearing Includes: Ref. 6 & 7, DX23

1шт.

5

SBA110156400

HOLDER

Bearing Includes: Ref. 6 & 7, DX26

1шт.

6

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

6шт.

7

SBA030500612

DOWEL

6шт.

8

SBA110156121

HOLDER

Bearing Includes: Ref. 6 & 7, DX23

1шт.

8

SBA110156410

HOLDER

Bearing Includes: Ref. 6 & 7, DX26

1шт.

9

SBA110156330

HOLDER

Bearing Includes: Ref. 6 & 7, DX23

1шт.

9

SBA110156420

HOLDER

Bearing Includes: Ref. 6 & 7, DX26

1шт.

10

SBA198517102

BEARING LINER

Upper, Standard, DX23

3шт.

10

SBA198517106

LINER

Upper, U.S. 0.25, DX23

3шт.

10

SBA198517109

LINER

Upper, U.S. 0.5, DX23

3шт.

10

SBA198517571

BUSHING

Upper, Standard, DX26

3шт.

10

SBA198517575

BEARING LINER

Upper, U.S. 0.25, DX26

3шт.

10

SBA198517578

BRACKET

Upper, U.S. 0.5, DX26

3шт.

11

SBA198517111

LINER

Lower, Standard, DX23

3шт.

11

SBA198517115

LINER

Lower, U.S. 0.25, DX23

3шт.

11

SBA198517118

LINER

Lower, U.S. 0.5, DX23

3шт.

11

SBA198517581

CRANKSHAFT BEARING

Lower, Standard, DX26

3шт.

11

SBA198517585

BRACKET

Lower, U.S. 0.25, DX26

3шт.

11

SBA198517588

BRACKET

Lower, U.S. 0.5, DX26

3шт.

12

SBA080109049

BELT

V

1шт.

13

SBA011510850

BOLT,M8 x 50mm

2шт.

14

SBA010700845

BOLT

M8 x 45

2шт.

15

SBA115107240

PISTON RINGS KIT

Standard Includes: Ref. 15

3шт.

16

SBA115017600

PISTON & RINGS KIT

Standard, DX23

3шт.

16

SBA115017610

PISTON & RINGS KIT

Standard, DX26

3шт.

17

SBA115326231

PISTON PIN

3шт.

18

SBA036500021

SNAP RING

6шт.

19

SBA115026191

CONNECTING ROD

Includes: Ref. 20 thru 22, DX23

3шт.

19

SBA115026340

CONNECTING ROD

Includes: Ref. 20 thru 22, DX26

3шт.

20

SBA198517125

RING

3шт.

21

SBA115176150

BOLT

Connecting Rod

6шт.

22

SBA020109075

NUT

6шт.

23

SBA198517131

LINER

Standard, DX23

6шт.

23

SBA198517135

LINER

U.S. 0.25, DX23

6шт.

23

SBA198517138

LINER

U.S. 0.5, DX23

6шт.

23

SBA198517601

BEARING LINER

Standard, DX26

6шт.

23

SBA198517605

BRACKET

U.S. 0.25, DX26

6шт.

23

SBA198517608

BRACKET

U.S. 0.5, DX26

6шт.

24

SBA115356990

ENGINE FLYWHEEL

Includes: Ref. 25

1шт.

25

SBA115376130

RING GEAR

1шт.

26

SBA034100508

KEY

1шт.

27

SBA010109340

BOLT

1шт.

28

SBA020800018

NUT

1шт.

29

SBA115398490

PULLEY

PULLEY

1шт.
