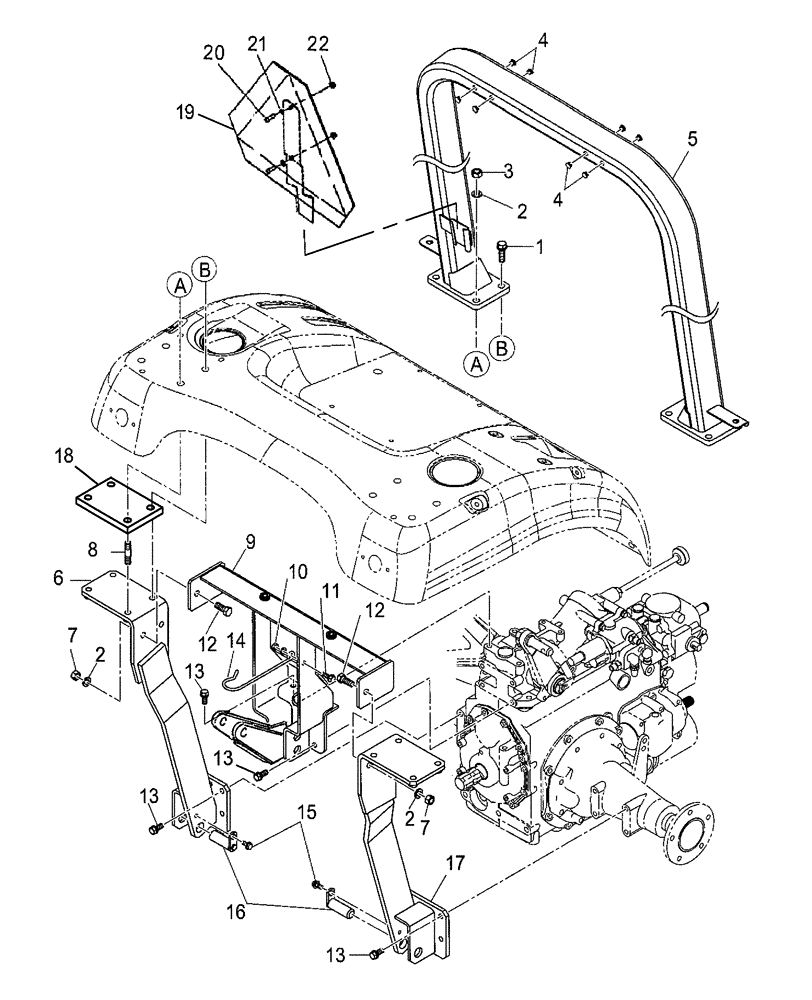

Запчасти Case IH DX22E (10.04) - ROLL BAR & RELATED PARTS (10) - OPERATORS PLATFORM/CAB

1

SBA011511240

BOLT,M12 x 40

6шт.

2

412123

LOCK WASHER,13.1mm ID x 21.1mm OD x 2.55mm Thk

6шт.

3

SBA021010012

NUT

M12

2шт.

4

SBA398460460

PLUG

8шт.

5

NS

NOT SERVICED

Frame, Order SBA378050950 ROPS kit

1шт.

6

NS

NOT SERVICED

Frame, Order SBA378050950 ROPS kit

1шт.

7

SBA020910012

NUT,M12, Cl 8.8

4шт.

8

SBA012111240

BOLT

2шт.

9

NS

NOT SERVICED

Frame, Order SBA378050950 ROPS kit

1шт.

10

SBA022300008

NUT,M8

1шт.

11

SBA010800825

BOLT

M8 x 25

1шт.

12

SBA011511230

BOLT,M12 x 30

4шт.

13

SBA011511025

CAPTIVE WASHER SCREW,Hex, M10 x 25, G5

12шт.

14

SBA398216020

HOOK

1шт.

15

SBA010800816

BOLT

M8 x 16

2шт.

16

SBA370901140

PIN

2шт.

17

NS

NOT SERVICED

Frame, Order SBA378050950 ROPS kit

1шт.

18

SBA398122190

RUBBER

Rubber

1шт.

19

SBA385150250

REFLECTOR

Reflector

1шт.

20

86511830

SCREW,Phillips Drive, Pan HD, M6 x 20mm, Cl 4.8

M6 x 20

2шт.

21

9824259

WASHER,6.4mm ID x 12mm OD x 1.6mm Thk

2шт.

22

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.
