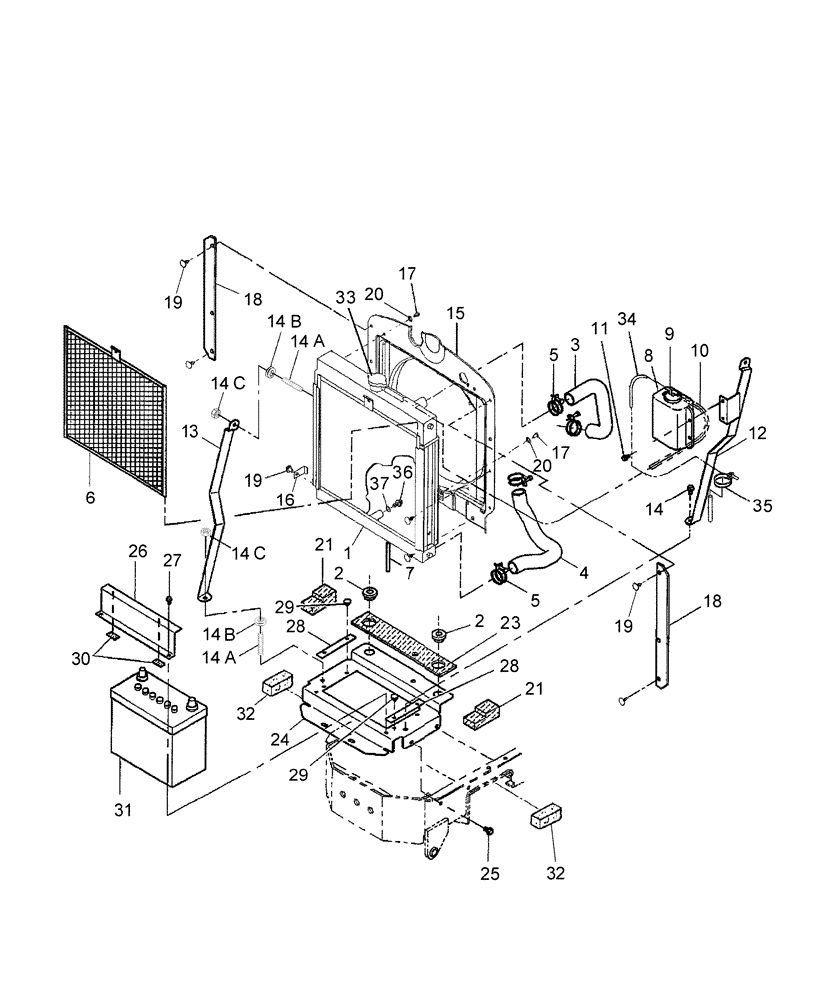

Запчасти Case IH DX22E (02.01.01) - RADIATOR & BATTERY USED ON & ABOVE PIN HDG110114 DX18E. HDG710101 DX22E, HDG210548 DX25E (02) - ENGINE EQUIPMENT

1

SBA310101140

RADIATOR

1шт.

2

SBA398119670

RUBBER BUSHING

2шт.

3

SBA310161660

HOSE

Upper

1шт.

4

SBA310161431

HOSE

Lower

1шт.

5

SBA067100038

BAND

Hose

4шт.

6

SBA310141000

SCREEN

1шт.

7

SBA068118280

TUBE

1шт.

8

SBA310560050

RESERVOIR

Tank

1шт.

9

SBA310110190

CAP COVER

1шт.

10

SBA310120240

FLEXIBLE HOSE

Over Flow Pipe

1шт.

11

SBA010800616

BOLT

M6 x 20

2шт.

12

SBA310301100

SUPPORT

Radiator, L.H.

1шт.

13

SBA310301110

SUPPORT

Radiator, R.H.

1шт.

14

SBA010800816

BOLT

M8x16

2шт.

14a

SBA012110825

BOLT

Stud M8x25

4шт.

14b

SBA398110240

GROMMET

4шт.

14c

SBA022400008

NUT

U, M8

4шт.

15

SBA310250260

SHROUD

Shroud

1шт.

16

SBA310311480

BRACKET

Stay

1шт.

17

SBA010800616

BOLT

M6 x 16

2шт.

18

SBA398122390

FOAM

2шт.

19

SBA398340240

CLIP

8шт.

20

SBA026100006

WASHER

M6

2шт.

21

SBA398136190

FOAM INSULATION

2шт.

23

SBA398136180

FOAM INSULATION

1шт.

24

SBA389102180

BRACKET

Battery

1шт.

24

SBA389102181

PLATE

Battery

1шт.

USED ON & ABOVE PIN HDG110115 DX18E, HDG710101 DX22E & HDG210548 DX25E

1шт.

25

SBA010800816

BOLT

4шт.

26

SBA389310550

HOLDER

Battery

1шт.

27

SBA010800616

BOLT

2шт.

28

SBA398121960

RUBBER SEAL

2шт.

29

SBA398340240

CLIP

4шт.

30

SBA398113310

RUBBER PAD

2шт.

31

B5150W

WET BATTERY

US

1шт.

31

CB51435W

BATTERY, WET

BATTERY WET Canada

1шт.

32

SBA398135340

FOAM

Foam

2шт.

33

SBA310110200

CAP COVER

Radiator

1шт.

34

SBA068105710

HOSE

Reservoir Tank Drain

1шт.

USED ON & ABOVE PIN HDG110115 DX18E, HDG710101 DX22E & HDG210548 DX25E

1шт.

35

SBA398750220

CABLE TIE

CABLE STRAP

1шт.

USED ON & ABOVE PIN HDG110115 DX18E, HDG710101 DX22E & HDG210548 DX25E

1шт.

36

SBA310130230

COCK

1шт.

37

SBA310190477

O-RING

1шт.
