Запчасти Case IH DX21 (08.02) - HOOD (08) - SHEET METAL

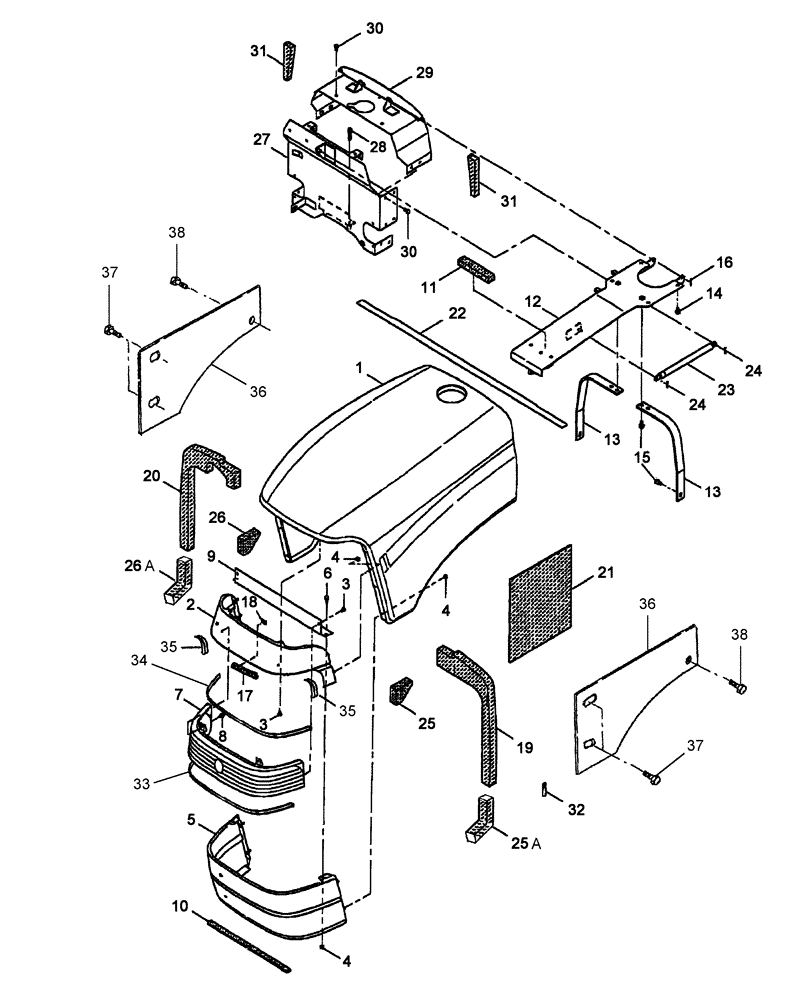

Схема запчастей Case IH DX21 - (08.02) - HOOD (08) - SHEET METAL
35
1
37
7
11
32
25
29
37
33
38
24
5
4
15
3
30
36
6
25a
13
36
4
22
19
26
8
28
8
23
30
16
13
34
27
3
14
35
4
26a
18
9
17
12
31
38
24
31
21
10
2
20

Артикул

Название

Примечание

Количество

1

SBA350104050

HOOD ASSY.

1шт.

2

SBA350300750

MASK

Front Grill

1шт.

3

SBA010800610

SCREW

M6 x 10

4шт.

4

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

M6

10шт.

5

SBA350300770

MASK

Front Grill

1шт.

6

SBA010800616

BOLT

2шт.

7

86522921

HEADLAMP

1шт.

8

SBA010800612

BOLT

M6 x 12

2шт.

9

SBA350411080

BRACKET

LAMP SUPPORT

1шт.

10

SBA398136020

FOAM INSULATION

INSULATION, FOAM

1шт.

11

SBA398136030

FOAM INSULATION

INSULATION, FOAM

1шт.

12

SBA350503290

SUPPORT

HOOD

1шт.

13

SBA350512970

BRACKET

2шт.

14

SBA010800812

BOLT

M8 x 12

4шт.

15

SBA010800816

BOLT

M8 x 16

6шт.

16

SBA030102516

COTTER PIN

1шт.

17

86405242

EMBLEM CASE/IH

FARMALL

1шт.

18

SBA399370900

NUT

2шт.

19

SBA398135820

FOAM INSULATION

1шт.

20

SBA398135830

FOAM INSULATION

1шт.

21

SBA398135850

FOAM INSULATION

1шт.

22

SBA398121990

RUBBER

1шт.

23

SBA378910290

STAY

Dumper

1шт.

24

SBA030102516

COTTER PIN

2шт.

24

SBA398136000

FOAM INSULATION

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

25a

SBA398136080

FOAM INSULATION

1шт.

26

SBA398136010

FOAM INSULATION

Insulation, Foam

1шт.

26a

SBA398136090

FOAM INSULATION

INSULATION, FOAM

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

27

SBA310353510

PLATE

1шт.

27

SBA310353511

PLATE

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

28

SBA011510835

BOLT

M8 x 35

2шт.

29

SBA350503270

BRACKET

1шт.

30

SBA010800616

BOLT

4шт.

31

SBA398135840

FOAM INSULATION

2шт.

32

SBA399111960

CLAMP

2шт.

33

SBA398136110

FOAM INSULATION

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

34

SBA398136100

FOAM INSULATION

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

35

SBA398122220

SEAL

1шт.

Used On & ASN or PIN # HDG300004 DX21 & HDG400008 DX24

1шт.

36

SBA378116330

GUARD

Side

2шт.

37

SBA010800616

BOLT

M6 x 16

4шт.

38

SBA010109488

BOLT

M6 x 25

2шт.

Выбрано товаров: 47
