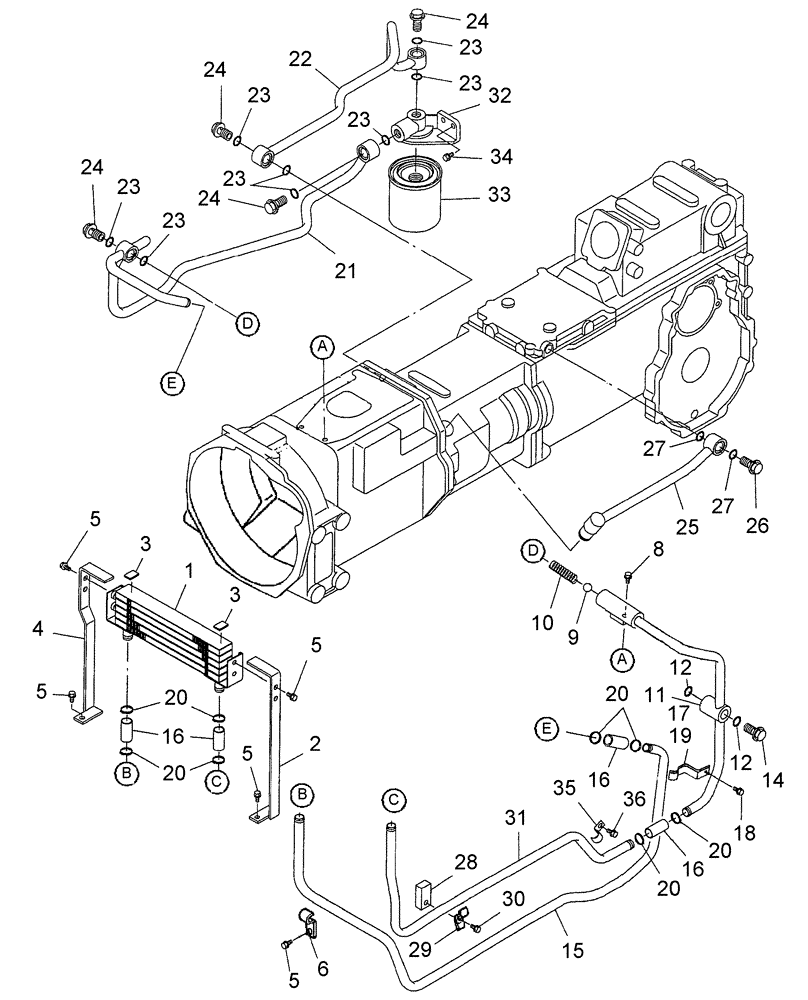

Запчасти Case IH DX21 (07.02[2]) - HST PIPING & OIL COOLER (07) - HYDRAULIC SYSTEM

1

SBA386050060

CONDITIONING UNIT

Oil Cooler, HST

1шт.

2

SBA344902050

BRACKET

1шт.

3

SBA398115160

ISOLATOR

2шт.

4

SBA344912570

BRACKET

1шт.

5

SBA011510816

BOLT

M8 x 16

8шт.

6

SBA398112550

CLAMP

1шт.

9

SBA048100016

BALL

Steel

1шт.

10

SBA398212270

SPRING

1шт.

11

SBA340709200

PIPE

Oil

1шт.

12

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

2шт.

14

SBA398481270

BOLT

Eye

1шт.

15

SBA340615920

RIGID TUBE

Oil

1шт.

16

SBA340693240

HOSE

4шт.

17

SBA399113060

CLAMP

1шт.

18

SBA011310610

BOLT

M6 x 10

1шт.

19

SBA398116790

RUBBER BUSHING

1шт.

20

SBA398750420

HOSE CLAMP

8шт.

21

SBA340707410

TUBE

Oil

1шт.

22

SBA340707420

RIGID TUBE

Oil

1шт.

23

SBA052100200

O-RING,2.4mm Thk x 19.8mm ID, 70 Duro

8шт.

24

SBA398480240

BANJO BOLT,3/8"

4шт.

25

SBA340707430

RIGID TUBE

Oil

1шт.

26

SBA398480250

BANJO BOLT,1/2"

1шт.

27

SBA052300250

O-RING

2шт.

28

SBA398115490

STOP

Rubber

1шт.

29

SBA399112060

CLAMP

1шт.

30

SBA011510830

BOLT

M8 x 30

1шт.

31

SBA340615930

RIGID TUBE

Oil

1шт.

32

SBA340560340

FLANGE

1шт.

33

SBA340501030

FILTER

W/Internal Bypass

1шт.

34

SBA011510820

CAPTIVE WASHER SCREW,Hex, M8 x 20, G5

2шт.

35

SBA399112430

CLAMP

1шт.

36

SBA011611220

BOLT

M12 x 20

1шт.
