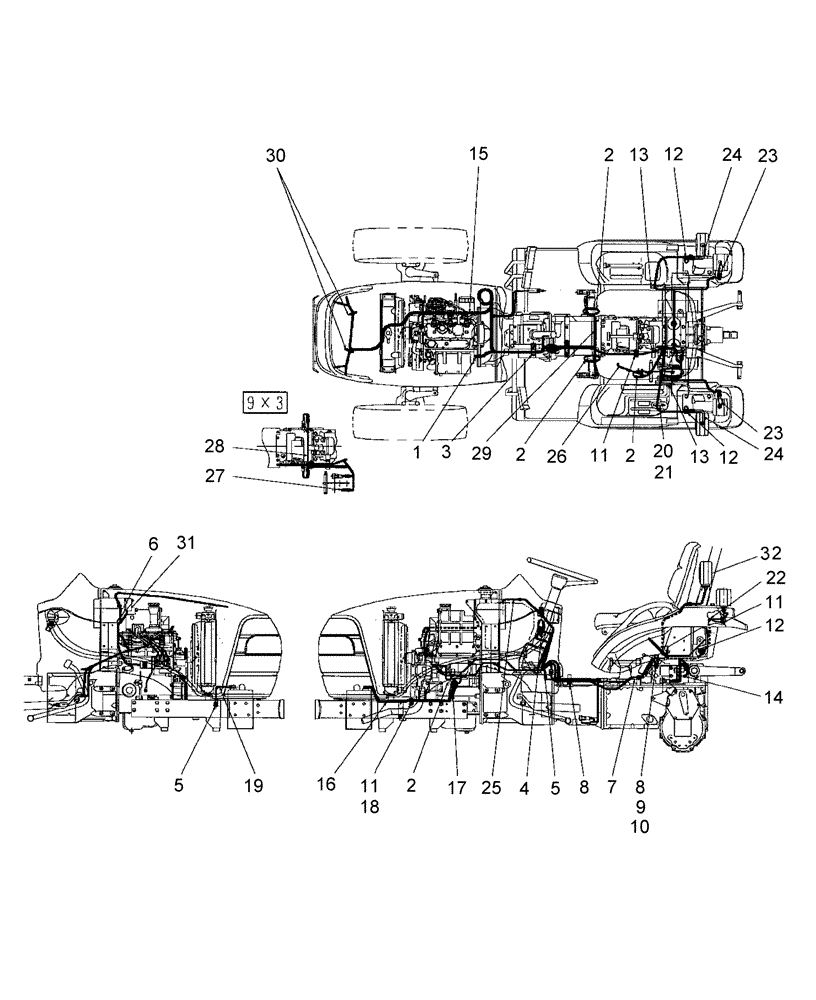

Запчасти Case IH DX21 (06.01) - WIRING HARNESS (06) - ELECTRICAL SYSTEMS

1

SBA385612240

WIRE HARNESS

Main

1шт.

1a

SBA385410230

FUSE

40 AMP

1шт.

Not Illustrated

1шт.

2

SBA398750220

CABLE TIE

CABLE STRAP

1шт.

3

SBA399110300

CLAMP

1шт.

4

SBA398750150

BAND

2шт.

5

SBA010800816

BOLT

M8 x 16

2шт.

6

SBA010800616

BOLT

M6 x 16

1шт.

7

SBA385612230

WIRE HARNESS

Rear

1шт.

8

SBA399112980

CLAMP

2шт.

9

SBA026100008

WASHER

M8

1шт.

10

SBA011510816

BOLT

M8 x 16

1шт.

11

SBA399111040

CLAMP

4шт.

12

SBA399112140

CLAMP

3шт.

13

SBA398756100

BAND

2шт.

14

SBA010800610

SCREW

M6 x 10

1шт.

15

SBA385612091

WIRE HARNESS

Lamp

1шт.

16

SBA385650820

POS BATTERY CABLE

Positive

1шт.

17

SBA398121640

RUBBER PAD

1шт.

18

SBA010800812

BOLT

M8 x 12

1шт.

19

SBA385650830

NEG BATTERY CABLE

Negative

1шт.

20

SBA399111960

CLAMP

1шт.

21

SBA015600610

SCREW

M6 x 10

1шт.

22

SBA398116820

RUBBER PAD

2шт.

23

SBA385611730

WIRE HARNESS

Earth

2шт.

24

SBA385611860

WIRE HARNESS

Earth

2шт.

25

SBA385612180

WIRE HARNESS

Fuel gauge

1шт.

26

SBA385612200

WIRE HARNESS

Power Socket

1шт.

27

SBA385604070

WIRE HARNESS

9 x 3

1шт.

28

SBA385611690

WIRE HARNESS

9 x 3

1шт.

29

SBA385612220

WIRE HARNESS

HST

1шт.

30

SBA399111960

CLAMP

2шт.

31

SBA385410080

FUSE

Fuse, 10 AMP

1шт.

31

SBA385410090

FUSE

15 AMP

2шт.

31

SBA385410130

FUSE

20 AMP

1шт.

32

SBA385100961

LAMP

Hazard, Includes: (2) SBA385110430 Lens, (1) 529068 Bulb & (1) SBA020610012 Nut

2шт.
