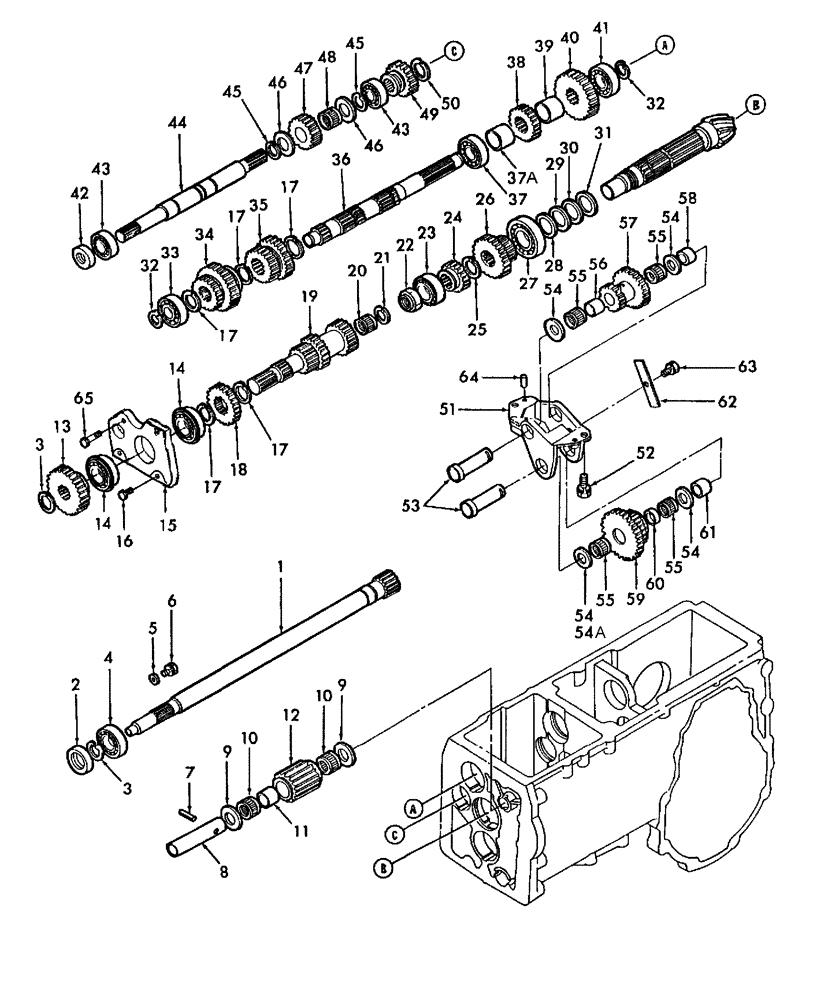

Запчасти Case IH DX21 (03.07) - REAR TRANSMISSION GEARS - W/9 X 3 (03) - TRANSMISSION

1

SBA322512201

SHAFT

Drive

1шт.

2

SBA050203125

SEAL

Oil, 4WD Shaft

1шт.

3

370002

CIRCLIP,M25, External

3шт.

4

SBA040109054

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

5

SBA026109017

WASHER

1шт.

6

SBA011510816

BOLT

M8 x 16

1шт.

7

SBA326460040

SHAFT

1шт.

8

SBA030300532

LOCK PIN

1шт.

9

SBA399261500

THRUST WASHER

2шт.

10

SBA042200620

BEARING ASSY

Needle

2шт.

11

SBA399233690

SPACER

1шт.

12

SBA322370990

GEAR

Counter A

1шт.

13

SBA322326370

GEAR

Fixing A

1шт.

14

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

15

SBA322280240

SUPPORT

1шт.

16

120100

BOLT,M6 x 20mm, Cl 8.8

1шт.

17

370003

SNAP RING,M30, External

5шт.

18

SBA322326380

GEAR

Fixing A

1шт.

19

SBA322531800

COUNTERSHAFT

1шт.

20

SBA042210422

NEEDLE BEARING

1шт.

21

370001

SNAP RING,M22, External

1шт.

22

SBA020109079

NUT

1шт.

23

SBA042530205

TAPERED BEARING

1шт.

24

SBA322326350

GEAR

Fixing A

1шт.

25

SBA036100028

SNAP RING

2шт.

26

SBA322361390

GEAR

Slide B

1шт.

27

309085

BEARING ASSY,30mm ID x 62mm OD x 17.25mm W

1шт.

28

SBA199281210

SHIM,0.1mm Thk

1шт.

29

SBA199281220

SHIM,0.2mm Thk

1шт.

30

SBA199280490

SHIM,0.5mm Thk

(.020")

1шт.

31

SBA199260040

THRUST WASHER

1шт.

32

370024

CIRCLIP,M20, Ext

2шт.

33

SBA040106304

BALL BEARING,20mm ID x 52mm OD x 15mm W

1шт.

34

SBA322360811

GEAR

Slide B

1шт.

35

SBA322360822

GEAR

Slide B

1шт.

36

SBA322521420

SHAFT

Main

1шт.

37

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

37a

SBA399234930

COLLAR

1шт.

38

SBA322326340

GEAR

Fixing A

1шт.

39

SBA399233760

SPACER

1шт.

40

SBA322326360

GEAR

Fixing A

1шт.

41

279592

BALL BEARING,20mm ID x 47mm OD x 14mm W

1шт.

42

SBA050209075

SEAL

1шт.

43

SBA040106004

BALL BEARING

2шт.

44

SBA322514140

DRIVE SHAFT

1шт.

45

370002

CIRCLIP,M25, External

Ext, M22

2шт.

46

SBA399260650

THRUST WASHER

2шт.

47

SBA322372160

GEAR

Counter A

1шт.

48

SBA042200425

BEARING ASSY

1шт.

49

SBA322342160

GEAR

Slide A

1шт.

50

370024

CIRCLIP,M20, Ext

1шт.

51

SBA322112380

CASE

Mission

1шт.

52

SBA011511030

CAPTIVE WASHER SCREW,Hex, M10 x 30, G5

2шт.

53

SBA322531070

COUNTERSHAFT

2шт.

54

SBA399261510

THRUST WASHER

4шт.

54

SBA399261510

THRUST WASHER

Washer, Thrust

3шт.

Used with SBA322382800 Counter Gear B

1шт.

54a

SBA399261990

THRUST WASHER

Washer, Thrust

1шт.

Used with SBA322031960 Gear Assy

1шт.

55

SBA042200318

NEEDLE

4шт.

56

SBA399233810

SPACER

1шт.

57

SBA322382810

GEAR

Counter B, 16/22 Teeth

1шт.

58

SBA399233770

SPACER

1шт.

59

SBA322382800

GEAR

Counter B, 31/17 Teeth

1шт.

Replaced by SBA322031960 Gear Assy & SBA399261990 Thrust Washer

1шт.

Used with (1) SBA399261510 Thrust Washer & SBA322382810 Gear, Counter B

1шт.

59

SBA322031960

GEAR

Gear, Counter B, 31/17 Teeth

1шт.

Used with (1) SBA399261990 Thrust Washer & SBA322382811 Gear, Counter B

1шт.

60

SBA399211400

SPACER

1шт.

61

SBA399233800

SPACER

1шт.

62

SBA399564630

PLATE

1шт.

63

SBA011510812

CAPTIVE WASHER SCREW,Hex, M8 x 12, G5

1шт.

64

SBA030500616

DOWEL,M6 x 16

2шт.

65

SBA011310625

CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8

2шт.
