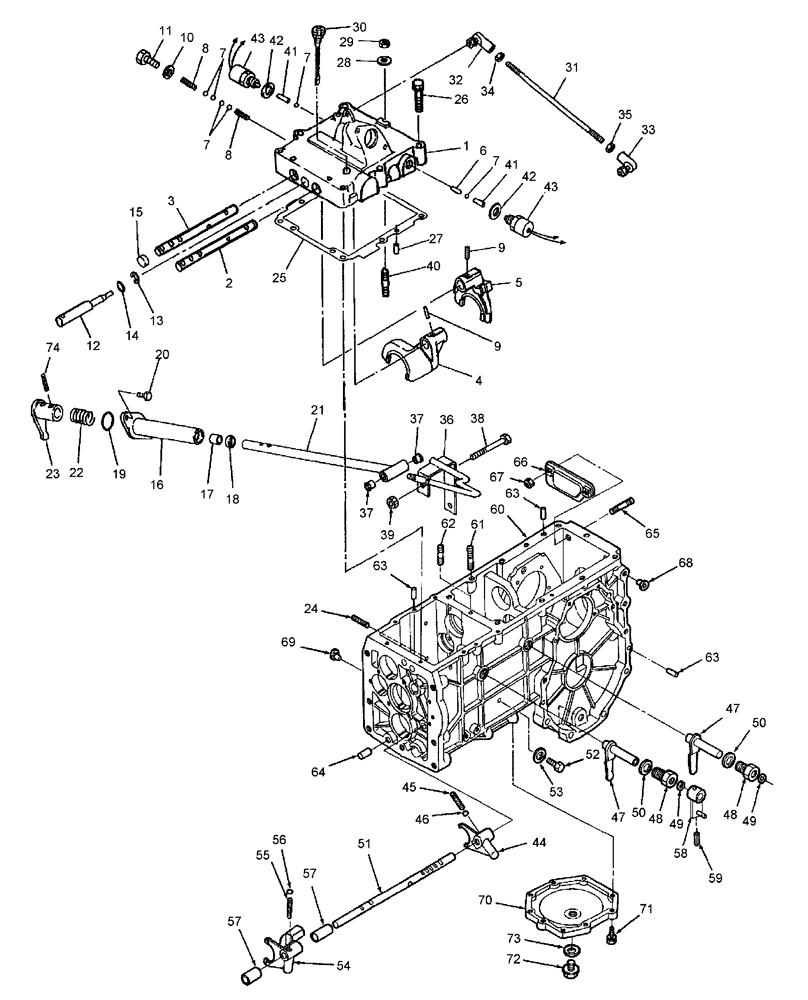

Запчасти Case IH DX21 (03.05) - REAR TRANSMISSION CASE & SHIFTER - 9X3 (03) - TRANSMISSION

1

SBA324711330

COVER

Transmission Case, 6 x 2 & 9 x 3, TC18, TC21D

1шт.

1

SBA322213240

COVER

Transmission Case HST, TC18, TC21D

1шт.

2

SBA324312890

ROD

Shifter, 1 - 3

1шт.

3

SBA324312900

ROD

Shifter, 2 - R

1шт.

4

SBA324412340

SHIFT, FORK

1 - 3

1шт.

5

SBA324412350

SHIFT, FORK

2 - R

1шт.

6

SBA324560080

PIN

1шт.

7

V34014

BALL

Steel

6шт.

8

SBA398210280

SPRING

2шт.

8

SBA398210280

SPRING

, Start Year: 01-NOV-97

1шт.

Used With SBA322570702 PTO Countershaft & SBA322341331 Slide A Gear

1шт.

8

SBA398210460

SPRING

, Start Year: 01-NOV-97

1шт.

Used With SBA322570702 PTO Countershaft & SBA322341331 Slide A Gear

1шт.

9

SBA030300625

PIN

Spring

2шт.

10

SBA025100012

WASHER,12.4mm ID x 19mm OD x 2mm Thk

Seal

1шт.

11

SBA010301230

SCREW

Bolt, M12 x 30

1шт.

12

SBA324221080

SHAFT

1шт.

13

SBA036800010

SNAP RING

1шт.

14

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

1шт.

15

SBA398460390

PLUG,M15

Blank

2шт.

16

SBA324501150

SLIDE GUIDE

Shift

1шт.

17

SBA398511850

BUSHING

1шт.

18

SBA050309072

OIL SEAL

1шт.

19

SBA052400250

O-RING

1шт.

20

SBA012110816

STUD

Also need SBA021500008 (81877032) Nut

2шт.

21

SBA324202100

ARM

Shift

1шт.

22

SBA398212560

SPRING

1шт.

23

SBA324202530

ARM

Shift, Main

1шт.

24

SBA012210825

STUD

Bolt

1шт.

25

SBA324990850

GASKET

1шт.

26

SBA011510850

BOLT,M8 x 50mm

6шт.

27

SBA030500820

PIN

Dowel

6шт.

28

SBA026109017

WASHER

1шт.

29

SBA021500008

NUT,M8

1шт.

30

SBA398400250

GAUGE

Oil

1шт.

31

SBA358511110

ROD

1шт.

32

SBA447800010

ROD

End, L

1шт.

33

SBA334800350

ROD

End, R

1шт.

34

SBA020109125

NUT,M8, LH Thd

1шт.

35

9706690

NUT,M8 x 1.25, Cl 8

1шт.

36

SBA324106480

LEVER

Change

1шт.

37

SBA398511640

BUSHING

2шт.

38

SBA399431010

BOLT

1шт.

39

SBA021500008

NUT,M8

1шт.

40

SBA012210855

BOLT

Stud

1шт.

41

SBA399611740

PIN

2шт.

42

SBA025100014

SEALING WASHER,14.4mm ID x 21mm OD x 2mm Thk

2шт.

43

SBA385200730

SWITCH

Safety

2шт.

44

SBA324411530

FORK

Shifter, Second

1шт.

45

SBA398210280

SPRING

1шт.

46

SBA048100010

BALL

Steel

1шт.

47

SBA324202060

ARM

Shift

2шт.

48

SBA324510400

GUIDE

Shift

2шт.

49

SBA052109078

O-RING,2.4mm Thk x 9.8mm ID

2шт.

50

SBA025100020

SEALING WASHER,16.4mm ID x 27mm OD x 2mm Thk

2шт.

51

SBA324312940

ROD

Shifter, PTO; Second

1шт.

52

SBA010109284

BOLT

Set

1шт.

53

SBA025100008

SEALING WASHER,7.3mm ID x 14mm OD x 1.8mm Thk

Seal

1шт.

54

SBA324411520

FORK

Shifter

1шт.

55

SBA398210280

SPRING

1шт.

56

SBA048100010

BALL

Steel

1шт.

57

SBA399233750

SPACER

COLLAR

2шт.

58

SBA324106450

LEVER

Change

1шт.

59

300868

ROLL PIN,6mm OD x 36mm L, Slotted

M6 x 36

1шт.

60

SBA322017610

CASING

ASSY., Includes: Ref. 61 thru 65

1шт.

60

SBA322017611

CASE

ASSY., Includes: Ref. 61 thru 65

1шт.

Used On & ASN or PIN # UD33677 & UF33342

1шт.

61

SBA012211030

STUD

Bolt

3шт.

62

SBA012210855

BOLT

Stud

1шт.

63

SBA030500820

PIN

Dowel

8шт.

64

SBA030501025

BALL STUD,M10 x 25 L

BALL PIN

2шт.

65

SBA012109240

STUD

Stud

2шт.

66

SBA399562030

PLATE

1шт.

67

SBA021500010

NUT

M10

2шт.

68

SBA398460040

PLUG

Blank

4шт.

69

SBA398460020

PLUG

Blank

1шт.

70

SBA322213250

COVER

Case W/Mid PTO

1шт.

71

SBA011510830

BOLT

M8 x 30, W/Mid PTO

9шт.

72

SBA064600016

PLUG

M16, W/Mid PTO

1шт.

73

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

W/Mid PTO

1шт.

74

300868

ROLL PIN,6mm OD x 36mm L, Slotted

M6 x 36

2шт.
