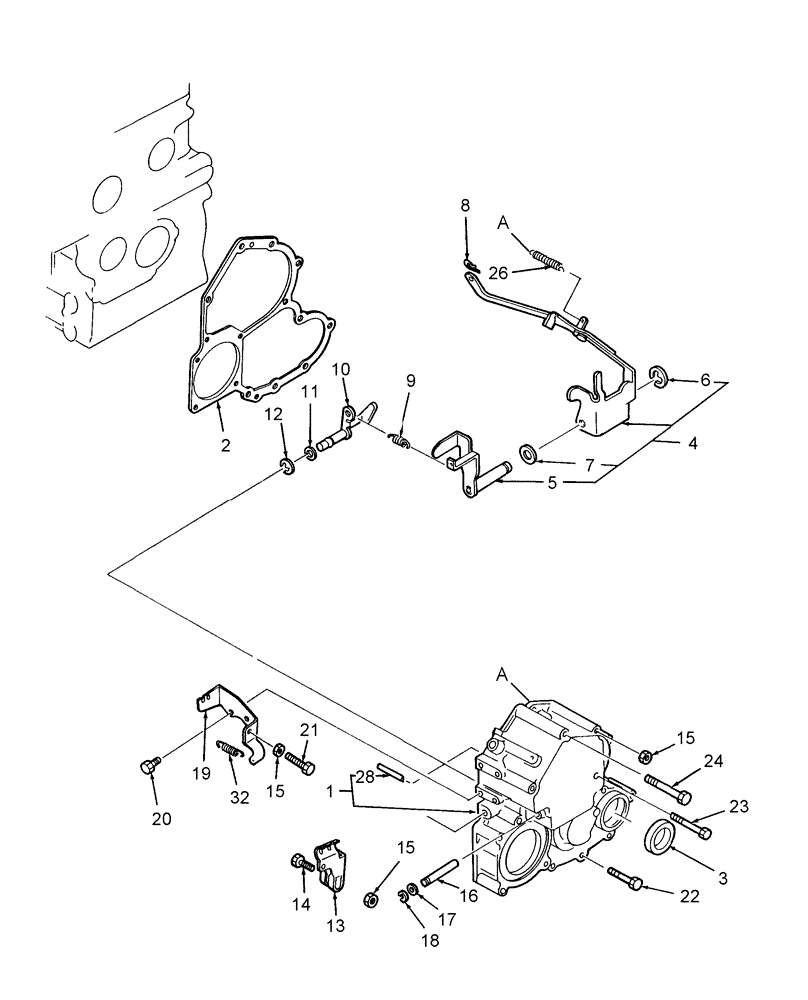

Запчасти Case IH DX21 (01.09) - TIMING GEAR CASE (01) - ENGINE

1

SBA165106550

CASE

Timing Gear Includes: Ref. 28

1шт.

2

SBA165996530

GASKET

1шт.

3

SBA198636090

OIL SEAL

Oil

1шт.

4

SBA125046260

LEVER

Governor

1шт.

5

SBA125406071

LEVER

Tension

1шт.

6

SBA036800008

SNAP RING

1шт.

7

SBA026200010

WASHER

1шт.

8

SBA031100004

SPRING

Snap

1шт.

9

SBA198217131

SPRING

1шт.

10

SBA125156170

ARM

1шт.

11

SBA052100070

O-RING

1шт.

12

SBA036800008

SNAP RING

1шт.

13

SBA125416090

LEVER

Governor

1шт.

14

43117

SCREW,Hex, M6 x 1.0 x 30mm, Cl 8.8

1шт.

15

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

3шт.

16

SBA125116131

SHAFT

Governor

1шт.

17

SBA052100030

O-RING

2шт.

18

SBA036800005

SNAP RING

1шт.

19

SBA125976100

BRACKET

1шт.

20

SBA011310616

BOLT,M6 x 1 x 16, Cl 8.8

2шт.

21

SBA010109264

BOLT

1шт.

22

SBA011310640

CAPTIVE WASHER SCREW,Hex, M6 x 40, Cl 8.8

5шт.

23

SBA011310660

BOLT

M6 x 60

3шт.

24

SBA011310680

BOLT

M6 x 80

2шт.

26

SBA198217420

SPRING

1шт.

28

SBA030300414

PIN

Spring

1шт.

32

SBA398210070

SPRING

1шт.
