Запчасти Case IH DX21 (01.03) - CAMSHAFT & OIL PUMP (01) - ENGINE

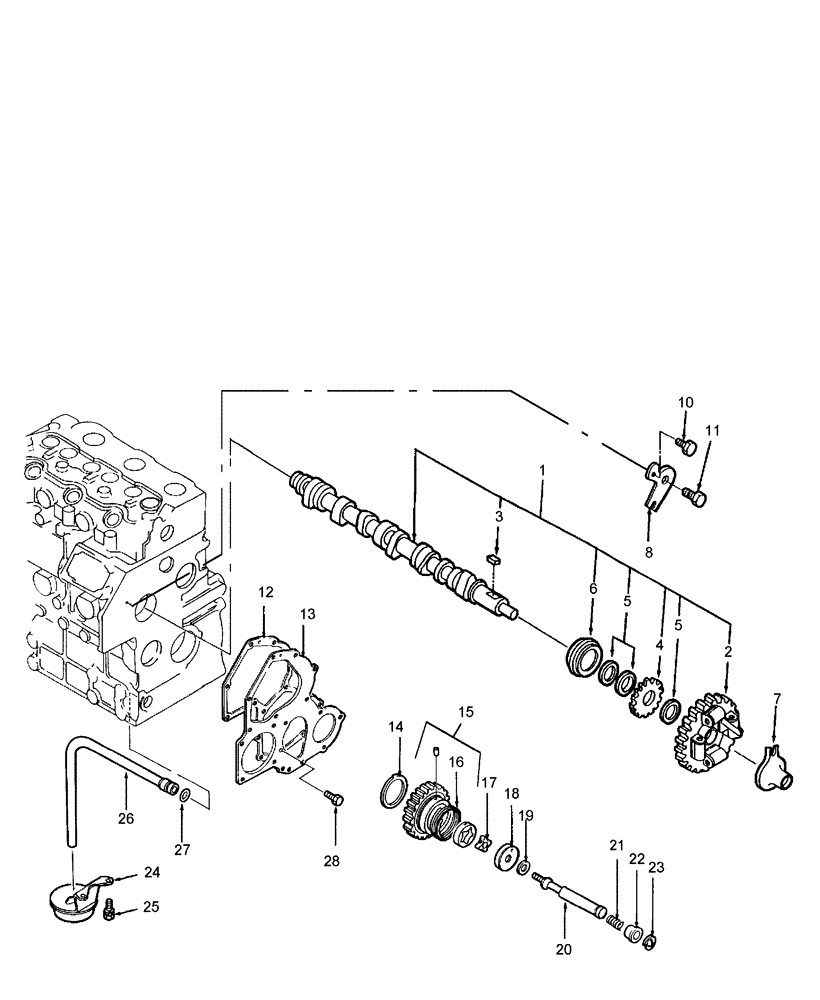

Схема запчастей Case IH DX21 - (01.03) - CAMSHAFT & OIL PUMP (01) - ENGINE
5
26
23
19
12
2
11
21
4
1
6
27
17
13
15
14
28
24
5
3
22
18
20
16
8
25
7
10

Артикул

Название

Примечание

Количество

1

SBA120026090

CAMSHAFT

Includes: Ref. 2 thru 6

1шт.

1

SBA120026090R

REMAN-CAMSHAFT

DX21 COMPACT TRACTOR (12/03-)

1шт.

1

SBA120026090C

Return Number

1шт.

2

SBA120016001

GEAR SET

2шт.

3

SBA034100508

KEY

1шт.

4

SBA120736081

GEAR

1шт.

5

SBA199216230

SPACER

3шт.

6

SBA040109059

BALL BEARING

1шт.

7

SBA125256120

SLIDE GUIDE

1шт.

8

SBA199566651

PLATE

1шт.

10

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

1шт.

11

SBA010700610

BOLT

M6 x 10

1шт.

12

SBA165996520

GASKET

1шт.

13

SBA165166520

PLATE

Front

1шт.

14

SBA199266180

THRUST WASHER

1шт.

15

SBA165026100

IDLER GEAR

1шт.

16

SBA198216821

SPRING

1шт.

17

SBA140166130

ROTOR

1шт.

18

SBA140116140

COVER

Oil Pump

1шт.

19

SBA199286340

SHIM KIT

1шт.

21

SBA198216720

SPRING

1шт.

22

SBA199236540

COLLAR

1шт.

23

SBA036800010

SNAP RING

1шт.

24

SBA140406270

FILTER

Suction

1шт.

25

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

26

SBA140986480

TUBE

Oil

1шт.

27

SBA052109076

O-RING,2.4mm Thk x 10.8mm ID

1шт.

28

SBA011310612

CAPTIVE WASHER SCREW,Hex, M6 x 12, Cl 8.8

2шт.

Выбрано товаров: 28
